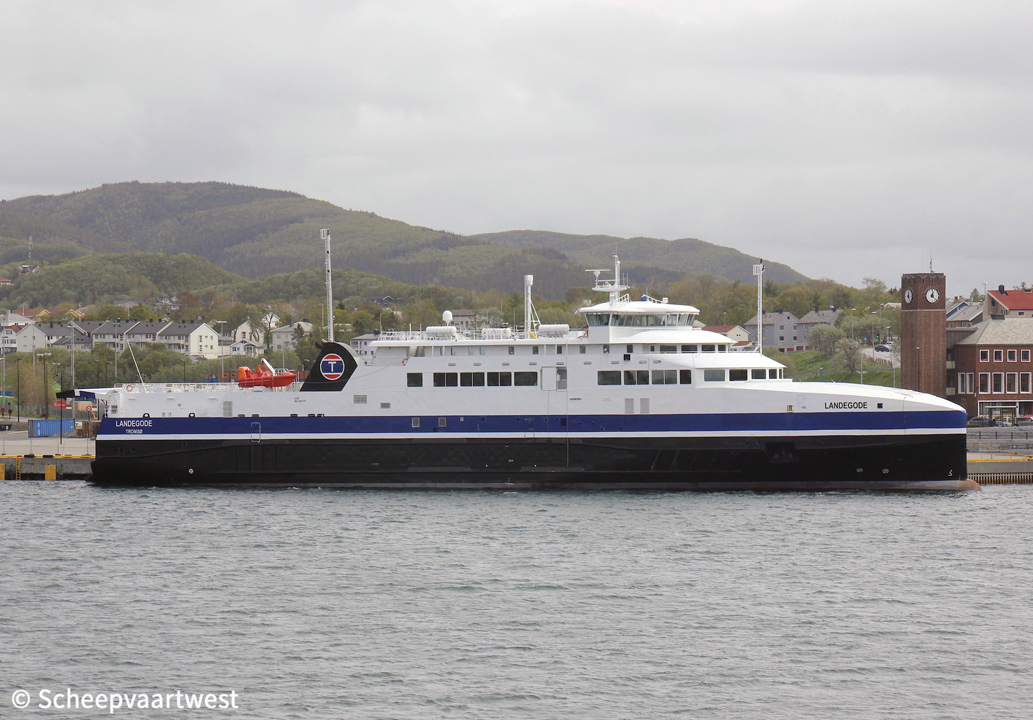

Landegode 01

Bodø, Norway 01 June 2019

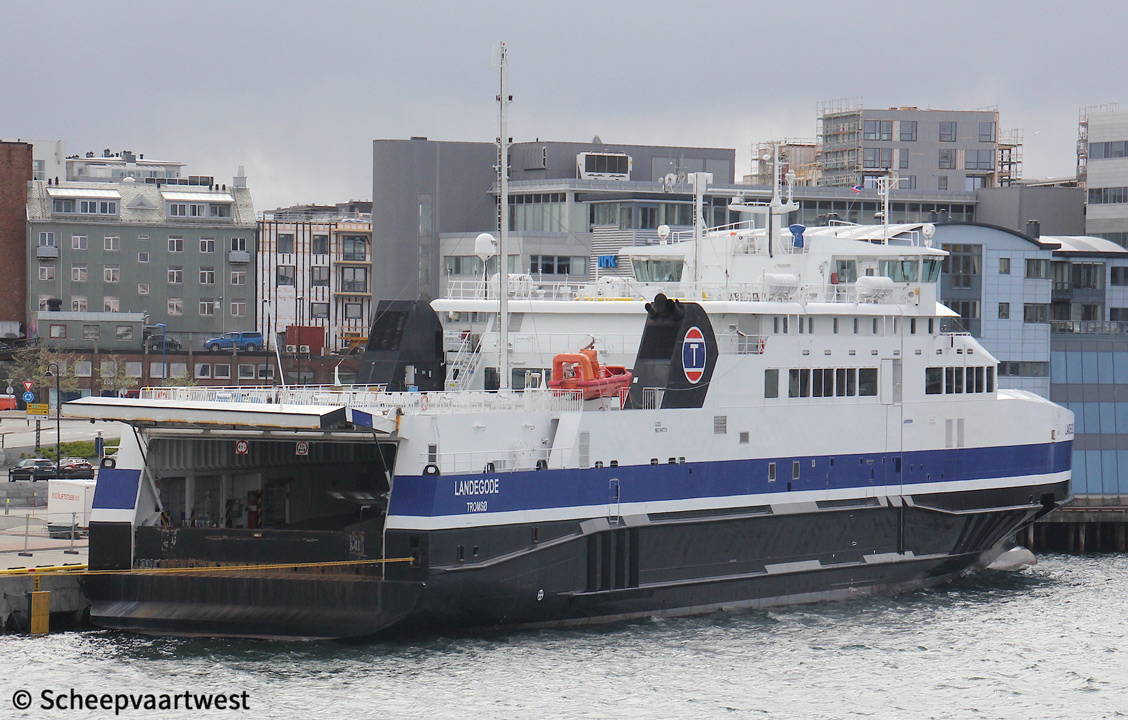

Landegode 02
Bodø, Norway 01/06/19



Name

LANDEGODE

Type

Roll-On/Roll-Off carrier - Car ferry

IMO-number

9607370

Call sign

LCES

Flag

Norway

Port of registry

Tromsø

Previous flags

5.695 t

GT

650 t

DWT

2.363 t

Length

96,00 m overall

89,98 m between perpendiculars

Breadth

17,29 m extreme

16,78 m moulded

Draught

Max: 4,05 m

Depth

5,50 m

Speed

Max: 22,0 knots

Service: 17,4 knots

Route

Bodø - Værøy - Røst - Moskenes

Built

2012

Keel laid

02/03/2011

Launch date

02/11/2011

Date of completion

05/10/2012

Builder

Gdanska Stocznia Remontowa Im. J. Pilsudskiego S.A.
Gdansk
Poland

Yard number

2410/1

Hull material

Steel

Hull type

Single hull

Main engine

1x Rolls Royce Bergen B35:40V12 G - 4 stroke 12 cylinder LNG combustion engine 5.250 kW at 750 rpm

Propellers

1x Rolls Royce controllable pitch propeller

Generators

1x MTU 16V4000 Mx0/Mx1 main LNG engine generatorset 2.240 ekW at 1.800 rpm

Emergency generator

1x AGCO Sisu 84 CTAG-4V diesel generatorset

Bow thruster

3x Rolls-Royce tunnel-thruster Typ "TT 1300 DP AUX CP"

Ro-Ro ramps

1x Forward

1x Aft

Number of decks

7

Number of passengers

390

Number of cars

Personal Car Units 1,85 x 4,30: 120
-Trailers 2,60 x 19,50: 12 (available area)
10 (for deck load capacity)
- Car/Trailer combination 12 trailers + 30 cars (available area)

Tank capacities

LNG: 150 m³

Diesel oil: 30 m³

Fresh water: 50 m³

Anti roll tank (seawater): 100 m³

Anchor equipment

Length: 436,00 m

Diameter: 42 mm

Crew size

9

Manager

Torghatten Nord As
Kirkegata 4
9008 Tromsø
Norway

Operator

Torghatten Nord AS

Registered owner

Torghatten Nord AS

Latest data adjustment

31 July 2019
