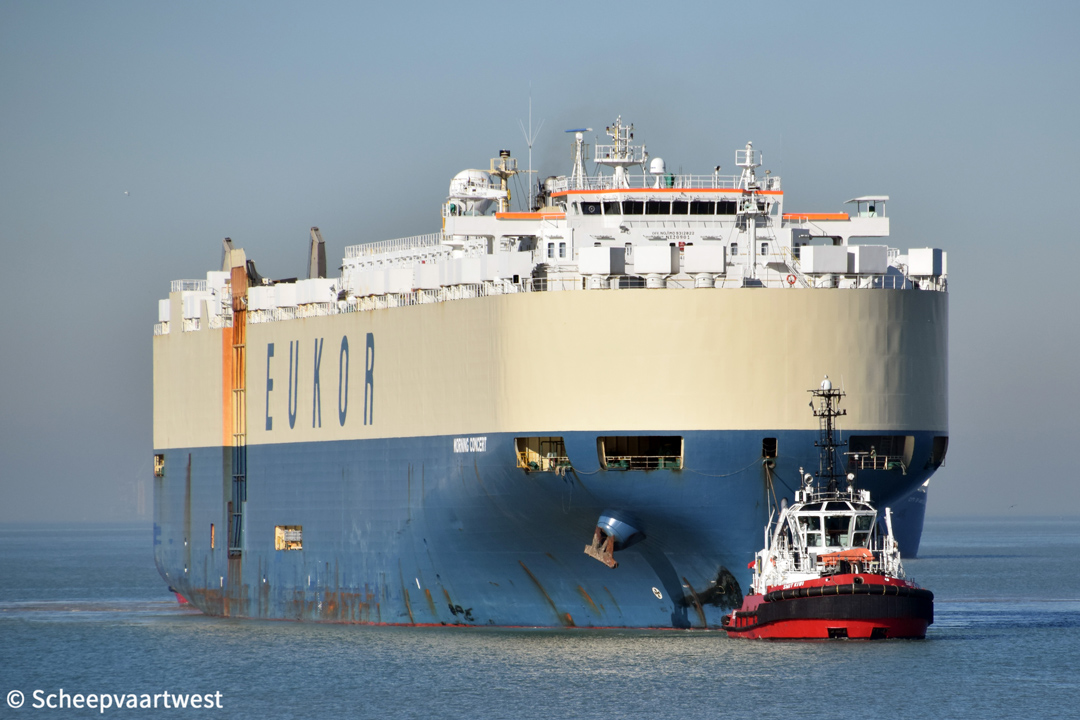

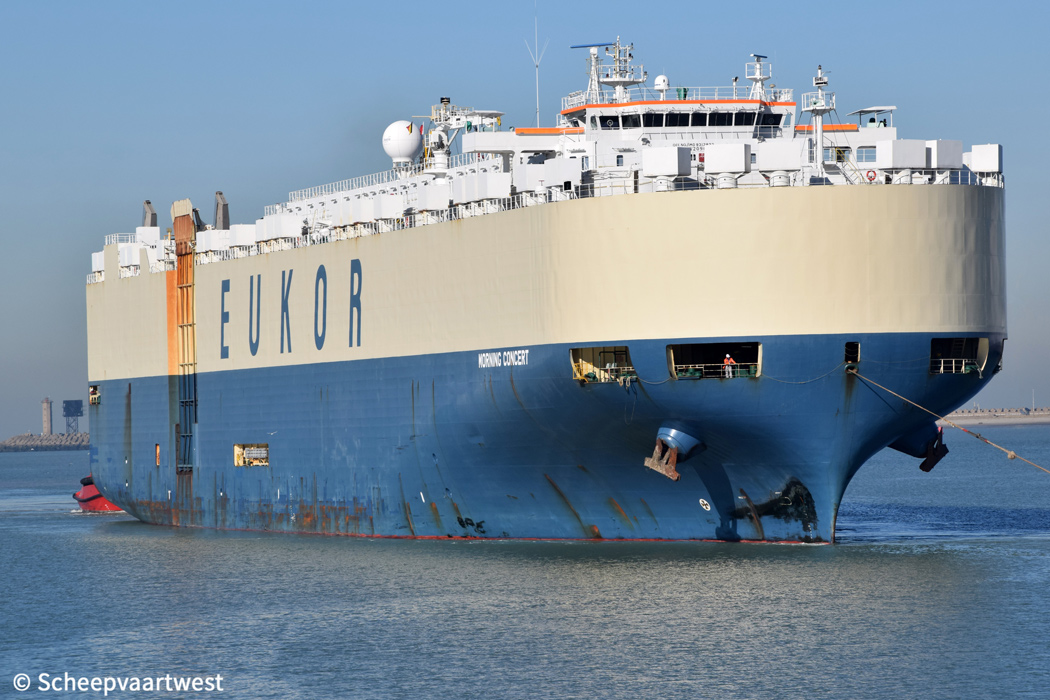

Zeebrugge 15 February 2019 |
 |
 |
|

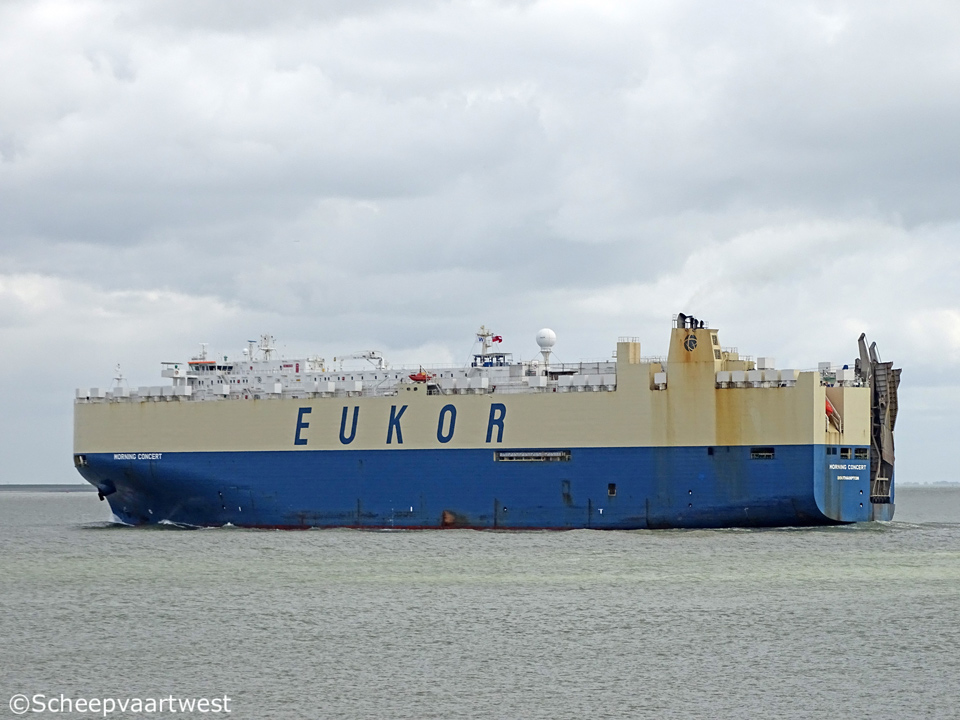

| Zeebrugge 15/02/19 | Westerschelde 05/04/18 |
|
Name |
MORNING CONCERT |
|
Type |
Roll-On/Roll-Off carrier - Vehicle carrier |
|
IMO-number |
9312822 |
|
Call sign |
9HA4860 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flag |
2009 - 2018 United Kingdom, Southampton - Call sign: MNTZ5 |
|
GT |
57.415 t |
|
DWT |
Summer: 9.306 t |
|
NT |
20.901 t |
|
Length |
199,98 m Overall 190,00 m between perpendiculars |
|
Breadth |
32,26 m |
|
Draught |
Summer: 10,01 m |
|
Reg. Dimensions L x B x D |
193,13 x 32,26 x 20,11 m |
|
Rule dimensions L x B x D |
189,20 x 32,26 x 14,30 m |
|
Freeboard |
Summer: 3.534 mm |
|
Depth |
32,64 m |
|
Speed |
20,5 knots |
|
Built |
2006 |
|
Keel laid |
21/11/2005 |
|
Launch date |
17/02/2006 |
|
Date of completion |
28/04/2006 |
|
Builder |
Hyundai Heavy Ind. Co. Ltd. |
|
Yard number |
1694 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W-Hyundai 7S60MC - 2 stroke single acting 7 cylinder 600 x 2.292 mm combustion engine 14.280 kW at 105,0 rpm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired 1x Auxiliary boiler, exhaust gas heated |
|
Generators |
3x Man 6L28/32H main diesel generatorsets each 1.475 kVA / 450 Volt |
|
Emergency generator |
1x Sisu 634 diesel generatorset |
|
Bow thruster |
1x 1.345 kW |
|
Number of cars |
6.515 |
|
Number of trucks |
412 |
|
Tank capacities |
Fuel oil: 4.130,60 m³ Fresh water: 323,80 m³ Ballast: 5.877,4 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 78 mm |
|
Crew size |
34 |
|
Manager |
Wilhelmsen Ship Management (Norway) AS |
|
Previous manager |
Wilhelmsen Lines Car Carriers Ltd., Southampton - United Kingdom |
|
Operator |
Eukor Car Carriers Inc. |
|
Registered owner |
Wilhelmsen Lines Shipowning Malta Ltd. |
|
Latest data adjustment |
20 February 2019 |
