Horizon Highway 01

Zeebrugge 26 August 2017

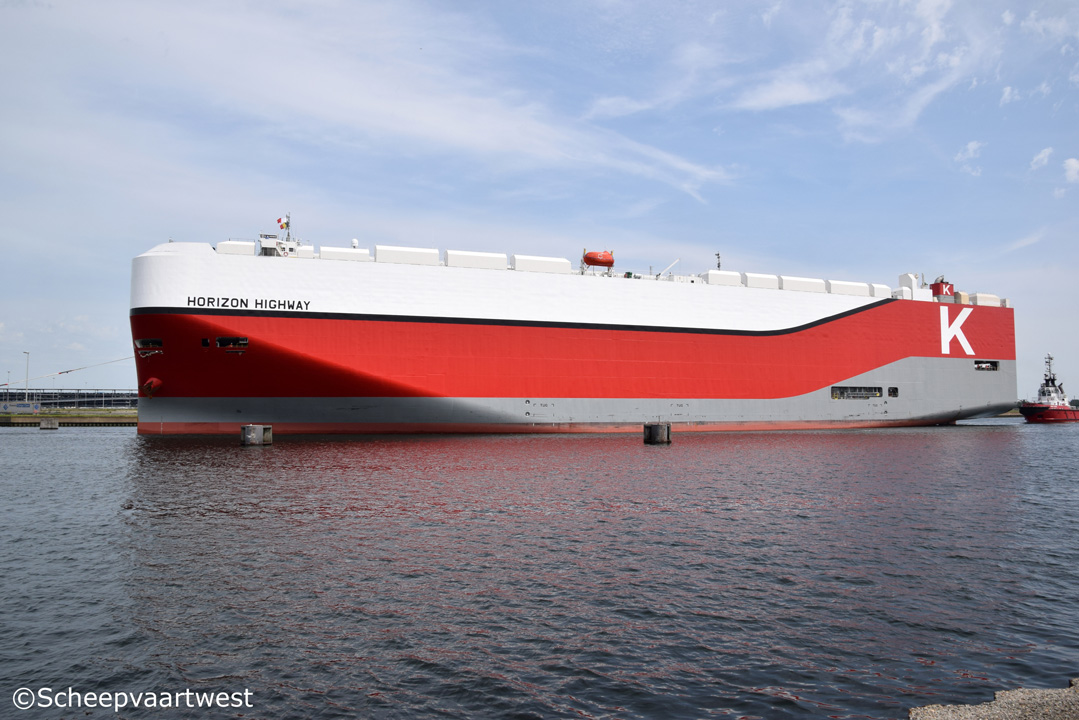

Horizon Highway 03
Zeebrugge 26/08/17



Name

HORIZON HIGHWAY

Type

Roll-On/Roll-Off carrier - Vehicle carrier

PCC - Pure Car Carrier

IMO-number

9726700

Call sign

3FVP9

Flag

Republic of Panama

Port of registry

Panama City

GT

75.036 t registered

DWT

Summer: 20.227 t

NT

23.431 t registered

Length

199,96 m overall

Breadth

38,00 m moulded

Draught

Summer: 10,23 m

Moulded L x B x D

196,00 x 38,00 x 14,65 m

Registered L x B x D

196,00 x 38,00 x 21,77 m

Freeboard

Summer: 4.465 mm

Depth

14,65 m moulded

Speed

Max.: 21,5 knots

Built

2016

Keel laid

23.06.2014

Launch date

06.05.2016

Date of completion

13.10.2016

Builder

Shin Kurushima Dockyard Co., Ltd.
Japan

Yard number

5876

Hull material

Steel

Main engine

1x Mitsubishi HI Engine 7UEC60LSE-eco-A2 - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 13.200 kW at 104,0 rpm

Manufacturer :Kobe Diesel Co., Ltd.

Propeller shaft

1x Oil lubrication with monitoring device

Diameter: 640 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 7,9 bar

Evaporation: 4,43 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

3x Main diesel generatorsets total 3.563 kVA / 2.850 kW

Emergency generator

1x Diesel generatorset 1.188 kVA / 950 kW

Number of cars

7.539

Number of car decks

12

Tank capacities

Fuel oil: 3.042,72 m³

Fresh water: 806,58 m³

Crew

27

Manager

Taiyo Nippon Kisen Co., Ltd.

Operator

K-Line - Kawasaki Kisen Kaisha Ltd.

Japan

Registered owner

Florence Navigation S.A.

Latest data adjustment

29 September 2019
