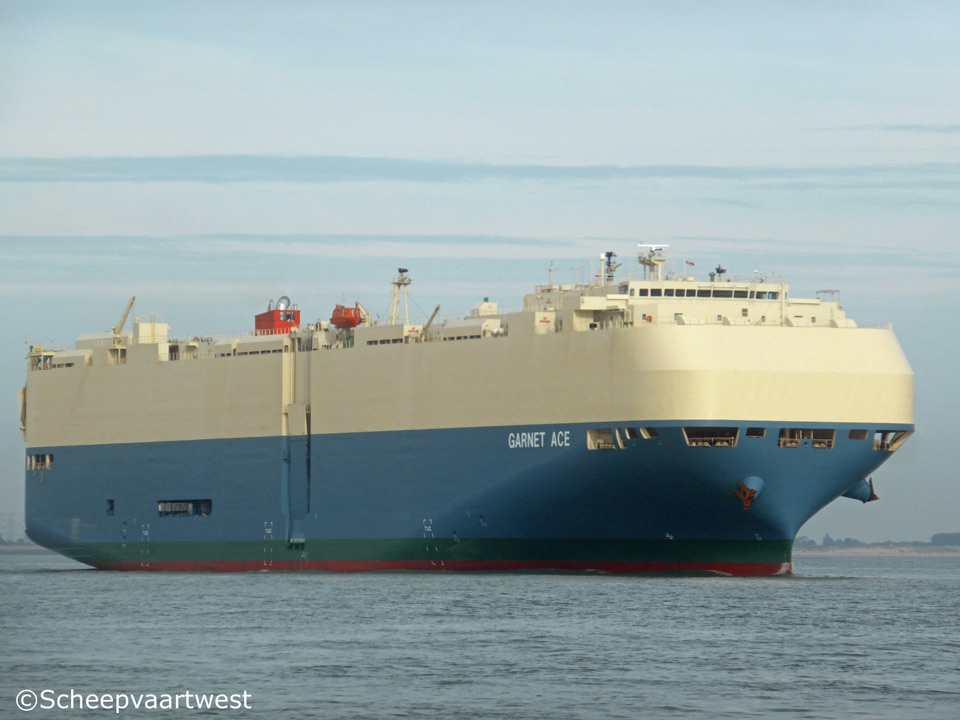

Westerschelde 10 August 2015 |
|
Name |
GARNET ACE |
|
Type |
Roll-On/Roll-Off carrier - Vehicle carrier |
|
IMO-number |
9476769 |
|
Call sign |
3FTC4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
60.148 |
|
DWT |
Summer: 18.740 t |
|
NT |
18.573 |
|
Length |
199,99 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 9,72 m |
|
Moulded L x B x D |
192,00 x 32,26 x 14,70 m |
|
Registered L x B x D |
194,31 x 32,26 x 21,25 m |
|
Freeboard |
Summer: 5.013 mm |
|
Depth |
14,70 m moulded |
|
Speed |
Max.: 22,4 knots |
|
Built |
2008 |
|
Keel laid |
12/12/2008 |
|
Launch date |
10/04/2010 |
|
Date of completion |
08/07/2010 |
|
Builder |
Mitsubishi Heavy Industries, Ltd. Nagasaki Shipyard & Machinery Works Nagasaki Japan |
|
Yard number |
2257 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi 7UEC60LSII - 2 stroke 7 cylinder 600 x 2.300 mm combustion engine 14.315 kW at 105,0 rpm Manufacturer: Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 590 mm |
|
Propellers |
1x Fixed keyless propeller |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 3,92 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Generatorsets total 4.250 kVA |
|
Number of cars |
6.340 standard passenger cars |
|
Ramp |
100 t |
|
Max. deck height |
5,10 m |
|
Tank capacities |
Fuel oil: 2.889 m³ Fresh water: 567 m³ Water ballast: 9.261 m³ |
|
ISM & commercial manager |
Excel Marine Co., Ltd. 6th Floor, Seamark Building, 3-2-1, Kashiiteriha, Higashi-ku, Fukuoka-shi Fukuoka Prefecture, 813-0017 Japan |
|
Registered owner |
Lucia Navigation (Panama) S.A. c/o Excel Marine Co., Ltd. 6th Floor, Seamark Building, 3-2-1, Kashiiteriha, Higashi-ku, Fukuoka-shi Fukuoka Prefecture, 813-0017 Japan |
|
Previous owner |
Orchard Maritime (Panama) S.A. |
|
Latest data adjustment |
24 April 2025 |
