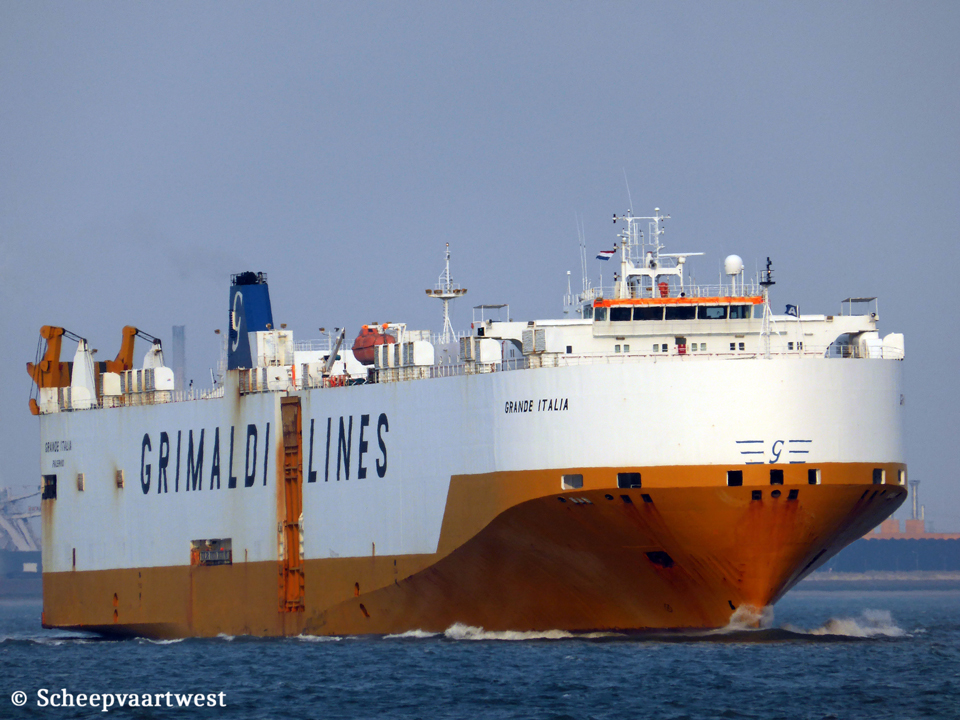

Grande Italia 01

Westerschelde 25 April 2016



Name

GRANDE ITALIA

Type

Roll-On/Roll-Off Vehicle carrier

IMO-number

9227912

Call sign

IBTF

Flag

Italy

Port of registry

Palermo

GT

37.726 t

DWT

Summer: 12.594 t

Length

176,50 m overall

165,00 m between perpendiculars

Breadth

31,32 m

Draught

8,77 m

Speed

Service: 20,1 knots

Built

2001

Keel laid

23.02.2001

Launch date

21.07.2001

Date of completion

27.10.2001

Builder

Uljanik
Pula
Croatia

Yard number

438

Hull material

Steel

Main engine power

MAN B&W - 2 stroke single acting 7 cylinder 500 x 1.910 mm diesel engine 11.060 kW - 15.037 hp at 127,0 rpm

Builder: ‘Uljanik’ Strojogradnja dd - Croatia

Propellers

1x Controllable pitch propeller - aft at 127,0 rpm

Number of cars

4.500

Ramp

Max. width: 6,50 m

Max. height: 4,80 m

Capacity: 100 t

Manager

Grimaldi Group

Operator

Grimaldi Lines

Owner

Atlantica Di Navigazione
Palermo
Italy

Latest data adjustment

20 April 2016
