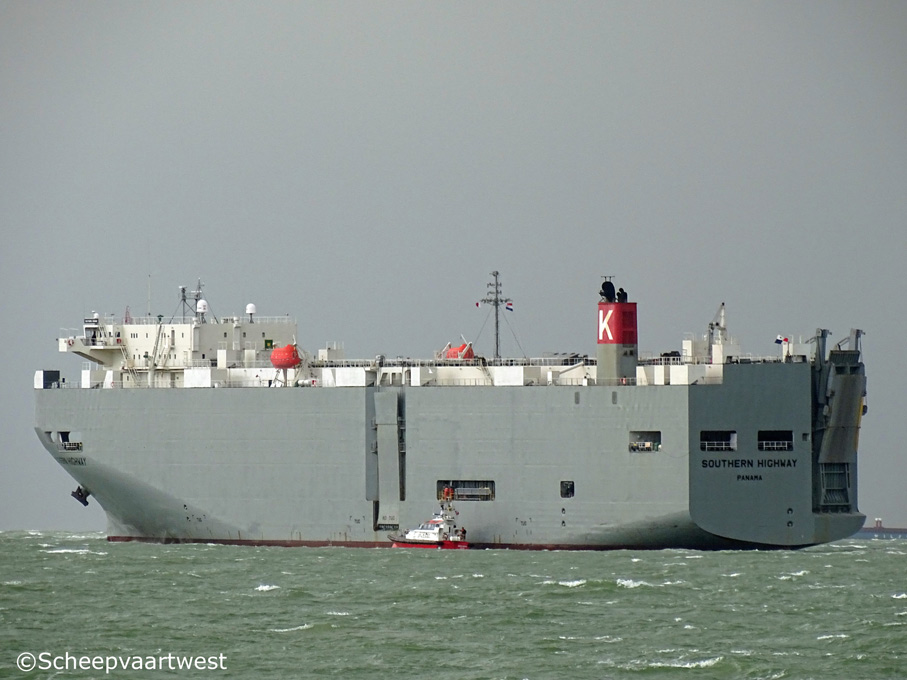

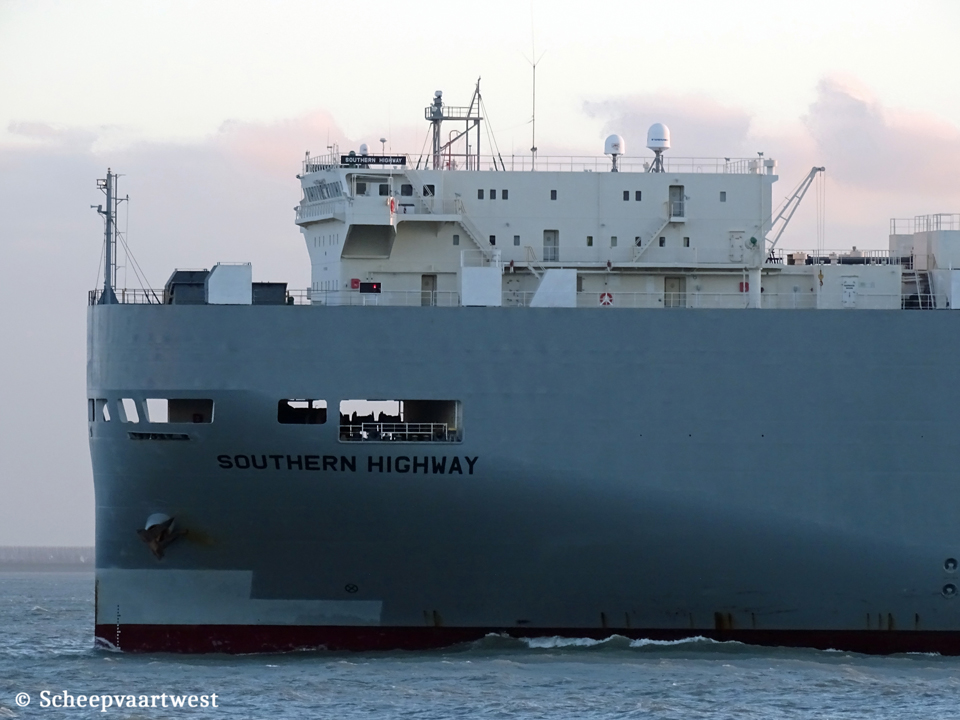

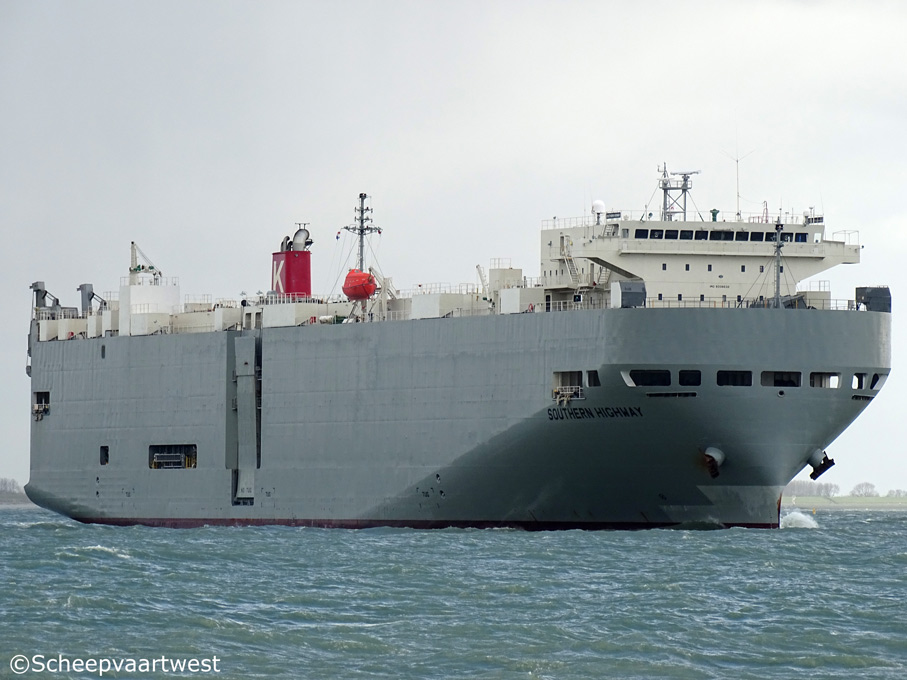

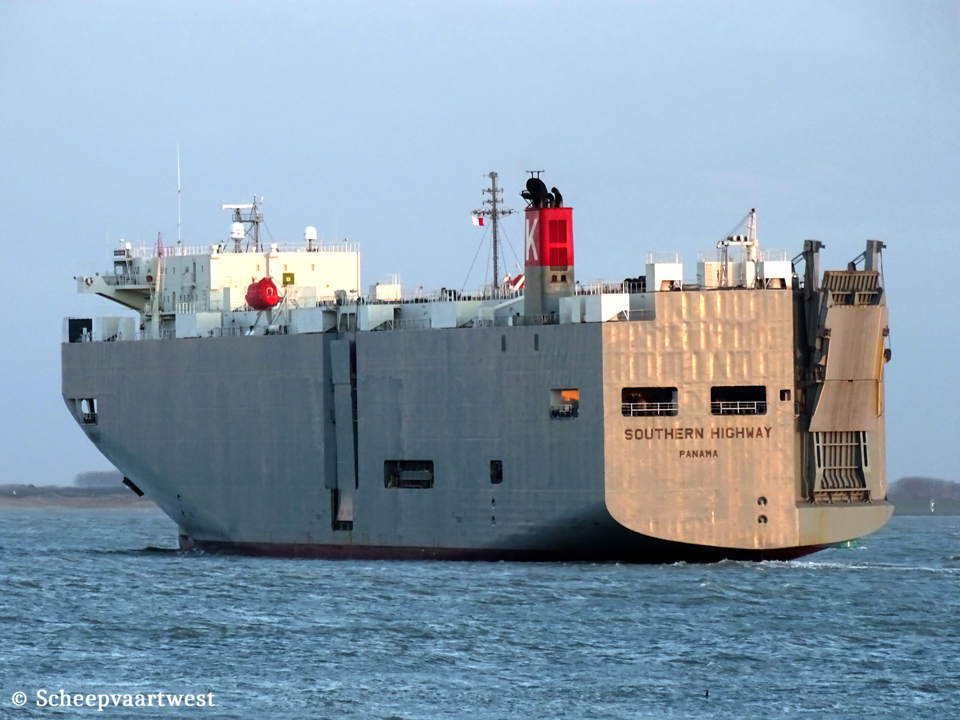

Westerschelde 03 February 2016 |
 |
 |
 |
||
| Westerschelde 03/02/16 | Westerschelde 30/01/16 | Westerschelde 30/01/16 | ||
|
Name |
SOUTHERN HIGHWAY |
|
Type |
Roll-On/Roll-Off vehicle carriers |
|
IMO-number |
9338632 |
|
Call sign |
7KCN |
|
Flag |
Japan |
|
Port of registry |
Kobe |
|
Previous fags |
2008 - 2018 Republic of Panama, Panama City- Call sign: 3EOJ8 |
|
GT |
39.422 t registered |
|
DWT |
Summer: 12.892 t |
|
NT |
11.827 t registered |
|
Length |
188,03 m overall |
|
Breadth |
28,20 m moulded |
|
Draught |
Summer: 8,52 m |
|
Moulded L x B x D |
183,70 x 28,20 x 13,61 m |
|
Registered L x Bx D |
183,70 x 28,20 x 19,81 m |
|
Freeboard |
5.129 mm |
|
Depth |
13,61 m moulded |
|
Speed |
Max.: 21,6 knots Service: 18,0 knots |
|
Built |
2008 |
|
Keel laid |
16/05/2007 |
|
Launch date |
15/10/2007 |
|
Date of completion |
26/01/2008 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. Onishi Japan |
|
Yard number |
5500 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi 6UEC60LA - 2 stroke single acting 8 cylinder 500 x 1.950 mm combustion engine 11.000 kW / 14.955 hp at 124,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 510 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 2.,89 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 750 kW |
|
Bow thruster |
1x 920 kW |
|
Number of cars |
3.893 |
|
Tank capacities |
Fuel oil: 2.899 m³ Fresh water: 414 m³ Water ballast: 6.387 m³ |
|
Manager |
"K" Line RoRo Bulk Ship Management Co., Ltd. |
|
Operator |
K-Line - Kawasaki Kisen Kaisha, Ltd. |
|
Registered owner |
Kawasaki Kisen Kaisha, Ltd. |
|
Latest data adjustment |
20 September 2023 |
