Eurocargo Cagliari 01

Barcelona, Spain 01 September 2015

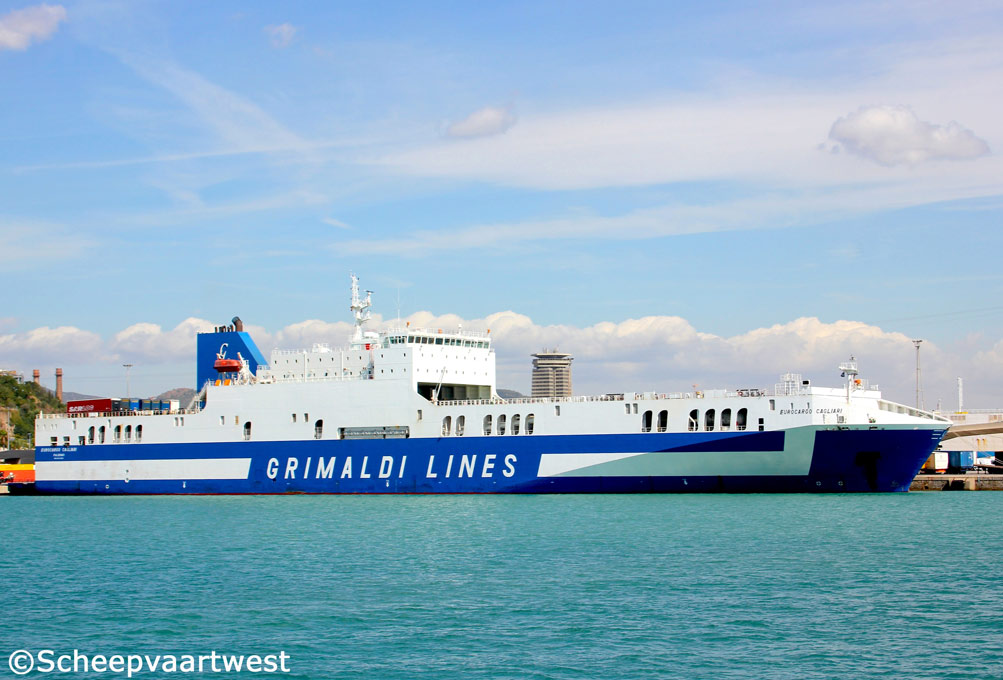

Eurocargo Cagliari 02
Barcelona, Spain 01/09/15



Name

EUROCARGO CAGLIARI

Type

Roll-On/Roll-Off carrier - Ferry

IMO-number

9471068

Call sign

ICMR

Flag

Italy

Port of registry

Palermo

GT

32.647 t

DWT

Summer: 10.780 t

NT

9.794 t

Displacement

23.071 t

Length

200,63 m overall

190,02 m between perpendiculars

Breadth

26,50 m extreme

Draught

Max.: 7,50 m

Lanemetres

3.810 m

Freeboard

1.900 mm

Depth

9,40 m

Speed

Max.: 22,3 knots

Service: 14,8 knots

Built

2012

Date of completion

02.05.2012

Builder

Hyundai Mipo Dockyard
Ulsan
South Korea

Yard number

8053

Hull material

Steel

Hull type

Single hull

Main engine

1x MAN-B&W-HHI 9L60MC-C7 - 2 stroke 9 cylinder 600 x 2.022 mm diesel engine 20.070 kW / 27.287 bhp at 123,0 rpm

Propellers

1x Controllable pitch propeller

Bow thruster

2x 1.100 kW, forward

1x 880 kW, aft

Generators

4x Diesel generatorsets - 2.037 kVA

Emergency generator

1x Diesel generatorset 550 kVA

Number of cars

1.820

Number of passengers

12

Number of beds

12

Manager

Inarme (Grimaldi Group)
Napoli
Italy

Operator

Grimaldi Lines

Owner

Atlantica di Navigazione S.P.A.
Grimaldi Group

Via Marchese Campodisola 13

80133 Naples NA

Italy

Latest data adjustment

17 October 2015
