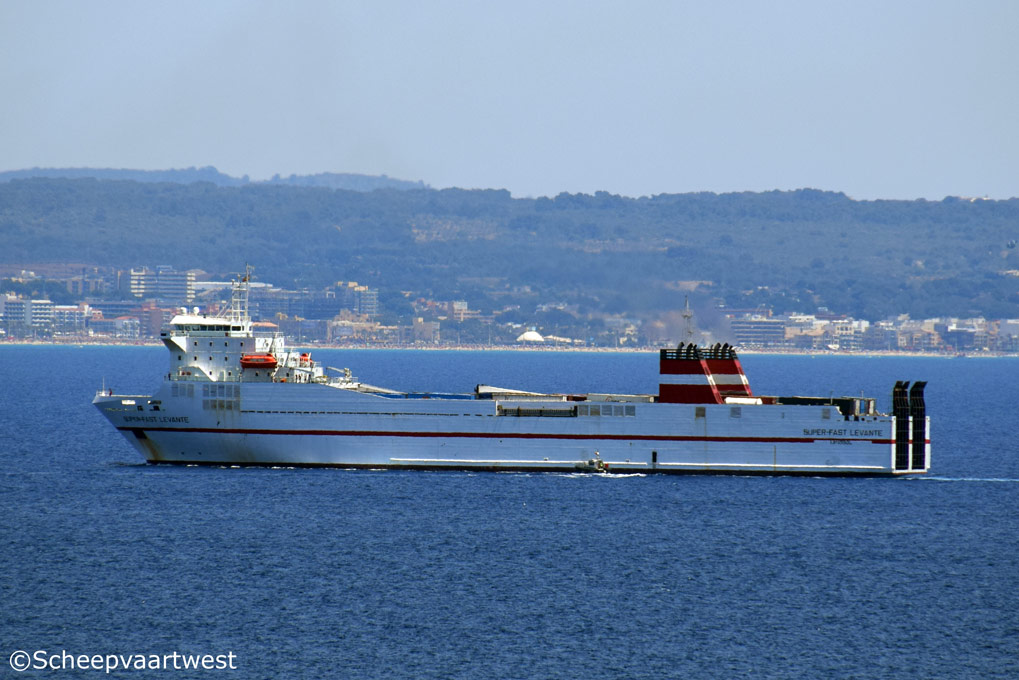

Super Fast Levante 02

Palma De Mallorca 09 June 2016

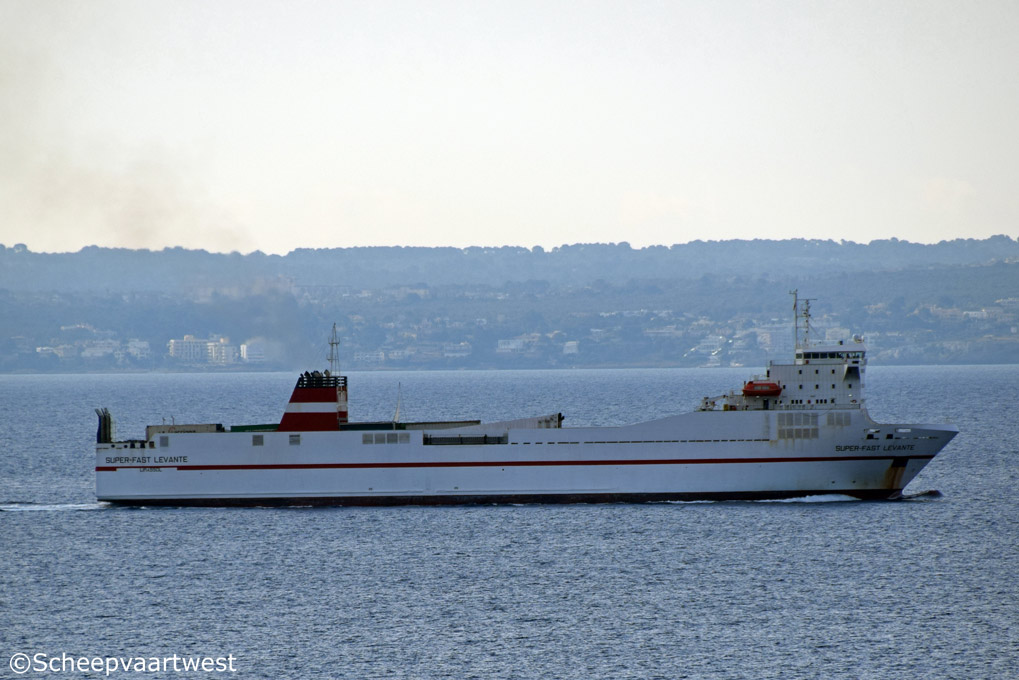

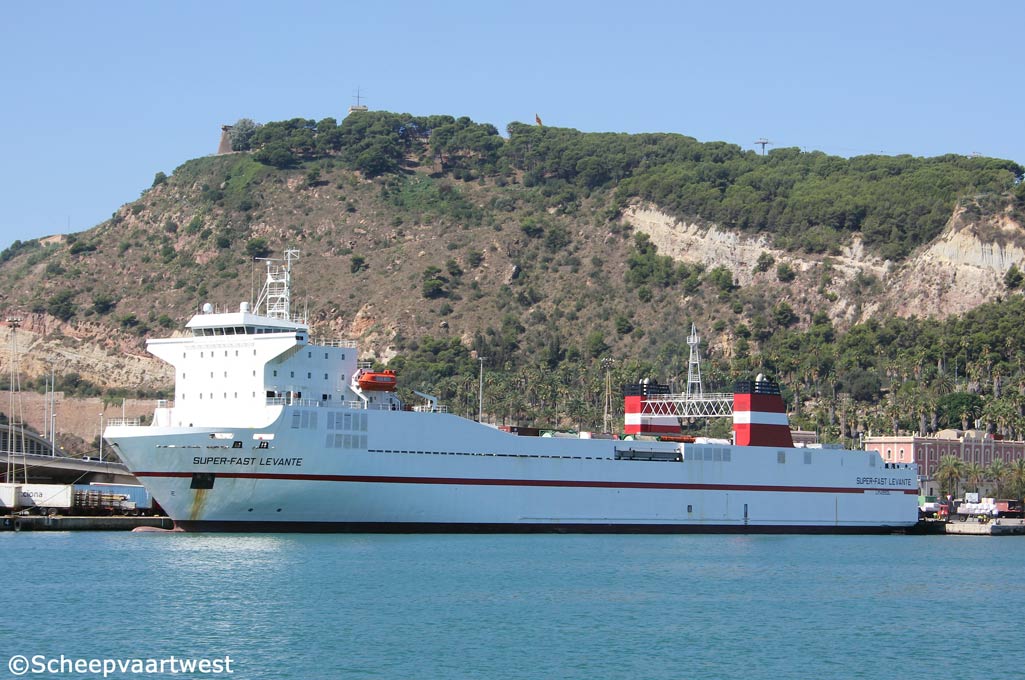

Super Fast Levante 03   Super Fast Levante 01
Palma De Mallorca 11/06/16 Barcelona, Spain 29/08/15



Name

SUPER-FAST LEVANTE

Previous names

2001 - 2005 Superfast Levante

Type

Roll-On/Roll-Off carrier - Ferry

IMO-number

9204362

Call sign

5BCB4

Flag

Cyprus

Port of registry

Limassol

Previous flags

03.2001 - 2012 Spain, Santa Cruz de Tenerife - Call sign: EBRF

GT

17.391 t

DWT

Summer: 7.200 t

NT

5.252 t

Length

157,96 m overall

141,57 m between perpendiculars

Breadth

25,20 m

Draught

6,50 m

Lanemetres

1.905

Freeboard

1.212 mm

Depth

16,60 m

Speed

Service: 22,0 knots

Route

2001 - 2012 Cadiz - Canary Islands

Built

2001

Launch date

18.08.2000

Date of completion

14.03.2001

Delivery date

29.03.2001

Builder

UNV - Union Naval Valencia
Valencia
Spain

Yard number

280

Hull material

Steel

Watertight compartments

12

Continuous decks

7

Main engine

4x Wärtsilä 6L46C - 4 stroke 6 cylinder 460 x 580 mm diesel engines total 34.268 bhp / 25.204 kW at 500 rpm

Built: 2000

Builder: Wärtsilä NSD Iberica, Bermeo - Spain

Propellers

2x Screw propeller controllable pitch - aft at 180 rpm

Boilers

1x CHO Aalborg Industries 28,70 m² - 7,0 bar
4x CHM Aalborg 27,00 m² - 9,0 bar

Electric installations

Power voltage: 380 V

Lighting voltage: 220 V

Frequency: 50 Hz

Shaft generator

2x- 2.000 kVA - 1.600 kW

Generators

2x Main diesel generatorsets each 1.775 kVA - 1.420 kW - 2.018 hp

Emergency generator

1x Diesel generatorset 200 kVA - 160 kW - 520 hp

Bow thruster

2

Number of passengers

12

Number of beds

12

Number of cars

117

Number of trailers

102

Tank capacities

Fuel oil: 1.369 m³

Manager

Acciona Trasmediterranea S.A
Madrid
Spain

Operator

Trasmediterranea

Owner

2001 - 2013 Trasmediterranea

2013 - 2014 Maritime Global Operator Ltd.

2014 Schembri Agencia SA

Registered owner

Maritime Global Operator Ltd.

Latest data adjustment

04 October 2015
