Westerschelde 24 May 2015 |
 |
| Westerschelde 24/05/15 |
|
Name |

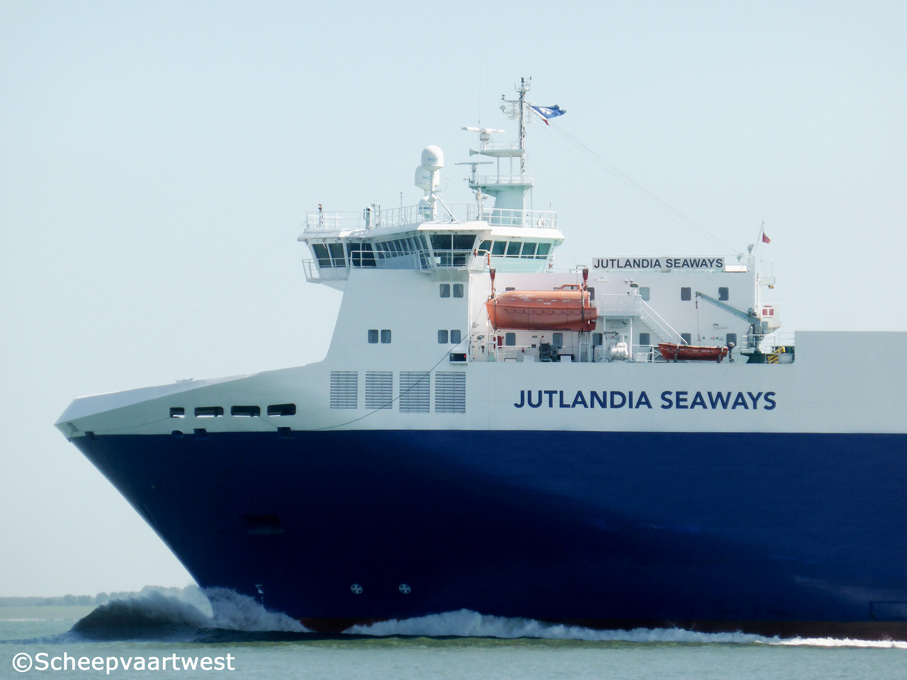

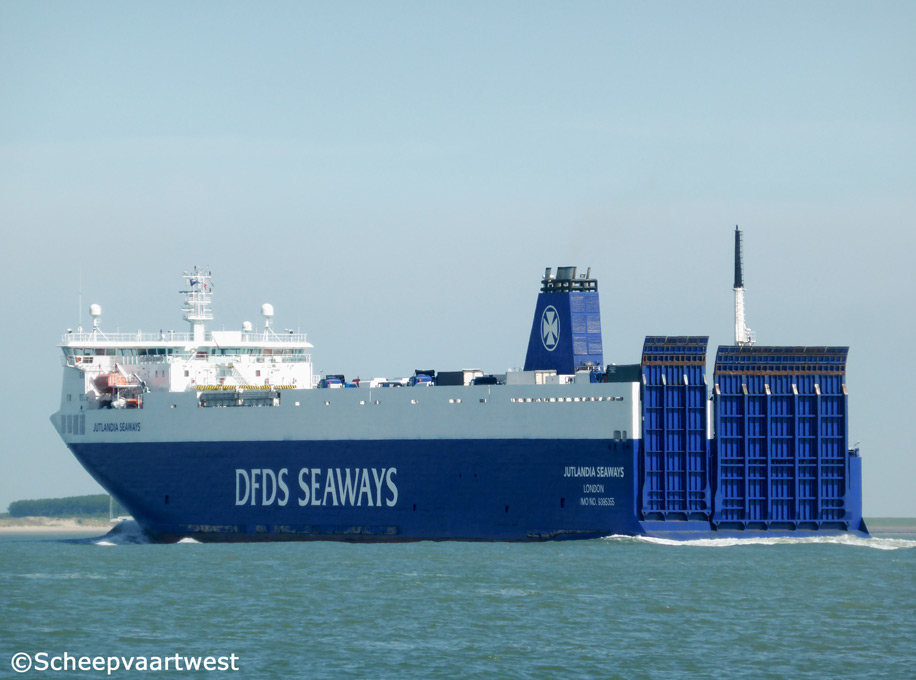

JUTLANDIA SEAWAYS |
|
Previous names |
2010 - 07/2011 Tor Jutlandia |
|
Type |
Roll-On/Roll-Off carrier - Vehicle carrier Ro-Ro trailer carrier vessel, with four cargo decks and two ramps located aft. Fitted for containers with twin bow thrusters and stabilisation system. Access to all deck from the ramps |
|
IMO-number |
9395355 |
|
Call sign |
2CSU8 |
|
Flag |
United Kingdom |
|
Port of registry |
London |
|
GT |
25.609 t registered |
|
DWT |
Summer: 11.702 t |
|
NT |
7.682 t registered |
|
Number of 20ft containers |
Top deck: 216 Upper deck: 108 Total: 324 |
|
Reefer plug |
Top deck: 20 Upper deck: 35 Main deck: 20 Toyal: 75 |
|
Length |
187,10 m overall 196,80 m between perpendiculars |
|
Breadth |
26,50 m |
|
Draught |
6,90 m |
|
Lane metres |
Top deck: 726 m Upper deck: 1.085 m Main deck: 1.043 m Tank top: 469 m Total: 3.322 |
|
Air draft |
Max.: 34,70 m |
|
Freeboard |
2.018 mm |
|
Depth |
15,60 m |
|
Speed |
20,0 knots |
|
Built |
2010 |
|
Keel laid |
15/10/2008 |
|
Launch date |
01/02/2009 |
|
Delivery date |
14/01/2010 |
|
Builder |
CSC Jinling Shipyard Nanjing China |
|
Yard number |
0405 |
|
Hull material |
High strength steel |
|
Hull type |
Single hull double bottom |
|
Watertight bulkheads |
7 |
|
Main engine |
2x MAN-B&W 8L48/60 - 4 stroke single acting 8 cylinder 480 x 600 mm combustion engines each 9.600 kW at 500 rpm Total 19.200 kW / 26.104 hp Builder: MAN B&W Diesel AG, Augsburg - Germany |
|
Propellers |
2x Controllable pitch propeller - aft at 130,0 rpm |
|
Boilers |
1x Auxiliary boiler Mission OS 1x Exhaust gas economizer |
|
Shaft generator |
2x 1.200 kW each |
|
Generators |
2x Main diesel generatorsets each 804 kW |
|
Bow thruster |
2x 1.100 kW |
|
Hold Capacity |
36.124,9 m³ |
|
Number of decks |
4 |
|
Stern ramps |
S-Side Size: 19,00 x 14,90 m W 14,20 m x H 5,90 m P-Side Size: 19,00x 7,30 m W 6,53 m x H 5,50 m Load: St 200 t (uniform) |
|
Area |
Top deck: 2.330 m² Upper deck: 3.390 m² Main deck: 3.300 m² Tank top: 1.524 m² |
|
Car capacity |
600 |
|
Trailer capacity |
230 |
|
Max. permitted loads |
Top deck: 3,0 t/m² Upper deck: 3,0 t/m² Main deck: 6,0 t/m² Tank top: 6,0 t/m² |
|
Number of tanks |
Ballast: 31 Fuel oil: 12 Lubricating oil: 6 Fresh water: 4 Diesel oil: 4 Waste water: 3 Sludge: 2 Chain: 1 Slop: 1 |
|
Tank capacities 100% |
Diesel oil: 110 m³ Freshwater: 226,5 m³ Fuel oil: 11.33,3 m³ Lube oil: 130,7 m³ Tank ballast: 6.067,9 m³ |
|
Crew |
17 |
|
Passengers capacity |
12 persons |
|
Manager |
Ellingsen OSM Ship Management AB Vastra Hamngatan 19 411 17 Goteborg Sweden |
|
Operator |
DFDS Seaways A/S Sundkrogsgade 11 DK-2100 Copenhagen Ø Denmark |
|
Registered owner |
Snowdon Leasing Company Limited London United kingdom |
|
Previous names & operators |
2009 - 2010 Tor Jutlandia - DFDS Tor Line 2010 - 2011 Tor Jutlandia - DFDS Seaways |
|
Renamed |
04/2020 Jutlandia Sea Sweden, Stockholm - Call sign: SBZE Owner: Jutlandia Sea AB Operator: Stena Line |
|
Latest data adjustment |
07 January 2024 |
