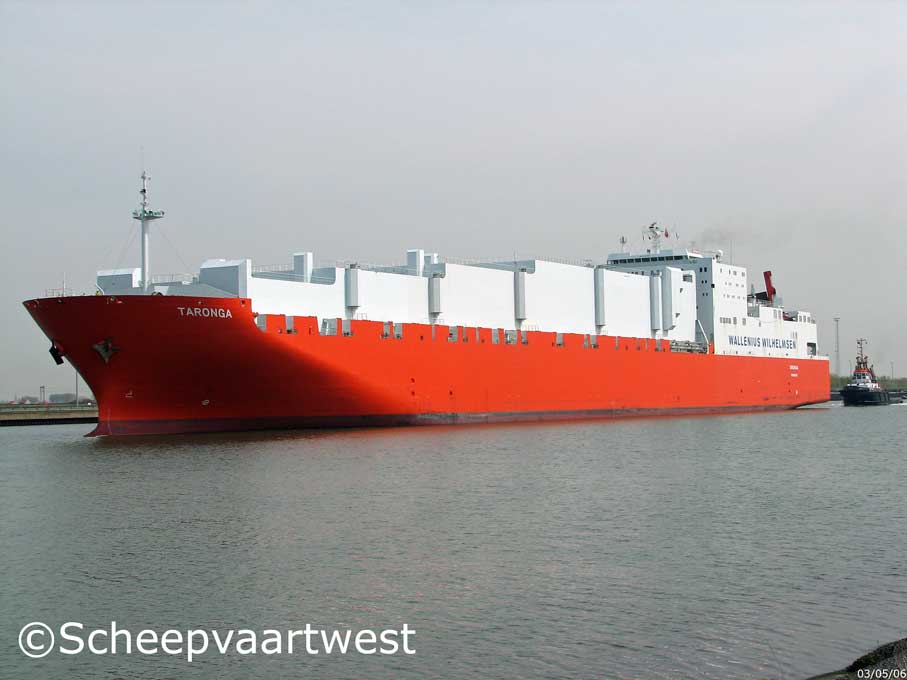

| Zeebrugge 03 May 2006 |
 |
 |
|

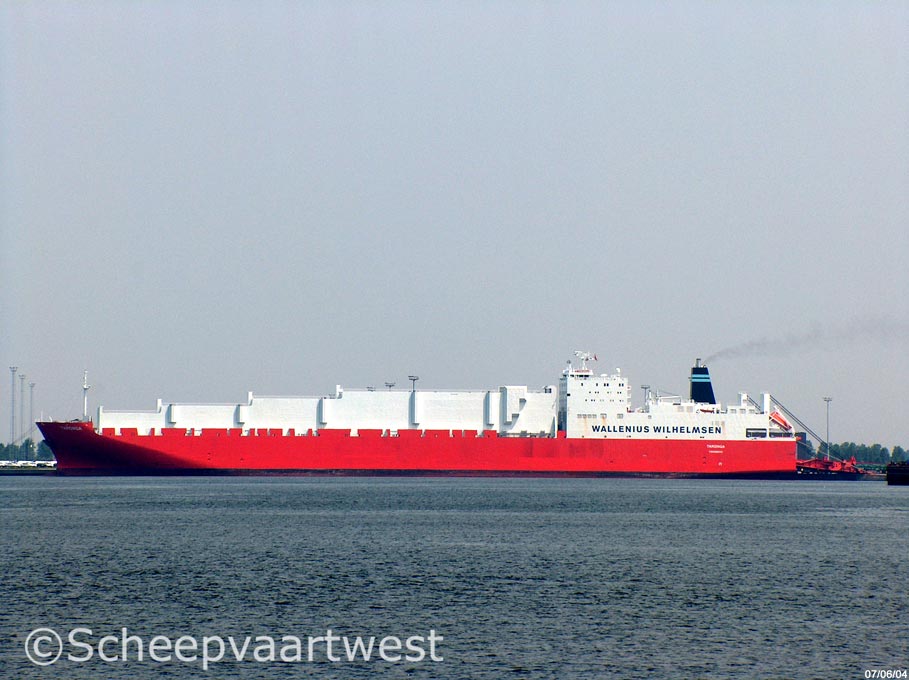

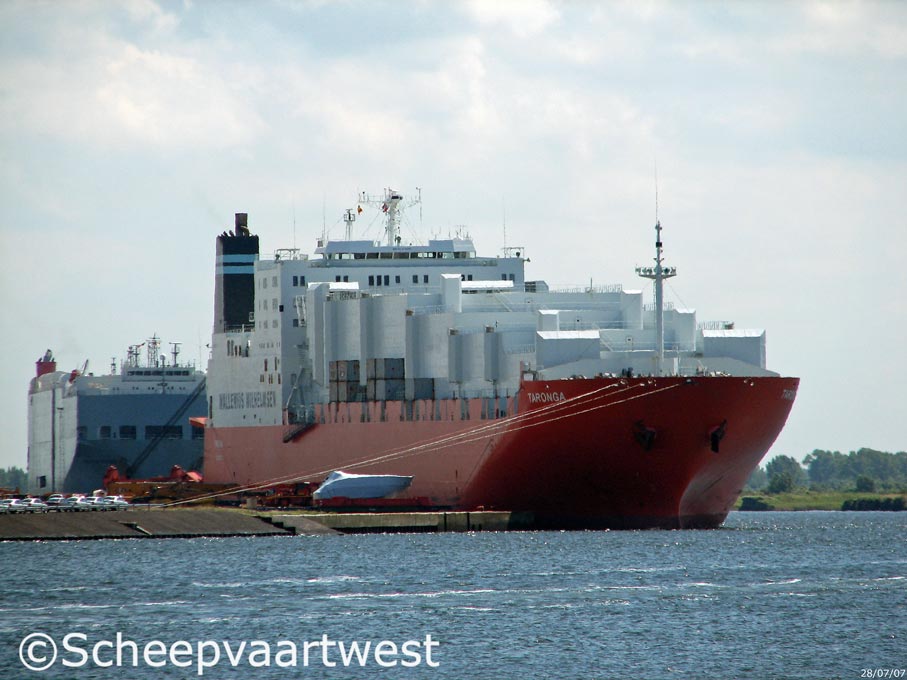

| Zeebrugge 28/07/07 | Zeebrugge 07/06/04 |
|
Name |
TARONGA |
|
Type |
Roll-On/Roll-Off Vehicles Carrier |
|
IMO-number |
9121273 |
|
Call sign |
LACU5 |
|
Flag |
Norway |
|
Port of registry |
Tønsberg |
|
GT |
72.708 t |
|
DWT |
48.988 t |
|
NT |
26.188 t |
|
Length |
264,60 m overall |
|
Breadth |
32,26 m overall |
|
Draught |
Summer: 12,255 m |
|
Air draft |
41,10 m |
|
Freeboard |
9.750 mm |
|
Depth |
22,00 m to upperdeck |
|
Speed |
20,6 knots |
|
Built |
1996 |
|
Keel laid |
25.05.1996 |
|
Launch |
28.09.1996 |
|
Date of completion |
01.12.1996 |
|
Builder |
Mitsubishi Heavy Industries Ltd. |
|
Yard number |
2109 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi type 7UEC85LSC diesel engine with an output of 25.000 kW at 95,4 rpm |
|
Propeller |
1x Fixed 5 bladed solid mono block, keyless propeller of nickel aluminium bronze |
|
Boilers |
Exhaust gas water tube - Mitsubishi |
|
Generators |
5x MAN B&W Holeby main diesel generatorsets installed onboard with a total effect 7.380 kW. Of these 5 generators 2 are of type 6L28/32H and 3 of type 8L28/32H |
|
Emergency generator |
1x MAN B&W D2866TE diesel generatorset with an output of 180 KW |
|
Bow thruster |
1x CT 16H-2P - 1.700 kW |
|
Stern thruster |
1x CT 16H-2P - 1.700 kW |
|
Winches |
Forward deck: 3x Aquamaster Rauma mooring winches type MW 200EA with a break holding capacity of 53 t and 2x Aquamaster Rauma combined mooring and windlass winches with breaking power 53 ts and 252 t respectably Amidships: 1x winch type MW120 EA with breaking power 53 t and aft mooring deck is equipped with 3 mooring winches type MW 200 EA with breaking power 53 t Aft mooring deck: 3x mooring winches type MW 200 EA with breaking power 53 t |
|
Capacity car units (RT43) |
4.395 or 809 trucks 1 RT43 unit = 7,38975 m² |
|
Stern ramp |
Width: 12,00 m Capacity: 320 t |
|
Number of decks |
9 (of which 1 is hoistable) |
|
Tank capacities |
Ballast: 13.562 m³ Bunker: 6.126 t |
|
Anchor |
2x Sets of cast steel, high holding type, anchor with a weight of 9.675 t each |
|
Lifting equipment |
2x Provision cranes JIB PEEE 5075 are fitted onboard, one on starboard -and one on port side of the accommodation |
|
Manager |
Wilhelmsen Ship Management (Norway) AS Strandveien 20 |
|
Previous Manager |
Barber Ship Management AS |
|
Operator |
WWL - Wilh. Wilhelmsen Lines |
|
Owner |
Wilhelmsen Lines Shipowning AS |
