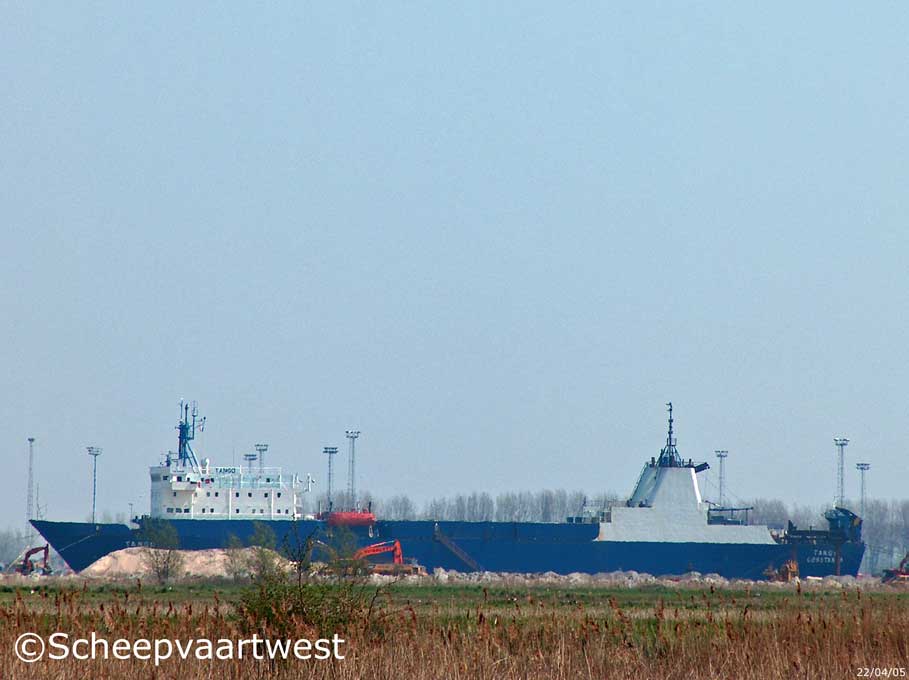

Tango - IMO 8306589

Name

TANGO

Previous names

2004-2005 Tango - DFDS Tor Line
2004 CFF Solent - Channel Freight Ferries
2003 Tango - Transfennica
2002-2003 Tango - Ferryways
2001-2002 Tango - Norfolkline
2000-2001 Tango
2000 Tango - Smyril Line
2000 Tango - Dart Line
1999-2000 Tango - Norfolkline
1999 Octogon 3 - DFDS Tor Line
1998-1999 Octogon 3 - East Cost Ferries
1997-1998 Octogon 3 - Finncarriers
1996-1997 Octogon 3 - Color Line
1984-1996 Tutova
1984 Ritzberg

Type

Roll-On/Roll-Off car carrier

IMO-number

8306589

Call sign

YQOA

Flag

Romania

Previous flags

1995 Cyprus

Port of registry

Constanta

GT

9.983 t

DWT

Summer: 6.704 t

NT

2.995 t

Length

140,12 m overall

123,00 m between perpendiculars

Breadth

20,50 m over all

Draught

Summer: 7,21 m

Lane metres

1.080

Freeboard

7.870 mm

Depth

14,60 m

Speed

16,0 knots

Built

1984

Keel laid

31.05.1983

Launch date

31.08.1983

Date of completion

11.1984

Builder

VEB Mathias - Thesen - Werf
Max-Reichpietsch-Weg 9
23968 Wismar
Federal Republic of Germany

Yard number

153

Hull material

Shipbuilding steel (standard)

Hull type

Single hull

Double bottom

Watertight bulkheads

8

Continuous decks

2

Main engine

2x S.K.L. 12 VD 48/42 AL-2 - 4 stroke single acting 12 cylinder 420 x 480 mm diesel engines - 5.295 kW each total 10.590 kW

Year of Manufacture: 1983

Manufacturer: Neue Maschinenbau Halberstadt halberstadt - Germany

Propeller

2x Controllable pitch propeller - aft

Boilers

2x Steam boiler, oil fired / exh.gas heated - 7,0 bar

Heating surface: 40,7 m²

Heating surface: 110,0 m²

1x Steam boiler, exh.gas heated - 10,0 bar

Heating surface: 115,0 m²

Year of manufacture: 1983

Manufacturer: VEB Dampfkesselbau Dresden-Übigau

Electric installations

1x Plant 380/220 V - 1.500 kVA

1x Plant 380 V - 800 kVA

1x Plant 380 V - 270 kVA

Shaft generator

1x 800 kVA

Generators

2x Main diesel generators each 750 kVA

Emergency generator

1x Diesel generatorset 270 kVA

Compressed air receivers

2x Receivers, each 2.000 litres - 30,0 bar

1x Receiver 160 litres - 30,0 bar

1x Receiver 100 litres - 30,0 bar

1x Receiver 2.000 litres - 6,0 bar

Bow thruster

1x Transverse thruster Zamech - 370 kW, forward

Capacity

70 Trailers

Bunker capacity

1.070 t

Lifting equipment

1x Derrick - SWL 2,5 t
1x Derrick - SWL 3,0 t
2x Lifts - SWL 55,0 t each

Anchor equipment

3x Anchors weight each 4.890 kg

Chain length: 550,00 m

Number of passengers

12

Number of beds

12

Operator

DFDS Tor Line

Owner

OSM - Octogon Shipping & Services Ltd.
Mamaia Avenue
Constanta
Romania

Previous owners

1984-1986 NavROM
1984 DDR RoRo

Renamed

Fast Independence
