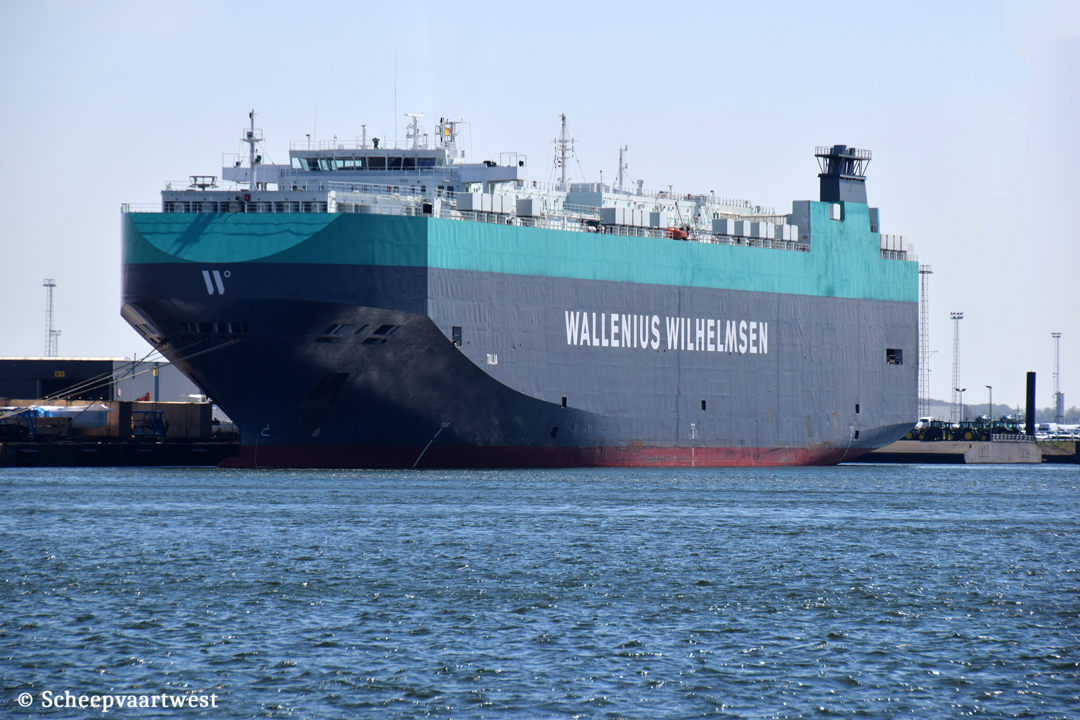

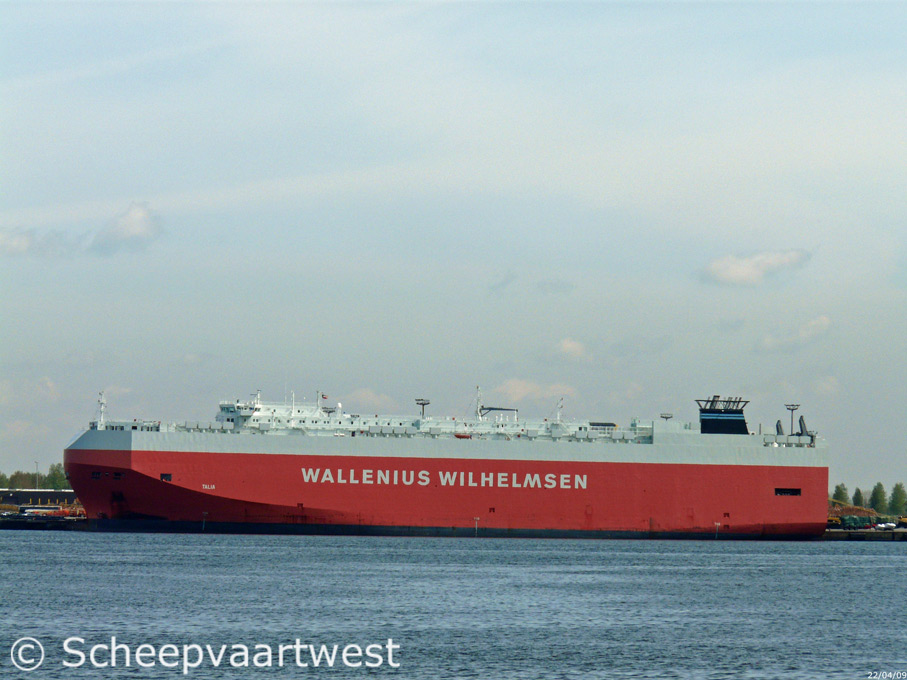

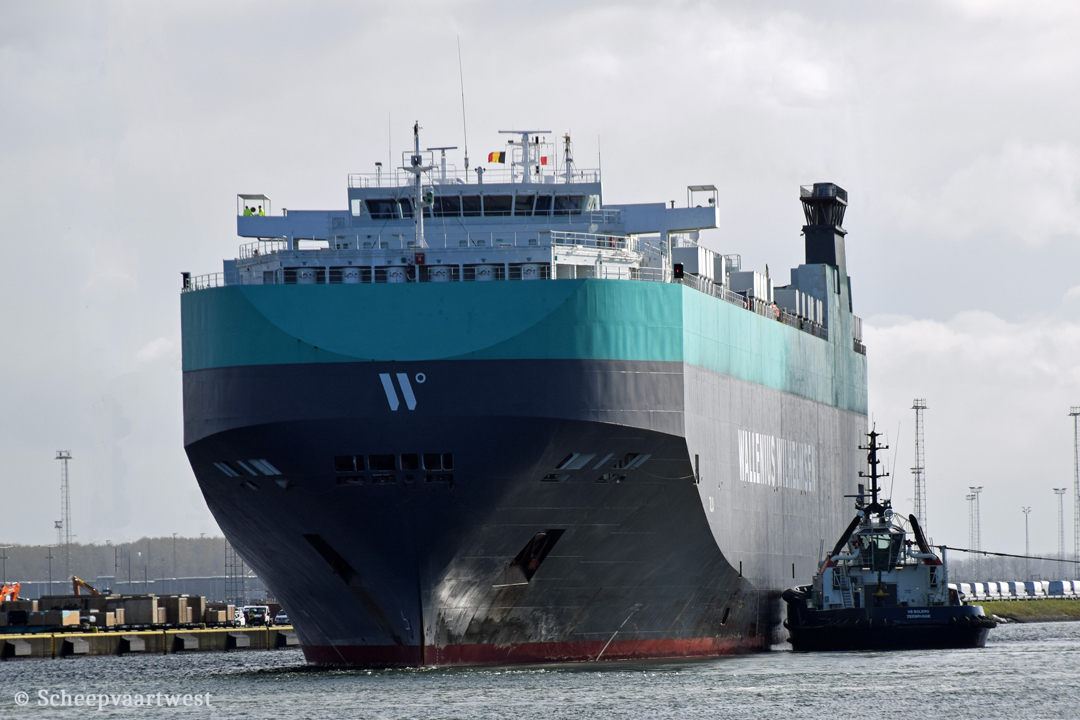

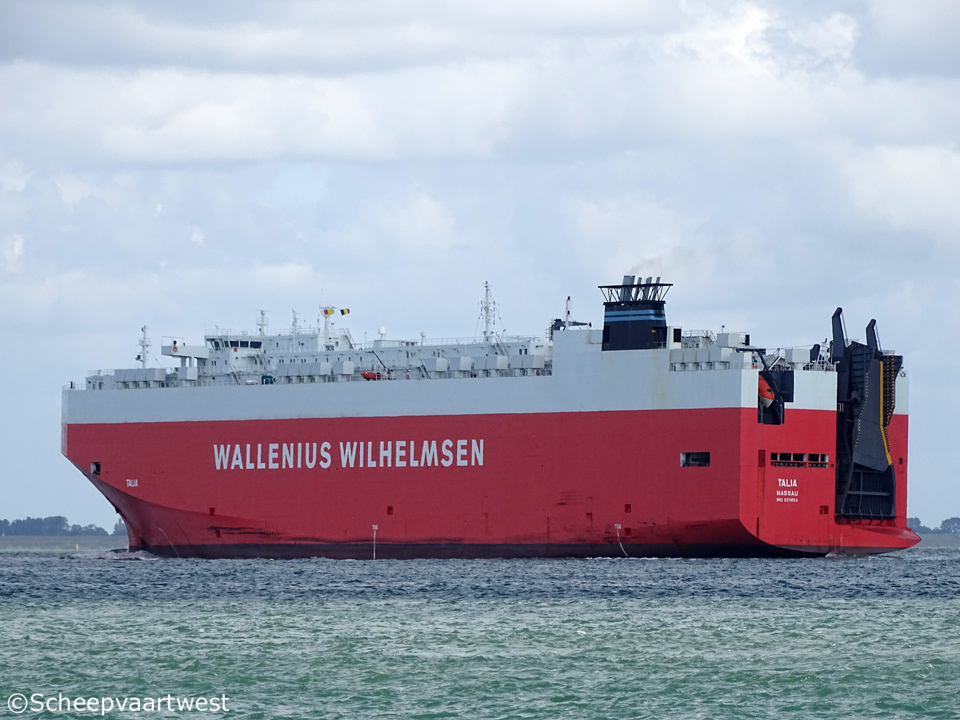

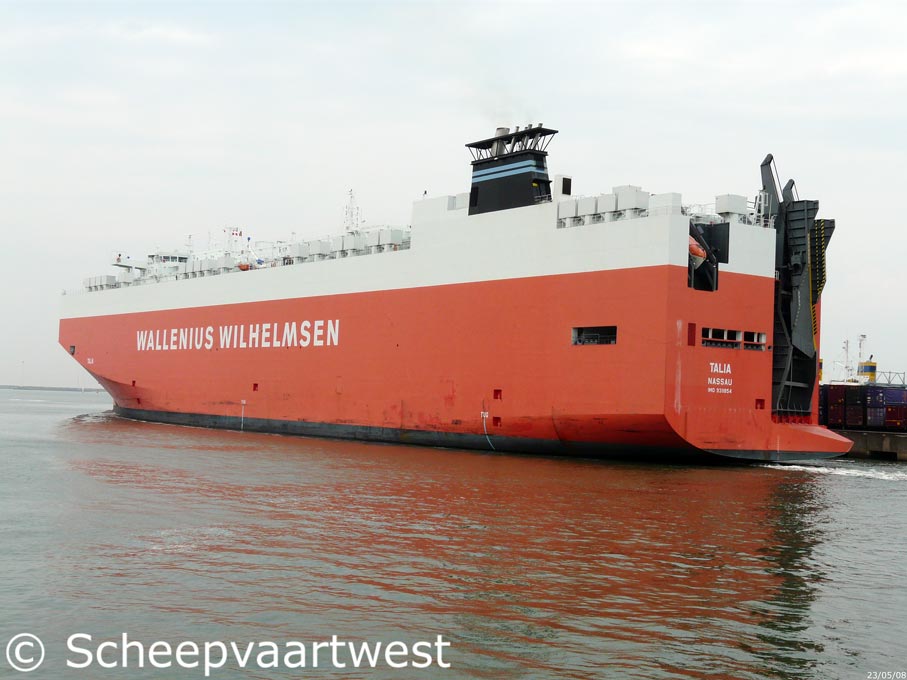

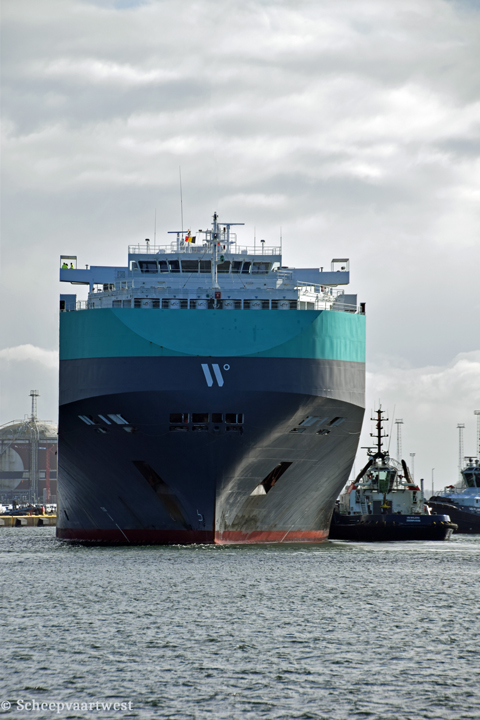

Talia - IMO 9311854

Name

TALIA

Type

Vehicles Carrier

PCTC - Pure Car and Truck Carrier

IMO-number

9311854

Call sign

C6VJ6

Flag

Bahamas

Port of registry

Nassau

GT

57.692 t

DWT

Summer: 21.021 t

NT

21.037 t

Length

199,95 m overall

188,35 m between perpendiculars

Breadth

32,51 m overall

32,25 m moulded

Draught

Summer: 10,00 m

Air draft

46,00 m

Freeboard

9.980 mm

Depth

19,98 m

Speed

20,0 knots

Built

2006

Keel laid

29/12/2005

Launch

14/06/2006

Date of completion

01/08/2006

Builder

Stocnia Gdynia S.A.

Group Gdynia

Gdynia

Poland

Yard number

8168/14

Hull material

Steel

Hull type

Single hull

Bulkheads

Transverse: 3

Main engine

1x MAN-B&W/Cegielski 7S60MC-C- 7 cylinder combustion engine output 15.828 kW at 105,0 rpm

Number of screws

1x Fixed pitch propeller

Boilers

1x Exhaust gas water tube AV-7

1x Vertical shell type Mission OS

Builder: Aalborg Industries A/S

Generators

3x MAN 7L28/32H main diesel generatorsets total output of each 1.470 kW

Emergency generator

1x MAN D2866LXE30 diesel generatorset 244 kW

Bow thruster

1.400 kW

Capacity car units RT43

6.400

1 RT43 unit = 7,38975 m²

Basic complement

27

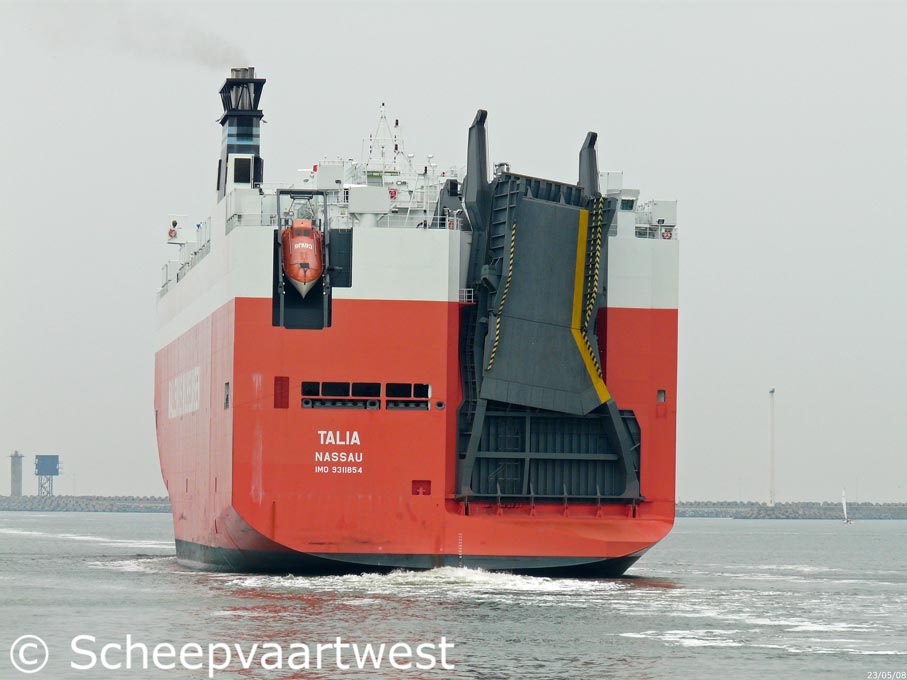

Stern ramp starboard

Length: 38,00 m

Width: 7,00 m

Capacity: 150 t

Midship ramp starboard

Length: 25,00 m

Width: 5,00 m

Capacity: 22 t

Number of decks

13 (of which 4 are hoistable)

Car deck areas

Total: 54.900 m²

Hoistable: 17.000 m³

Ventilation

20 air changes an hour

Tank capacities

Fuel oil: 3.350 m³

Diesel oil: 130 m³

Lub oil: 150 m³

Potable water: 260 m³

Ballast: 7.773,93 m³

Anchor chain

Length: 660 m

Diameter: 78 mm

Lifting equipment

1x Crane - SWL 5,0 t

Crew

29

ISM & commercial manager

Stamco Ship Management Company Ltd.

21 Akti Miaouli Street

185 35 Piraeus

Greece

Operator

WWL - Wilh. Wilhelmsen Logistics

Registered owner

Talia Maritime Limited

Isle of Man

United Kingdom

Latest data adjustment

03 May 2022
