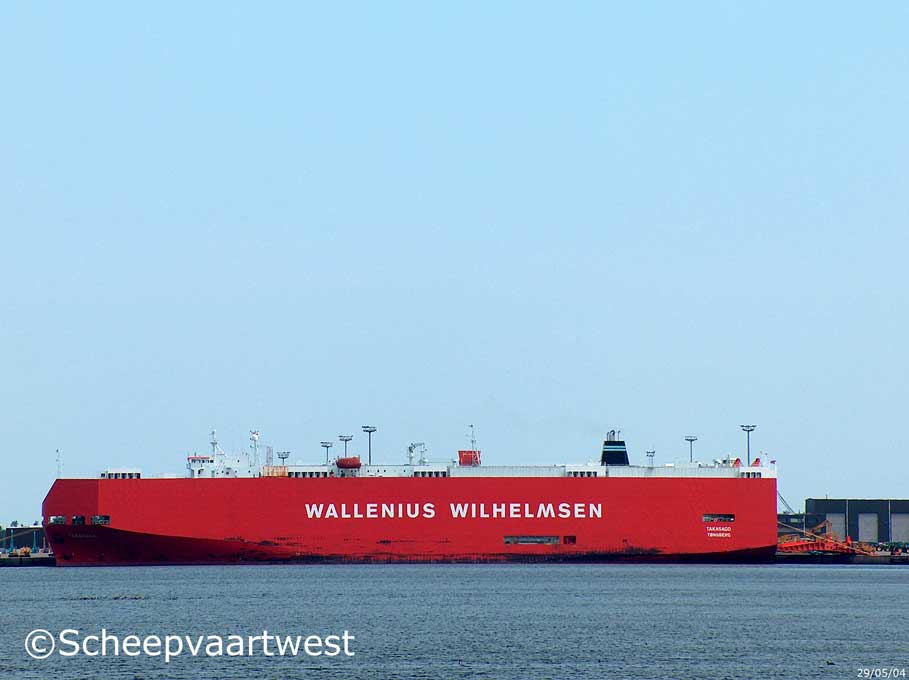

| Zeebrugge 29 May 2004 |
|
Name |
TAKASAGO |
|
Type |
Vehicles Carrier |
|
IMO-number |
9126297 |
|
Call sign |
LACR5 |
|
Flag |
Norway |
|
Port of registry |
Tønsberg |
|
GT |
49.821 t |
|
DWT |
19.884 t at maximum daft |
|
NT |
18.750 t |
|
Length |
190,05 m overall |
|
Breadth |
32,26 m overall |
|
Draught |
Summer: 10,20 m |
|
Air draft |
44,57 m |
|
Freeboard |
3.810 mm |
|
Depth |
31,40 m to upper deck |
|
Speed |
19,0 knots |
|
Built |
1996 |
|
Keel laid |
12.06.1996 |
|
Launch date |
15.09.1996 |
|
Date of completion |
17.12.1996 |
|
Builder |
Sumitomo Heavy Industries Marine & Engineering Co., Ltd. |
|
Yard number |
1214 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Sulzer 6RTA 62U engine with an output of 12.980 kW at 109,0 rpm. |
|
Propeller |
1x Fixed 5 blades propeller and fitted with remote control from the bridge and control room |
|
Generators |
3x Man B&W Holfby main diesel generatorsets with an output of 780 kW each |
|
Emergency generator |
1x MAN D-0226 MLE diesel generatoset |
|
Bow thruster |
1x Ulstein - 1.200 kW |
|
Capacity cars / trucks |
5.890 cars (RT43) or 803 trucks |
|
Number of decks |
12 + garage (of which 5 are hoist able) |
|
Manager |
Wilhelmsen Ship Management (Norway) AS |
|
Owner |
Wilhelmsen Lines Shipowning AS |
|
Renamed |
2005 Honor |
