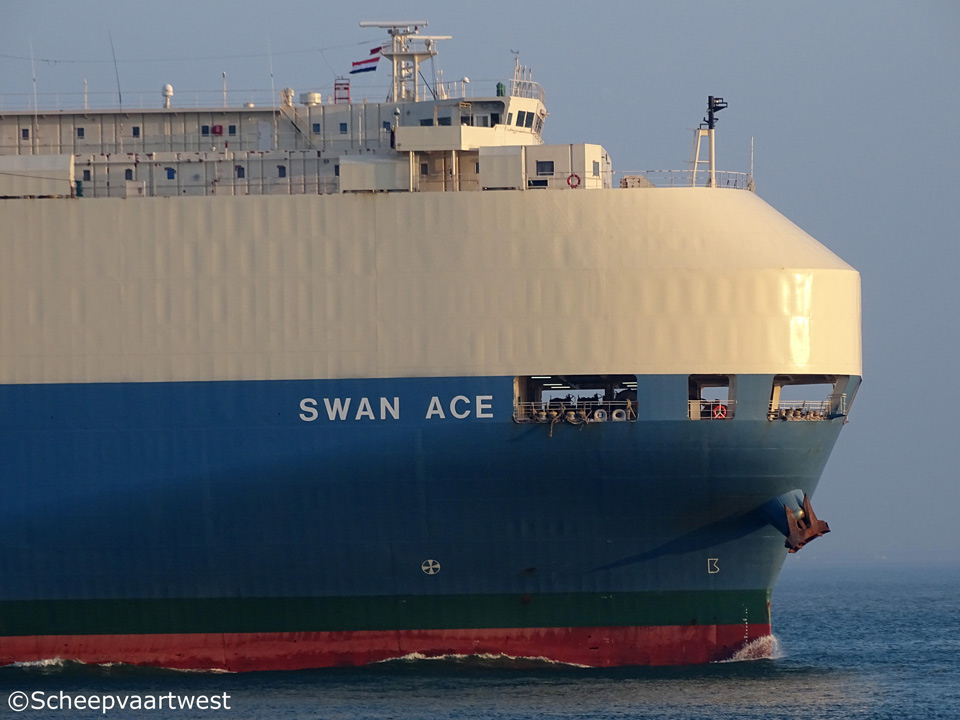

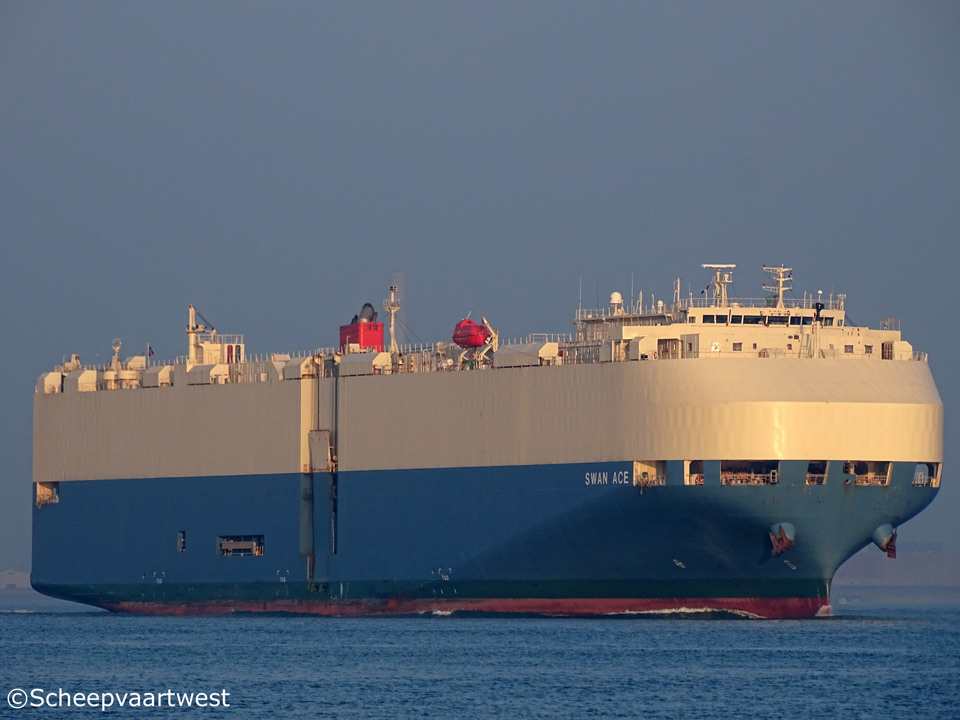

Westerschelde 04 April 2017 |
 |
 |
 |
||

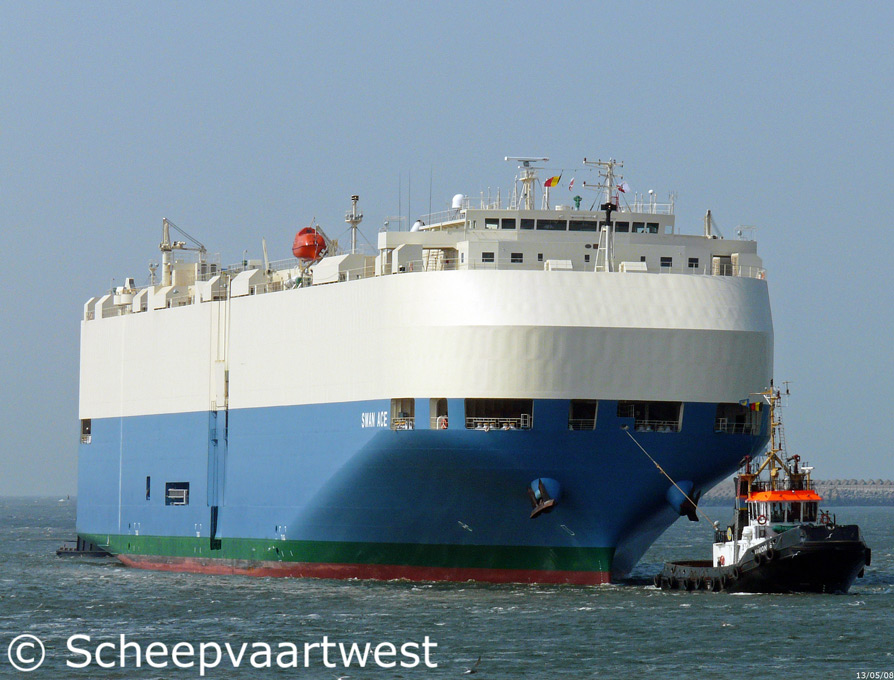

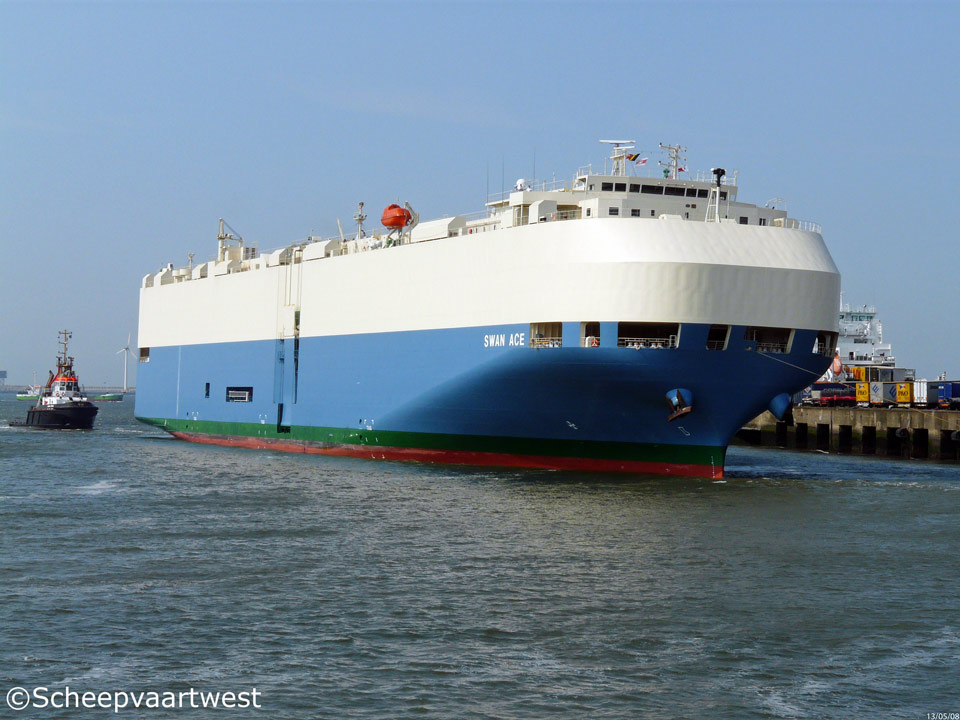

| Westerschelde 04/04/17 | Zeebrugge 13/05/08 | Zeebrugge 13/05/08 |
|
Name |
SWAN ACE |
|
Type |
Roll-On/Roll-Off car carrier |
|
IMO-number |
9338826 |
|
Call sign |
C6WV4 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
58.685 t |
|
DWT |
18.867 t |
|
NT |
18.167 t |
|
Length |
199,95 m overall |
|
Breadth |
32,26 m overall |
|
Moulded L x B x D |
190,00 x 32,20 x 14,70 m |
|
Registered L x B x D |
192,86 x 32,20 x 21,19 m |
|
Draught |
Summer: 9,816 m |
|
Freeboard |
Summer: 4.914 mm |
|
Depth |
14,70 m moulded |
|
Speed |
Trial: 22,2 knots |
|
Built |
2008 |
|
Keel laid |
10.07.2007 |
|
Launch date |
27.10.2007 |
|
Date of completion |
19.02.2008 |
|
Builder |
Minaminippon Shipbuilding |
|
Yard number |
698 |
|
Hull type |
Single hull |
|
Main engine |
1x 2 stroke 8 cylinder 600 x 2.300 mm diesel engine - 15.130 kW at 100,0 rpm Manufacturer: Kobe Diesel Co. Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 620 mm |
|
Number of screws |
1 |
|
Boiler |
1x Auxiliary vertical boiler - 7,8 bar Evaporation: 3,98 t/h Manufacturer: Tortoise Engineering Co. Ltd. |
|
Generator |
4x Generators - 3.900 kVA |
|
Car capacity |
5.218 |
|
Tank capacities |
Fuel oil: 2.956 m³ Fresh water: 398 m³ Water ballast: 7.233 m³ |
|
Lifting equipment |
2x Cranes SWL - 4,0 t each |
|
Manager |
MOL Ship Management (Singapore) Pte. Ltd. |
|
Operator |
MOL ACE - Auto Carrier Express |
|
Register owner |
Snowscape Car Carriers S.A. |
|
Latest data adjustment |
18 August 2017 |
