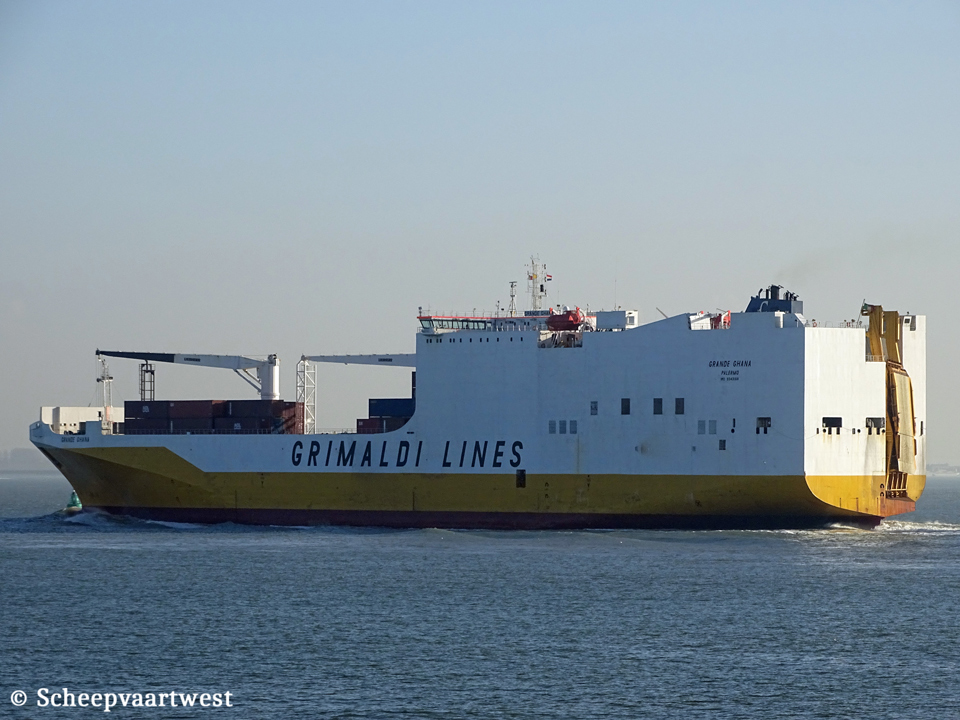

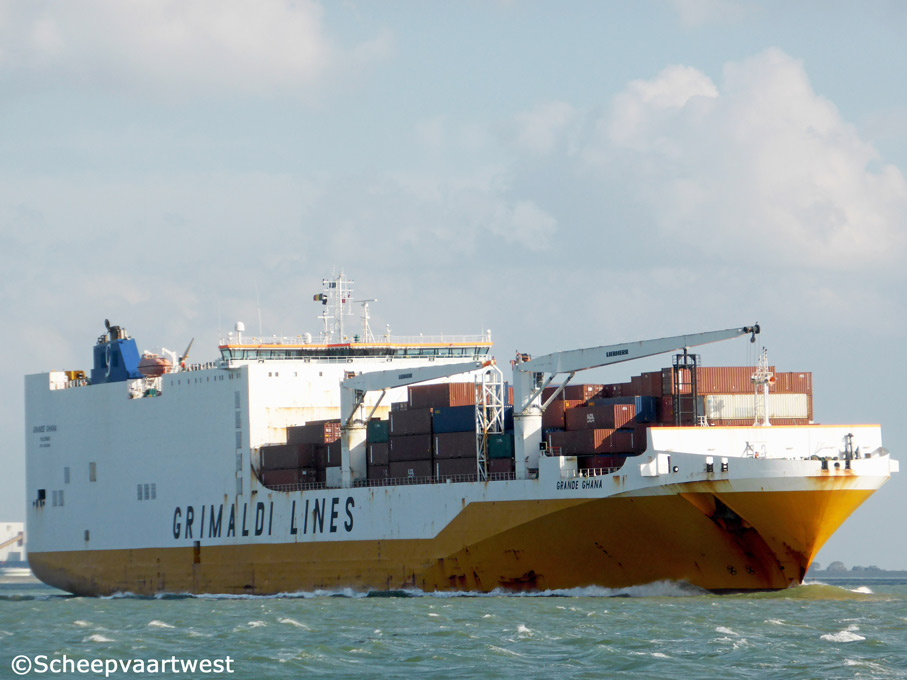

Grande Ghana 01

Westerschelde 09 October 2014

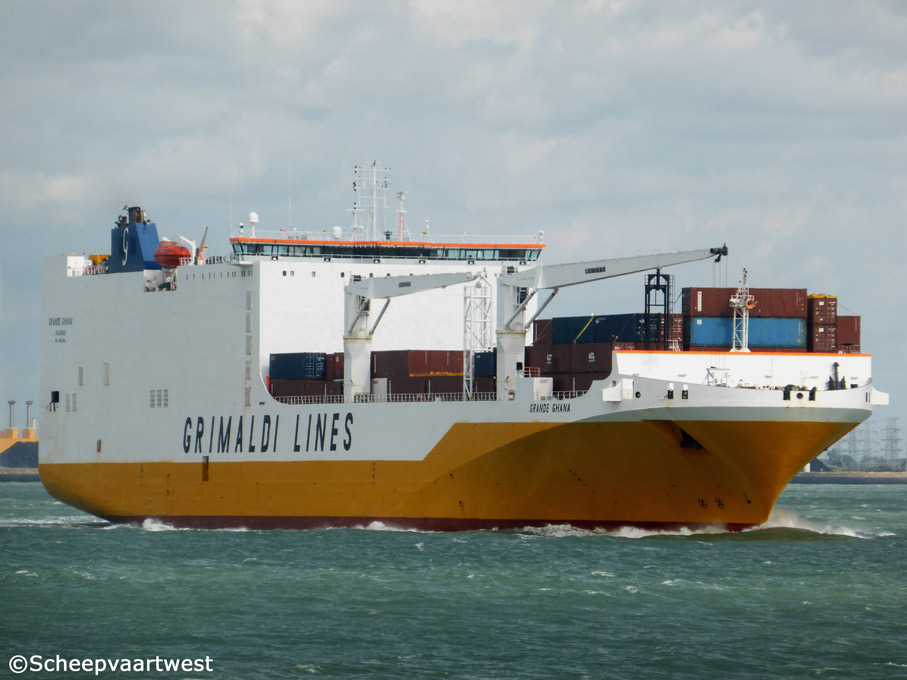

Grande Ghana 02
29/07/15



Name

GRANDE GHANA

Type

CoCon - Roll-On/Roll-Off cargo vessel - Containership

IMO-number

9343168

Call sign

ICEZ

Flag

Italy

Port of registry

Palermo

GT

47.115 t

DWT

Summer: 25.000 t

Number of 20ft containers

1.360

Length

210,92 m

Breadth

32,26 m

Draught

9,80 m

Lanemetres

2.500 m

Depth

21.53 m

Speed

Max.: 21.9 knots

Built

2009

Date of completion

11.02.2009

Builder

Uljanik Shipyard
Pula
Croatia

Yard number

473

Hull material

Steel

Main engine

1x MAN-B&W-Uljanik 8S60MC-C - 2 stroke 8 cylinder diesel engine 19.400 kW

Builder: Brodogradiliste 'Uljanik' d.d. (MAN B&W), Pula - Croatia

Propellers

1x Fixed propeller

Shaft generator

1x 1.400 kW

Generators

4x Generatorsets each 1.180 kW

Bow thruster

1.000 kW, forward

1.000 kW, aft

Car capacity

3.400

Cargo gear

2x Cranes - SWL 40,0 t each

Crew

30

Manager

Grimaldi Group (Grimaldi Compagnia de Navigazione S.p.A)
Napoli
Italy

Operator

Grimaldi Lines

Owner

Inarme Industria Arnamento Meridionale S.p.A
Napoli
Italy

Latest data adjustment

03 December 2014
