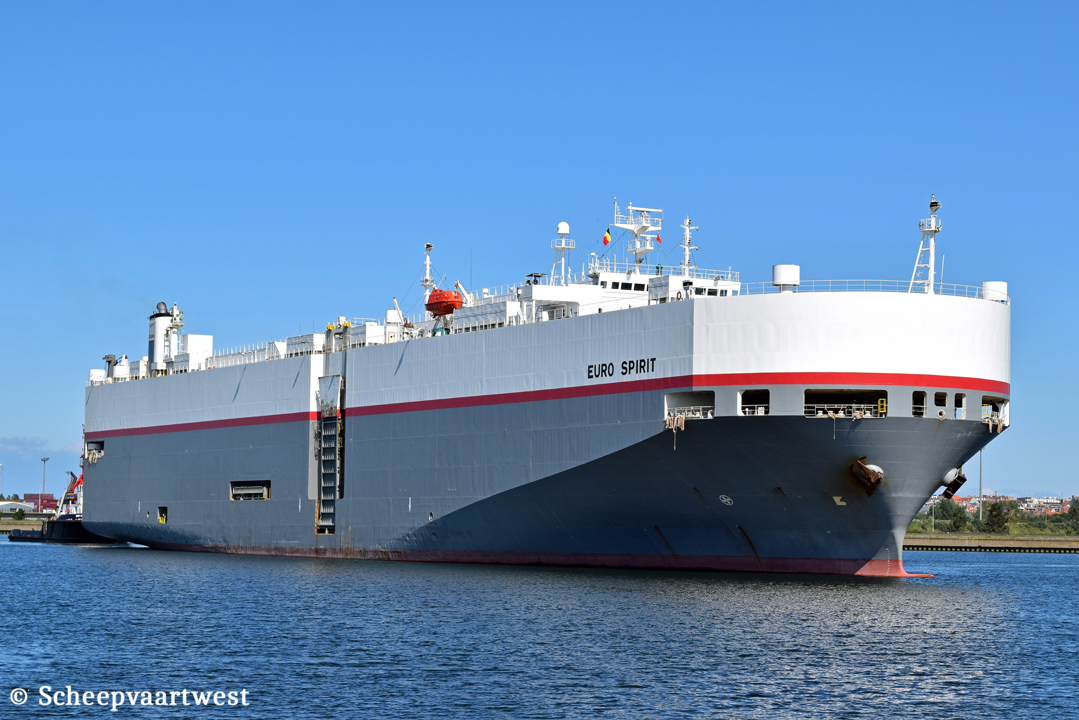

Euro Spirit 03

Zeebrugge 08 September 2014

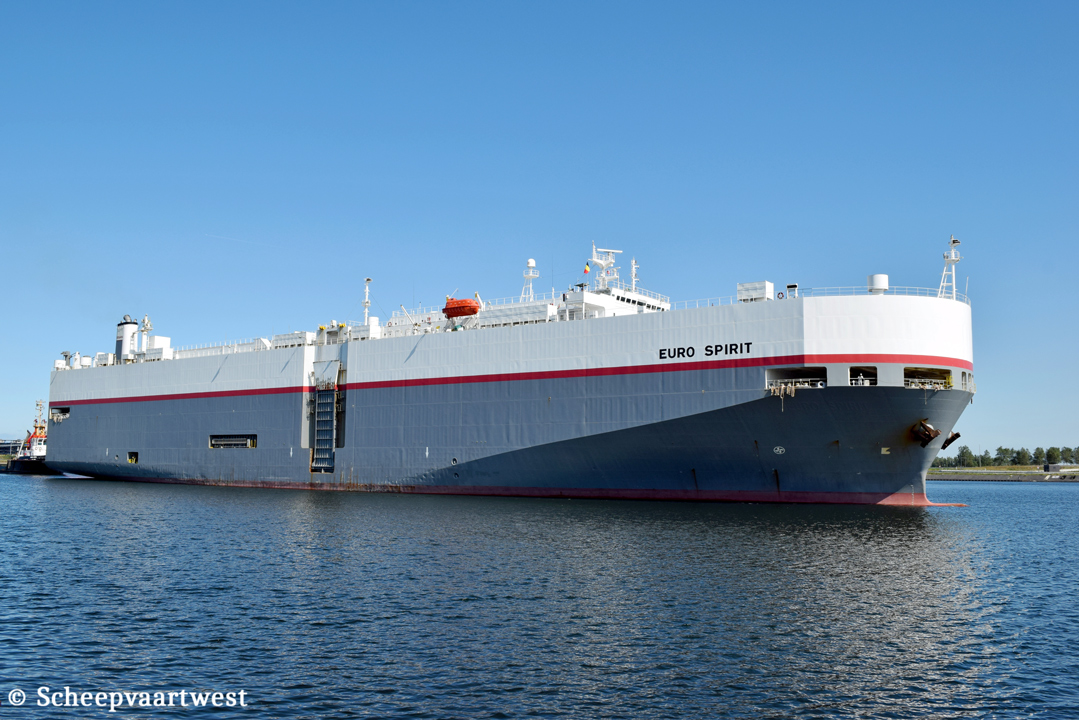

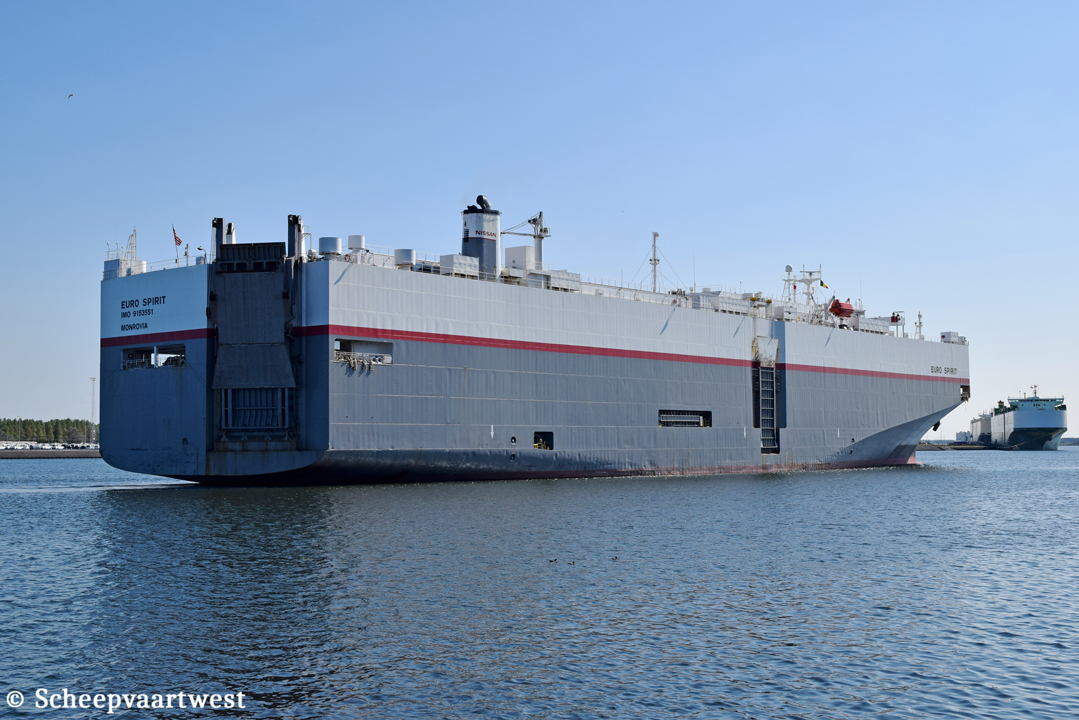

Euro Spirit 05   Euro Spirit 07
Zeebrugge 08/09/14 Zeebrugge 08/09/14



Name

EURO SPIRIT

Type

Roll-On/Roll-Off vessel - Car carrier

IMO-number

9153551

Call sign

ELUW8

Flag

Liberia

Port of registry

Monrovia

GT

46.346 t

DWT

Summer: 15.483 t

NT

13.904 t

Length

188,00 m overall

Breadth

31,20 m

Draught

Summer: 9,12 m

Moulded L x B x D

178,00 x 31,20 x 11,50 m

Registered L x B x D

181,86 x 31,20 x 20,75 m

Freeboard

2.407 mm

Depth

11,50 m

Speed

Service: 18,5 knots

Max.: 20,9 knots

Built

1998

Keel laid

11/09/1997

Launch date

16/12/1997

Date of completion

23/03/1998

Builder

Minaminippon Shipbuilding Co. Ltd.

Usuki

Japan

Yard number

M-651

Hull material

Steel

Hull type

Single hull

Main engine

1x 2 stroke single acting 8 cylinder 500 x 1.910 mm combustion engine 11.414 kW at 127,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 534 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 2,58 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Generators total 3.175 kVA

Car capacity

4.095

Tank capacities

Fuel oil: 2.923 m²

Fresh water: 386 m²

Water ballast: 7.676 m³

Crew

23

Manager

MOL Ship Management Co., Ltd.

Tokyo

Japan

Operator

NMCC - Nissan Motor Car Carrier (MOL Group)

Tokyo

Japan

Registered owner

Monc Liberia Inc.

Monrovia

Liberia

Scrapped

06/07/2020 Beached at Alang - India

Latest data adjustment

01 August 2020
