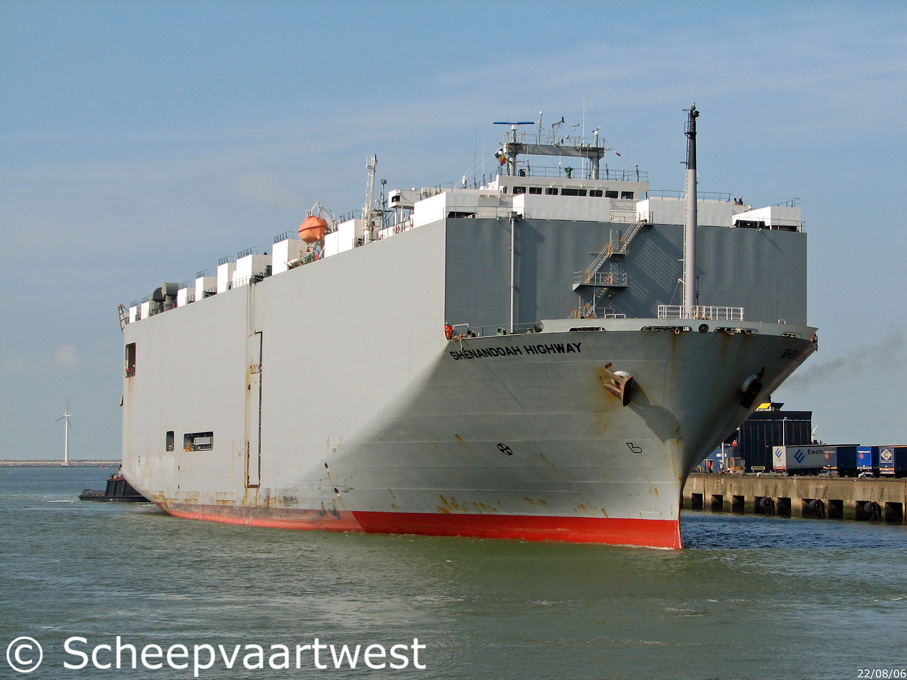

Shenandoah Highway 13
Zeebrugge 22 August 2006

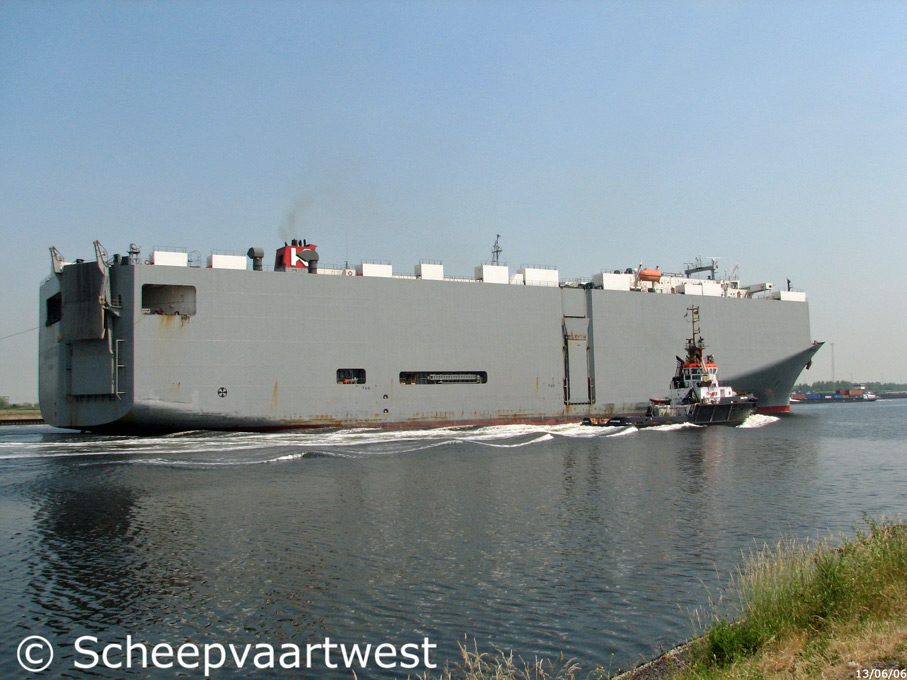

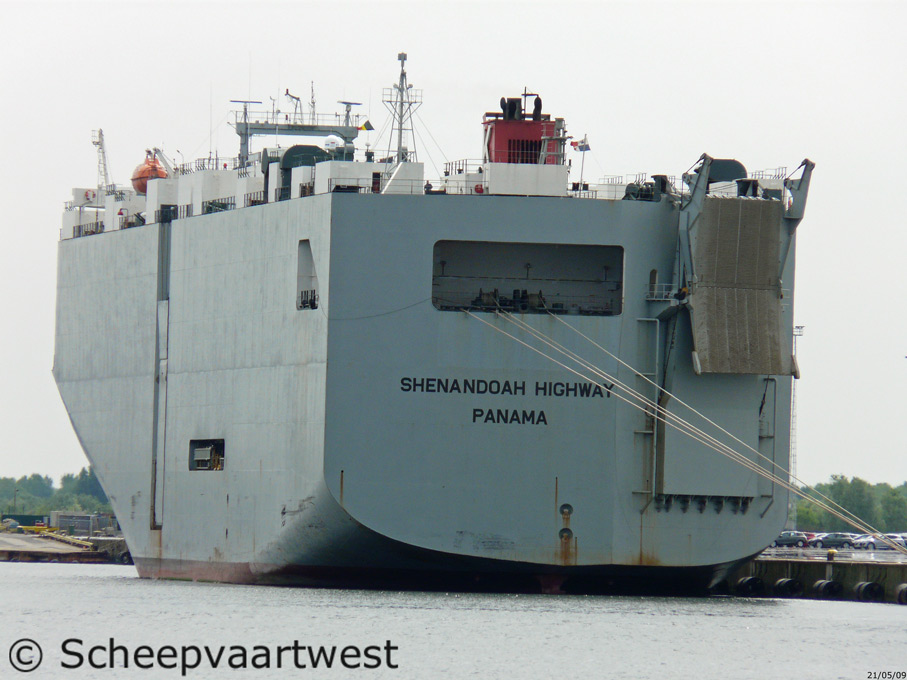

Shenandoah Highway 08   Shenandoah Highway 15
Zeebrugge 13/06/06 Zeebrugge 21/05/09



Name

SHENANDOAH HIGHWAY

Type

Vehicles Carrier
PCC - Pure Car Carrier

IMO-number

9043689

Call sign

3EWL9

Flag

Republic of Panama

Port of registry

Panama City

GT

47.368 t

DWT

12.308 t

NT

14.211 t

Length

179,99 m overall
170,00 m between perpendiculars
172,96 m registered

Breadth

32,20 m overall

Moulded L x B x D

172,00 x 32,20 x 15,23 m

Registered L x B x D

172,96 x 32,20 x 22,17 m

Draught

Summer: 9,024 m

Freeboard

Summer: 6.244 mm

Depth

15,23 m moulded

Speed

Service: 18,5 knots
Trial: 20,2 knots

Built

1992

Date of order

09.1991

Keel laid

16.01.1992

Launch date

23.04.1992

Date of build

17.09.1992

Builder

Mitsubishi Heavy Industries Ltd.
Kobe Shipyard & Machinery Works
Kobe
Japan

Yard number

1192

Hull type

Single hull

Main engine

1x Sulzer 2 stroke single acting 6 cylinder 620 x 2.150 mm diesel engine - 10.220 kW at 106,0 rpm
Manufacturer: Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works

Number of screws

1

Boiler

1x Auxiliary vertical boiler- 6,9 bar
Evaporation: 3,75 t/h
Manufacturer: Mitsubishi Heavy Industries, Ltd. Nagasaki Shipyard & Machinery Works

Generators

4x Main diesel generatorsets each 4.439 kVA

Car capacity

4.211

Tank capacities

Fuel oil: 2.987 m³
Fresh water: 444 m³
Water ballast: 5.017 m³

Lifting equipment

2x Cranes - SWL 4,0 t each

Manager

Taiyo Nippon Kisen Co. Ltd.
2-2-3, Kaigandori, Chuo-Ku
Japan

Operator

K-Line - Kawasaki Kisen Kaisha Line

Registered owner

Shenandoah Maritime S.A.
Republic of Panama
