Westerschelde 02 April 2014 |
|
Name |

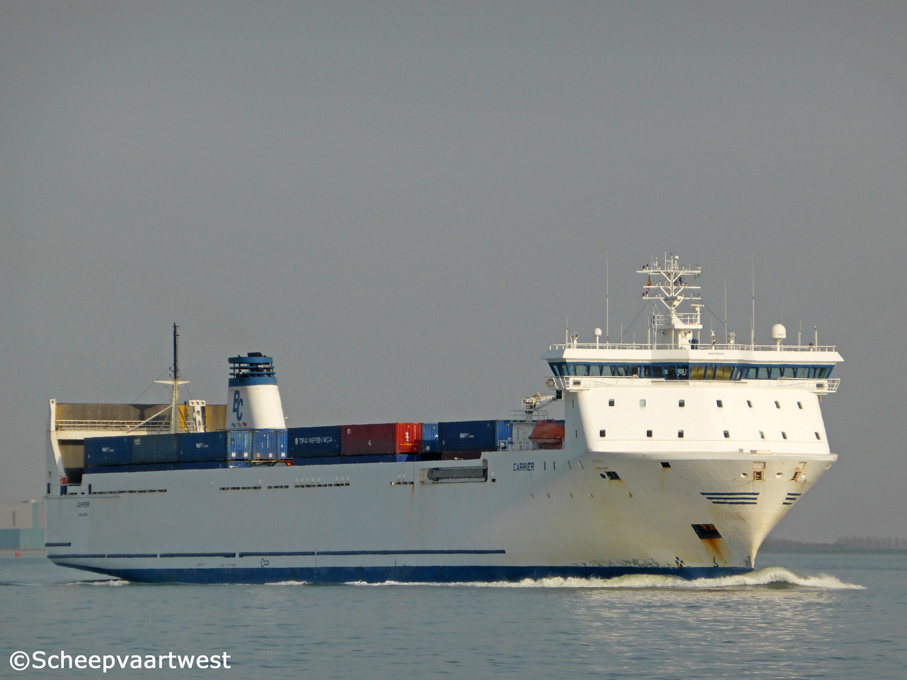

CARRIER |
|
Previous names |
1998 - 05.2002 United Carrier 2002 - 25.06.2013 Birka Carrier |
|
Type |
Roll-On/Roll-Off carrier |
|
IMO-number |
9132002 |
|
Call sign |
OJHT |
|
Flag |
Finland |
|
Port of registry |
Mariehamn |
|
GT |
12.251 t |
|
DWT |
Summer: 8.853 t |
|
NT |
3.676 t |
|
Container capacity |
336 TEU or 162 FEU + 12 TEU |
|
Reefer capacity |
40 - 10 kW / 32 AMPS / 380 V |
|
Length |
154,50 m overall 142,60 m between perpendiculars |
|
Breadth |
22,74 m extreme |
|
Draught |
Summer: 6,95 m |
|
Depth |
14,80 m |
|
Speed |
20,0 knots |
|
Built |
1998 |
|
Keel laid |
14.03.1996 |
|
Launch date |
22.08.1997 |
|
Date of completion |
23.01.1998 |
|
Builder casco |
Santierul Naval Galatz Yard number: 906 |
|
Builder completion |
Fosen Mekaniske Verksteder AS Yard number: 62 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 5 |
|
Number of decks |
2 |
|
Main engine |
1x Wärtsilä Vasa 16V46B - single acting 15.600 kW at 500 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated UNEX G-229 1x Auxiliary boiler, oil/gas fired UNEX BH-3000 |
|
Shaft generator |
1.250 kVA - 1.000 kW at 1.500 rpm |
|
Generators |
2x Mitsubishi S12R-MPTA diesel generatorsets each 1.000 kVA / 800 kW - 3x 380V - 50Hz |
|
Emergency generator |
1x Mitsubishi 6D22T diesel generatorset |
|
Bow thruster |
1x KaMeWa - 800 kW |
|
Cargo capacity |
Tank top: Lane metres: 410 m - Area: 1.250 m² - Free height: 4,60 m - Deck load: 5,0 t/m² - Boogie axel load: 50 t Main deck: Lane metres: 695 m - Area: 2.150 m² - Free height: 5,00 m - Deck load: 5,0 t/m² - Boogie axel load: 50 t Weather deck: Lane metres: 670 m - Area: 1/920 m² - Deck load: 3,0 t/m² - Boogie axel load: 50 t Total: Lane metres: 1.775 m - Area: 5.320 m² |
|
Max deck capacity |
116 Eurocontainers at 30 t, Total: 3.480 t |
|
Cargo deck accesses |
Two stern ramps, width of drive way: 13,40 m/4,10 m Driving ramp between main deck/tanktop and main deck/weather deck, driving width: 4,10 m |
|
Ballast capacity |
4.352 m³ |
|
Accommodation |
14 officers and crew single cabins 1 pilot 6 double berth drivers cabins |
|
Manager |
Eckerö Shipping Ab Ltd. |
|
Registered owner |
Eckerö Shipping Ab Ltd. |
|
Previous owners |
2002 - 2006 Birka Cruises Ab 1998 - 2002 Birka Line Ab |
|
Renamed |
01.2016 Finncarrier - Call sign: OJHT |
|
Latest data adjustment |
09 April 2016 |
