| Zeebrugge 05 June 2012 |
 |
| Zeebrugge 05/06/12 |
|
Name |

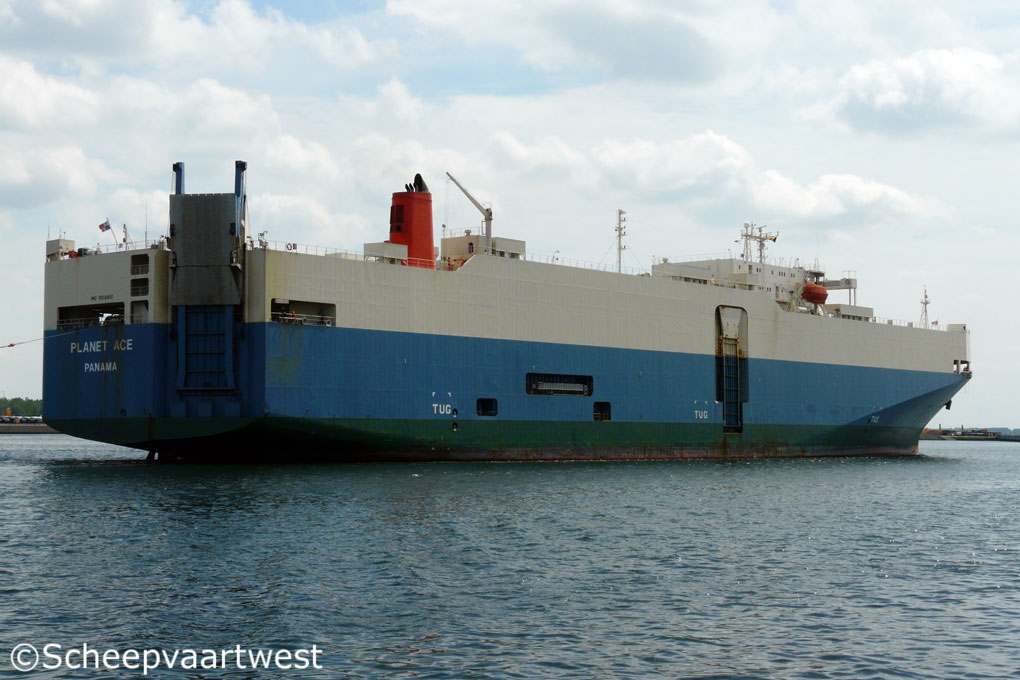

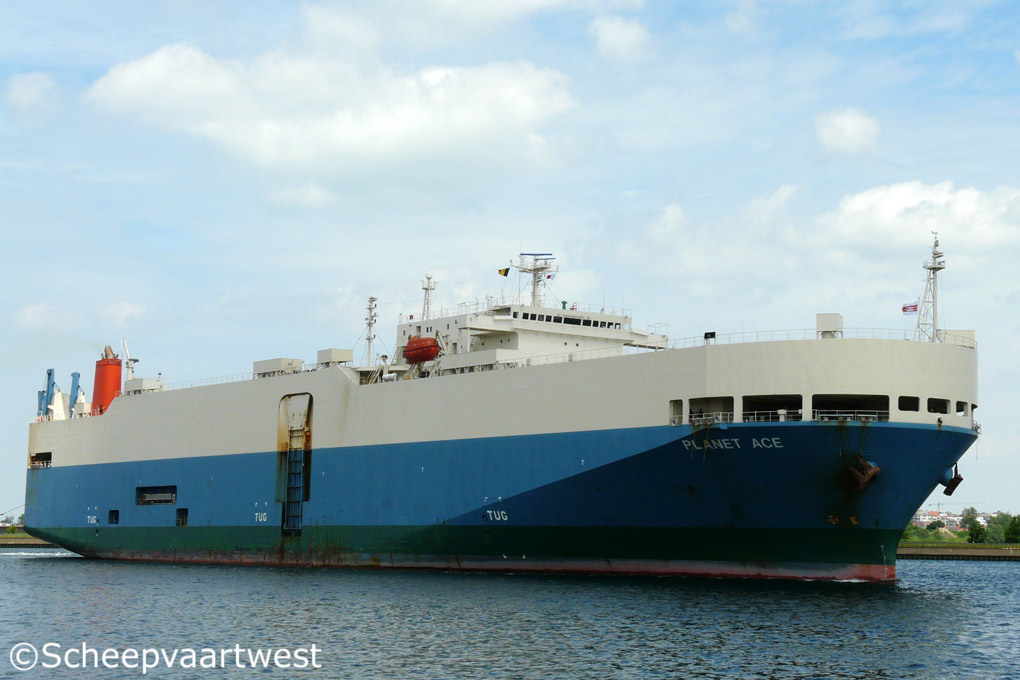

PLANET ACE |
|
Type |
Vehicles carrier |
|
IMO-number |
9014810 |
|
Call sign |
3EYF9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
38.349 t |
|
DWT |
15.327 t |
|
NT |
11.505 t |
|
Length |
188,03 m |
|
Breadth |
28,32 m |
|
Draught |
Summer: 8,42 m |
|
Moulded L x B x D |
178,00 x 28,20 x 11,50 m |
|
Registered L x B x D |
182,00 x 28,20 x 20,79 m |
|
Freeboard |
Summer: 3.107 mm |
|
Depth |
11,50 m moulded |
|
Speed |
Trial: 19,6 knots Service: 18,7 knots |
|
Built |
1992 |
|
Keel laid |
13.01.1992 |
|
Launch date |
01.07.1992 |
|
Date of completion |
22.10.1992 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. |
|
Yard number |
2738 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi 6UEC60LA - 2 stroke single acting 6 cylinder 600 x 1.900 mm diesel engine - 9.265 kW at 110,0 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Work |
|
Propeller |
1 |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 2,70 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Main diesel generatorsets each 2.949 kVA |
|
Bow thruster |
1x 920 kW |
|
Cargo capacity |
Cars: 3.241 Trucks: 204 |
|
Tank capacities |
Fuel oil: 2.473 m³ Fresh water: 326 m³ Water ballast: 7.704 m³ |
|
Crew |
28 |
|
Manager |
MOL Ship Management (Singapore) Pte. Ltd. |
|
Owner |
MOL Ship Management |
|
Registered owner |
Planet Express S.A. |
|
Scrapped |
17.10.2017 at Alang - India |
|
Latest data adjustment |
13 November 2017 |
