| Zeebrugge 16 April 2004 |
|
Name |

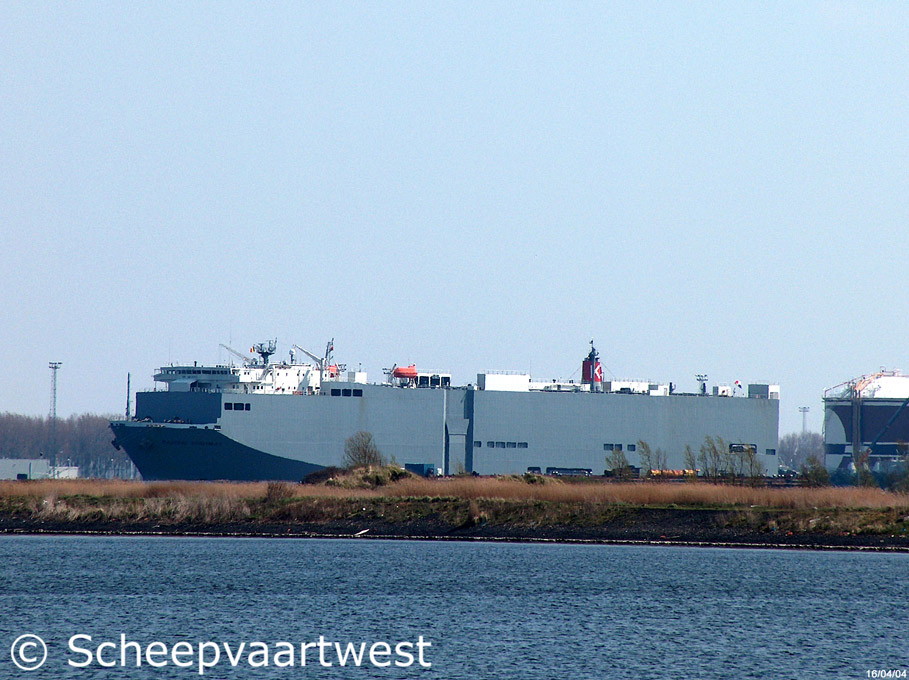

PACIFIC HIGHWAY |
|
Type |
Vehicles Carrier |
|
IMO-number |
9206023 |
|
Call sign |
H3AK |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama |
|
GT |
48.039 t |
|
DWT |
15.127 t |
|
NT |
14.412 t |
|
Length |
179,99 m overall 168,95 m registered |
|
Breadth |
32,20 m over all |
|
Moulded L x B x D |
167,00 x 32,20 x 14,98 m |
|
Registered L x B x D |
168,95 x 32,20 x 21,42 m |
|
Draught |
Summer: 9,417 m |
|
Freeboard |
Summer: 5.594 mm |
|
Depth |
14,98 m moulded |
|
Speed |
Service: 20,0 knots Trial: 22,0 knots |
|
Built |
2000 |
|
Keel laid |
25.06.1999 |
|
Launch date |
19.11.1999 |
|
Date of completion |
21.02.2000 |
|
Builder |
Kawasaki Heavy Industries |
|
Yard number |
1495 |
|
Hull type |
Single hull |
|
Main engine |
1x 2 stroke single acting 8 cylinder 600 x 2.292 mm diesel engine - 13.240 kW at 101,0 rpm Manufacturer: Kawasaki Heavy Industries Ltd. |
|
Boiler |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 4,49 t/h Manufacturer: Osaka Boiler Mfg. Co. Ltd. |
|
Generators |
4x Main diesel generatorsets 2.990 kVA |
|
Number of screws |
1 |
|
Cargo capacity |
Cars: 5.064 Trucks: 376 |
|
Tank capacities |
Fuel oil: 2.766 m³ Fresh water: 515 m³ Water ballast: 6.194 m³ |
|
Lifting equipment |
2 Cranes - SWL 4,0 t each |
|
Manager |
Taiyo Nippon Kisen Co., Ltd. |
|
Operator |
K-Line / Kawasaki Kisen Kaisha Line |
|
Registered owner |
Daygood Steamship Inc. |
