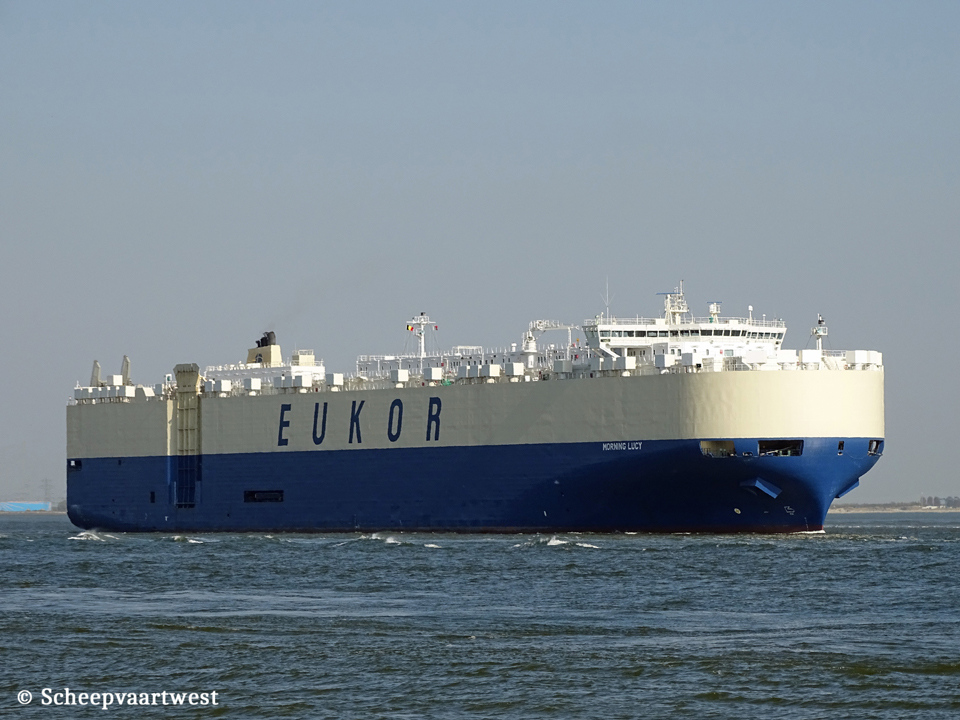

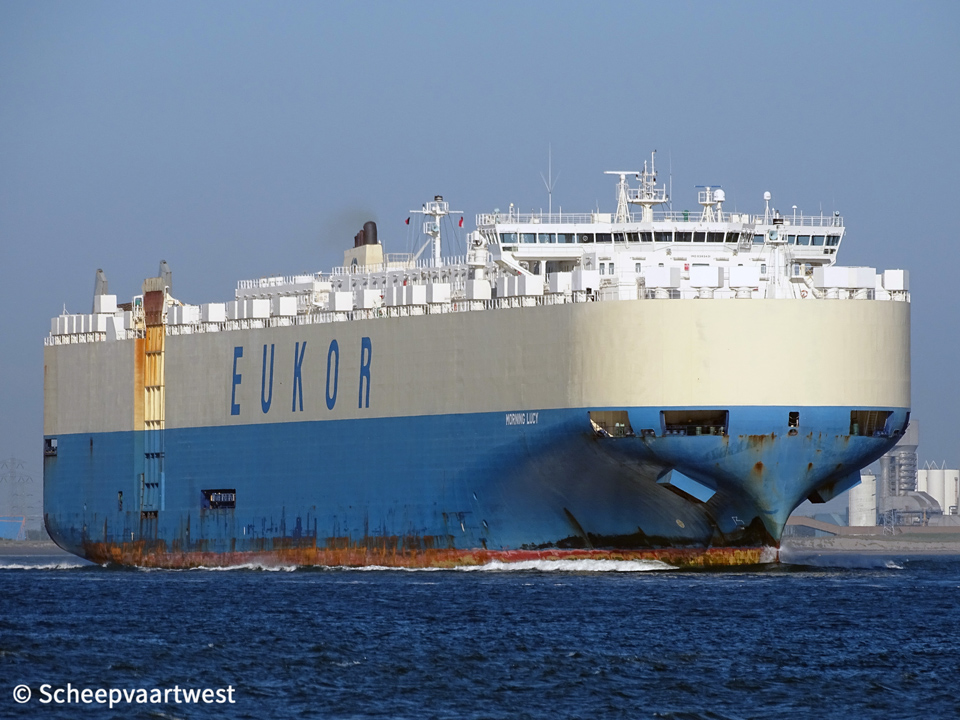

| Westerschelde 11 March 2012 |
 |
 |
 |
 |
|||

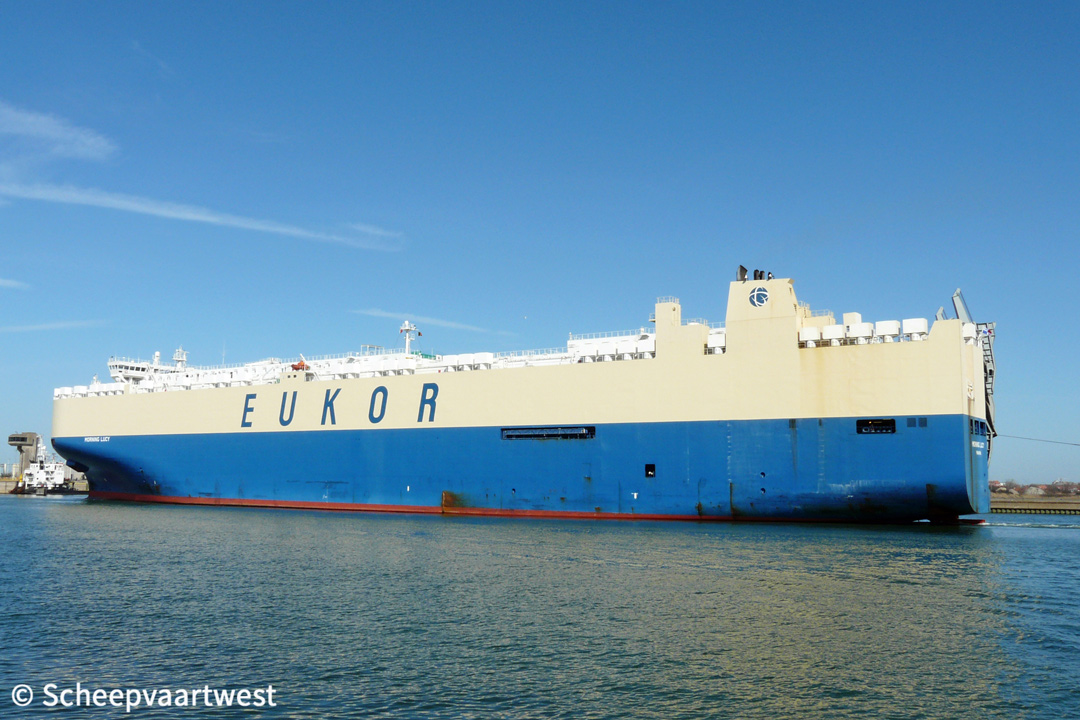

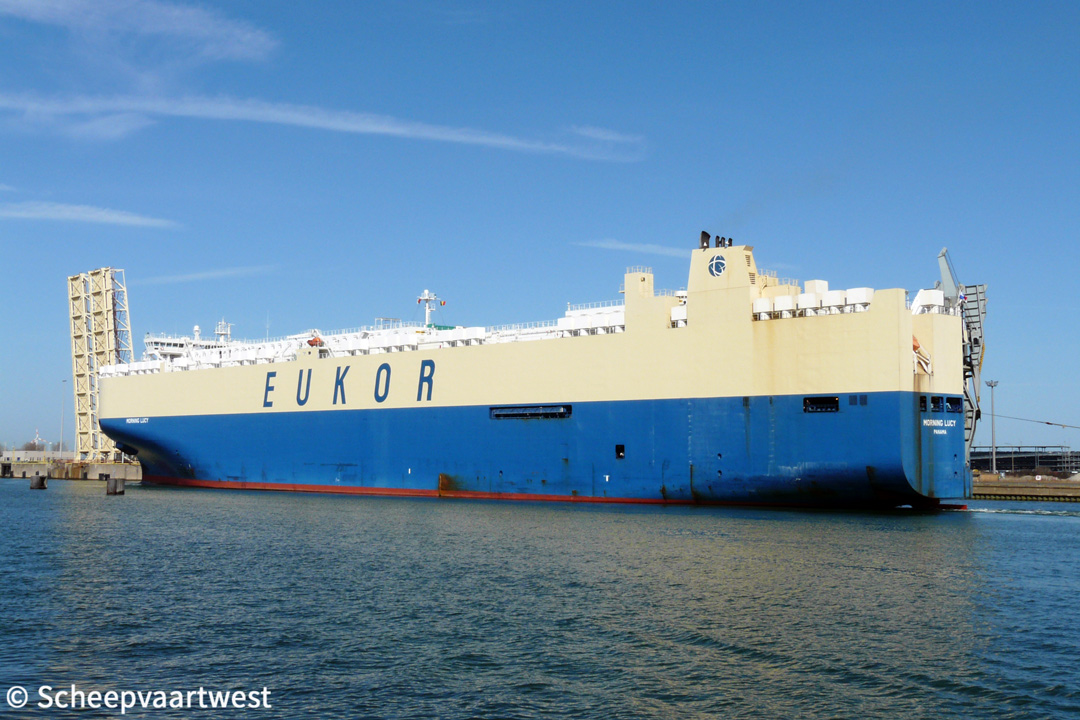

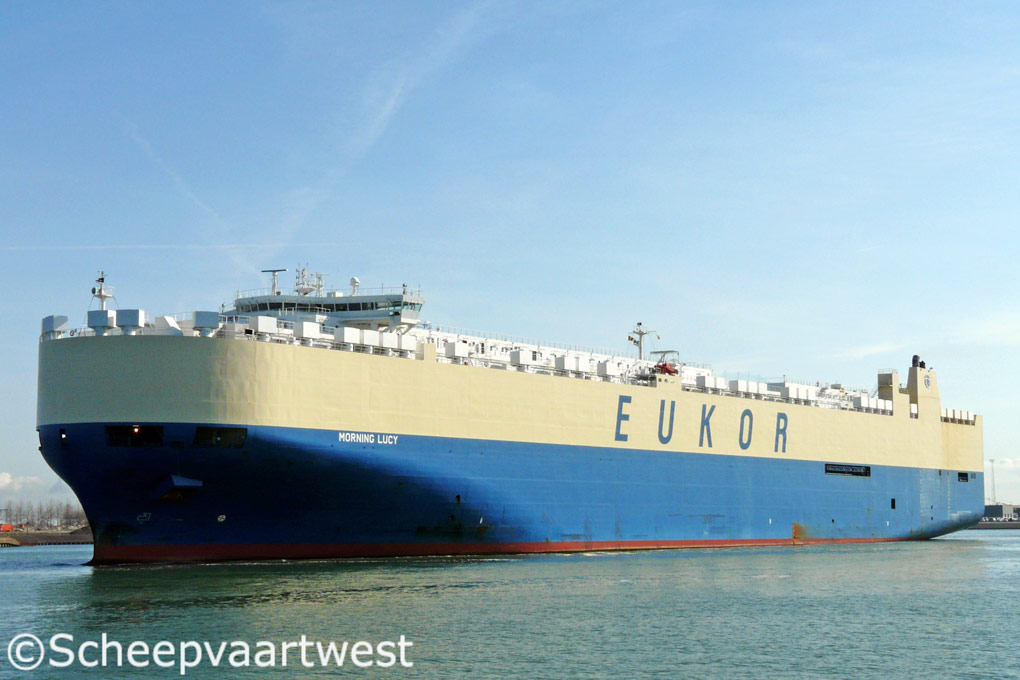

| Zeebrugge 11/03/12 | Zeebrugge 11/03/12 | Zeebrugge 11/03/12 | Westerschelde 18/04/16 |
|
Name |
MORNING LUCY |
|
Type |
Roll-On/Roll-Off vehicle carrier PCTC - Pure car and Truck carrier |
|
IMO-number |
9383431 |
|
Call sign |
3FWJ |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
68.701 t |
|
DWT |
28.080 t |
|
NT |
24.507 t |
|
Length |
232,37 m overall |
|
Breadth |
32,30 m extreme |
|
Draught |
10,02 m |
|
Reg. dimensions L x B x D |
225,52 x 32,26 x 20,11 m |
|
Rule dimensions L x B x D |
222,40 x 32,26 x 14,30 m |
|
Freeboard |
Summer: 3.020 mm |
|
Depth |
32,64 m |
|
Speed |
19,6 knots |
|
Built |
2009 |
|
Keel laid |
09/08/2008 |
|
Launch date |
25/10/2008 |
|
Date of completion |
23/04/2009 |
|
Builder |
Hyundai Samho Heavy Ind. Co., Ltd. 1700, Yongdang-Ri, Samho-Eup 526-701 Youngam-Gun Republic of Korea |
|
Yard number |
S332 |
|
Hull material |
Steel |
|
Watertight bulkheads |
Transverse: 4 |
|
Main engine |
1x MAN-B&W 7S60MC Mk VI - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 14.280 kW / 19.415 hp at 105,0 rpm Build: 06/2008 Manufacturer: Hyundai Heavy Ind. Engine & Machinery Ulsan South Korea |
|
Propeller |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, water tube - 8,8 kg/cm² Heating surface: 25,0 m² 2x Economizer EGE - 11,8 kg/cm² Heating surface: 249 m² Build: 04/2008 Builder: Kangrim Heavy Industries Co., Ltd. Changzhou People's Republic of China |
|
Generators |
3x Man 7L28/32H main diesel generatorset each 1.540 kW / 1.750 kVA at 750 rpm - 450 Volt |
|
Bow thruster |
2.000 kW |
|
Number of cars |
6.182 |
|
Number of decks |
7 |
|
Number of ramps |
2 |
|
Tank capacities |
Fuel oil: 5.377,80 m³ Fresh water: 323,80 m³ Water ballast: 7.509,40 m³ |
|
Anchor chain |
Length: 687,5 m Diameter: 84 mm |
|
Crew |
24 |
|
Commerical manager |
Eukor Car Carriers Inc. 28th Floor, Lotte World Tower, 300, Olympic-ro, Songpa-gu, Seoul, 05551 South Korea |
|
ISM Manager |
Wilhelmsen Ship Management (Korea) Ltd. 10th Floor, Marine Center Building, 52, Chungjang-daero 9beon-gil, Jung-gu Busan, 48936 South Korea |
|
Registered owner |
S332 International S.A. - Republic of Panama Care of EUKOR Car Carriers Inc , 28th Floor, Lotte World Tower, 300, Olympic-ro, Songpa-gu Seoul, 05551 South Korea |
|
Latest data adjustment |
15 March 2022 |
