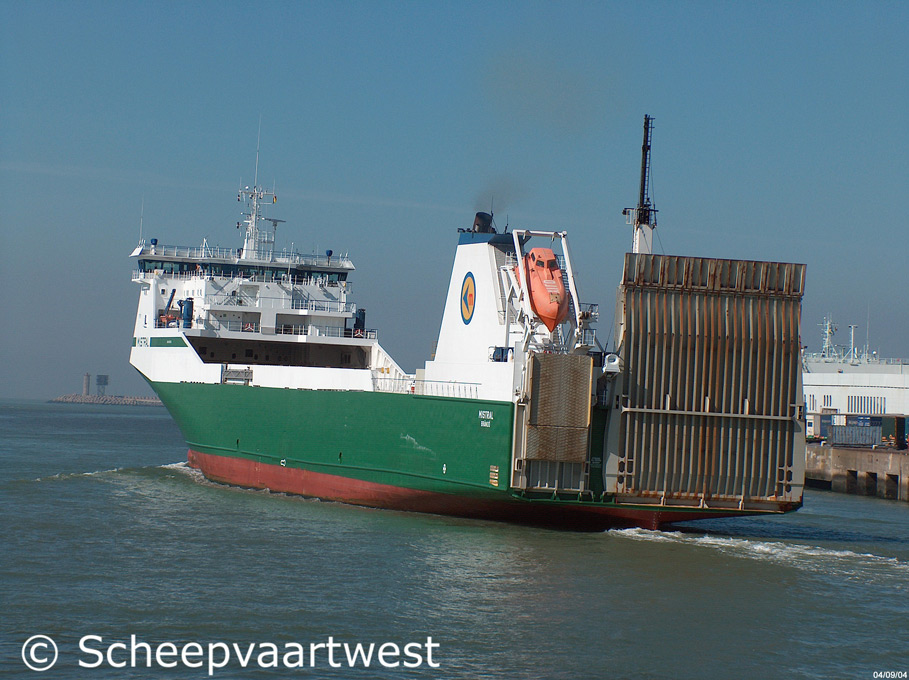

Mistral 05
Zeebrugge, Belgium 04 September 2004

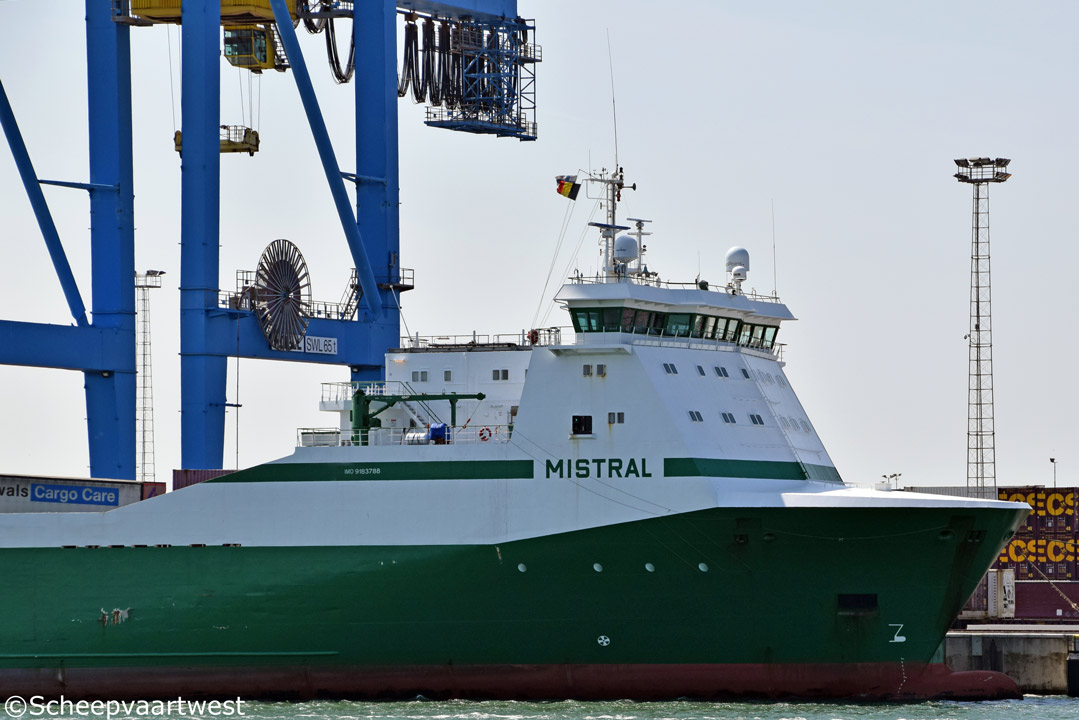

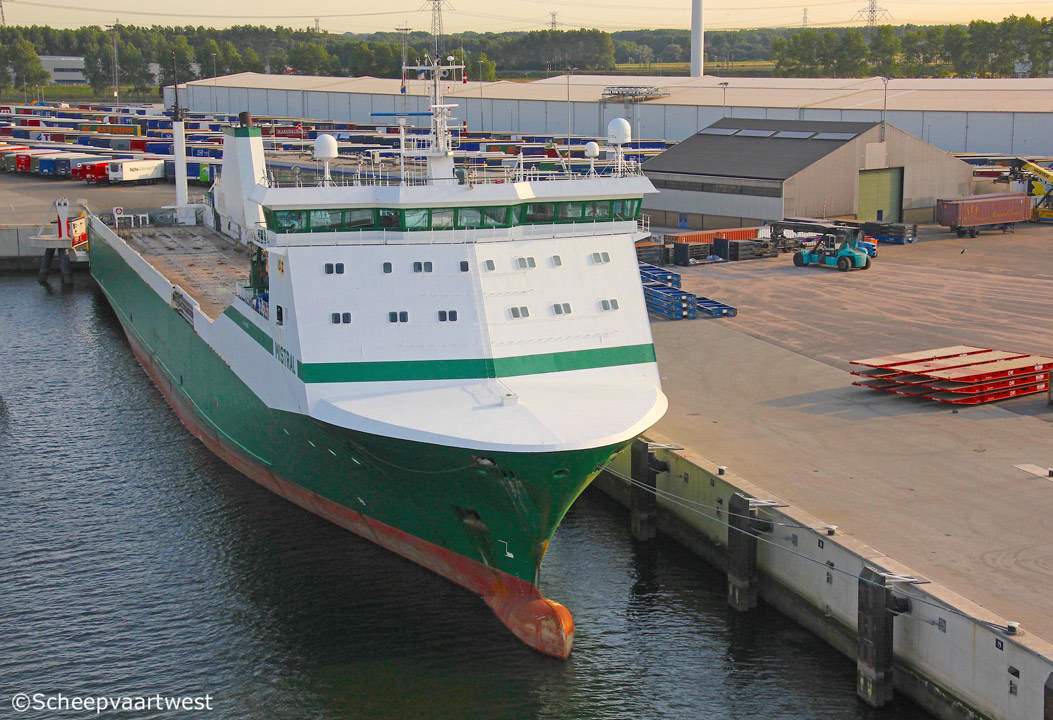

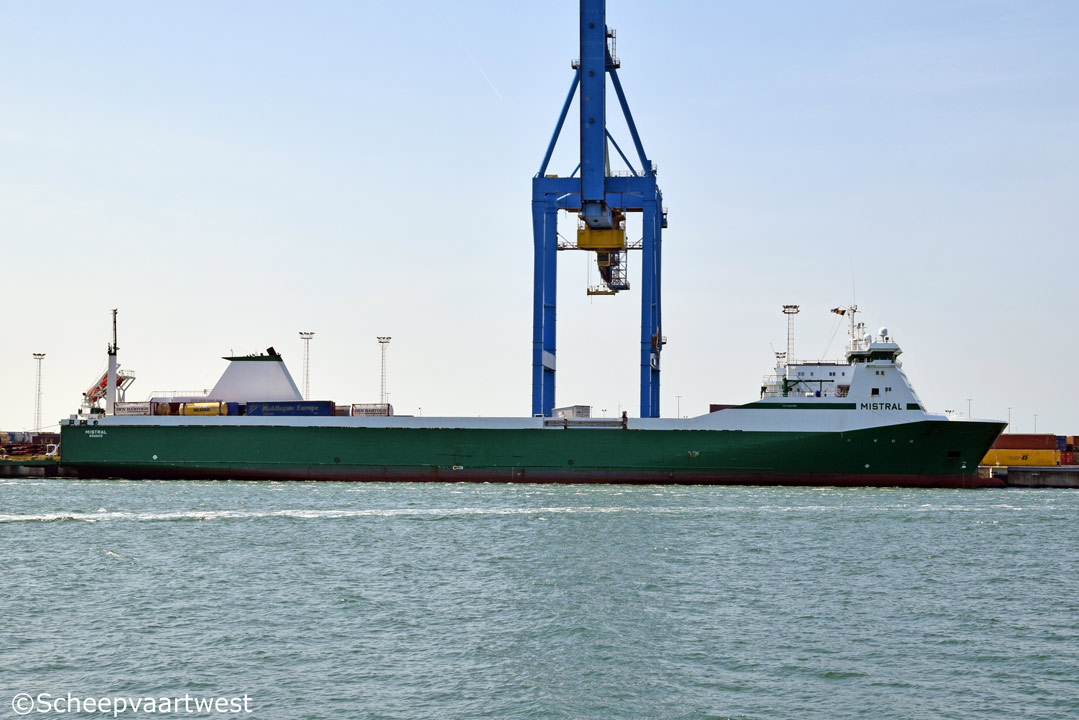

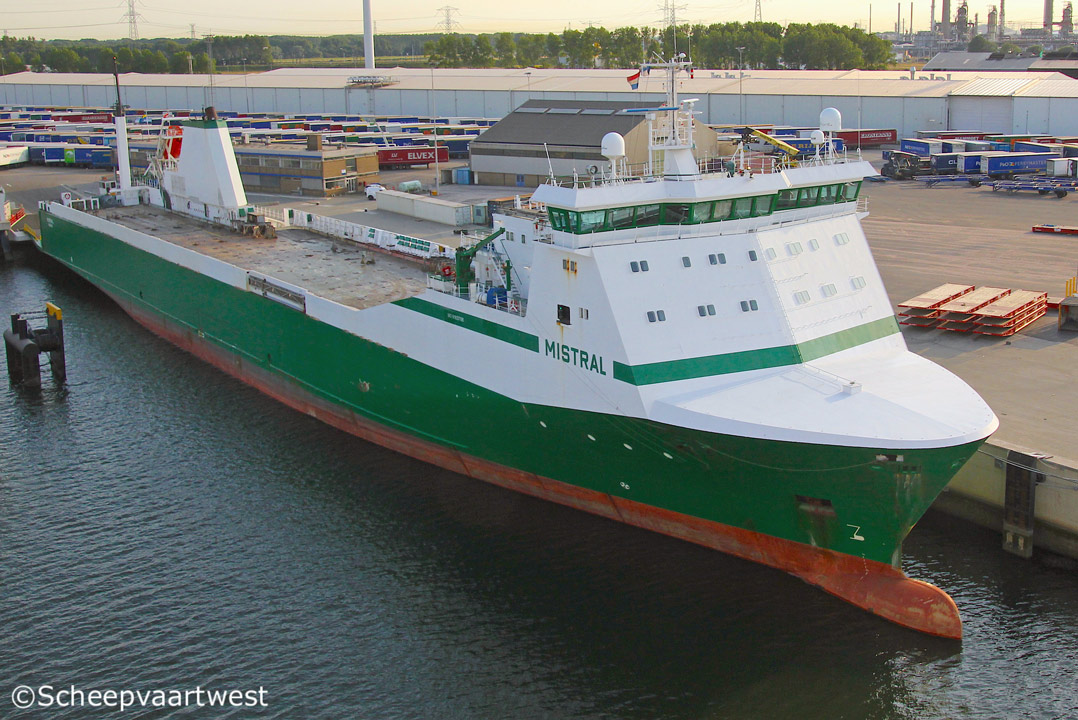

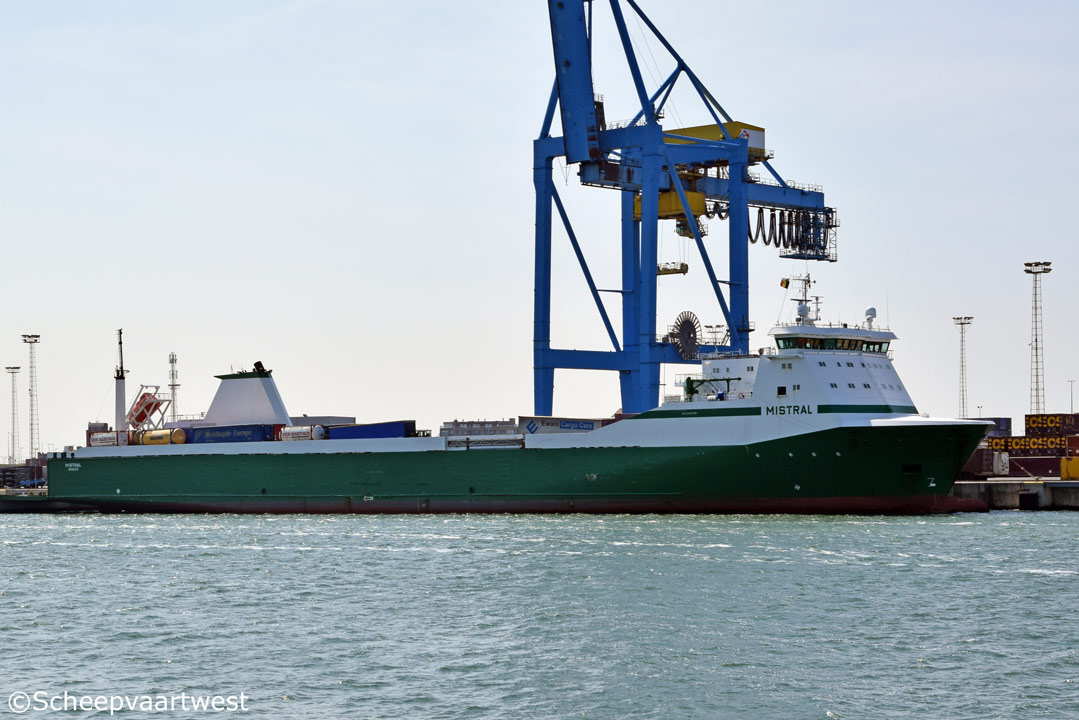

Mistral 08   Mistral 09   Mistral 11   Mistral 10   Mistral 12   Mistral 13
Zeebrugge 05/08/16 Zeebrugge 10/05/17 Zeebrugge 10/05/17 Zeebrugge 10/05/17   Europoort 07/07/18   Europoort 07/07/18



Name

MISTRAL

Type

Roll-On/Roll-off vessel - Car carriage - Equipped for carriage of container

Main purpose

Military vehicle - General cargo - Container - Passenger and Train carriage

IMO-number

9183788

Call sign

OJIX

Flag

Finland

Port of registry

Brändö

GT

10.471 t

DWT

7.438 t on 7,00 m draught

NT

3.141 t

Container capacity

303 TEU or 141 FEU plus 21 TEU

Reefer plugs

50 Reefer plugs on main deck and weather deck
Reefer plugs 4 pole, 380/440 V, 50/60 Hz, 32 A

Length

153,44 m overall
142,80 m between perpendicular
146,20 m registered

Breadth

20,85 m overall
20,60 m moulded

Draught

Summer: 6,98 m

Forecastle

28,59 m

Lane metres

1.624

Freeboard

1.443 mm

Depth

14,15 m moulded

Speed

20,3 knots

Built

1999

Keel laid

17.12.1997

Launch date

20.11.1998

Date of completed

02.01.1999

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
Neuenfelde
21129 Hamburg
Federal Republic of Germany

Yard number

1183

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double hull
Double bottom

Watertight bulkheads

5

Continuous decks

2

Main engine

1x Wärtsilä 12V46C - 4 stroke 12 cylinder single acting 460 x 580 mm diesel engine- 12.600 kW
Built: 1998
Builder: Wärtsilä Helsinki - Finland

Number of screws

1x Controllable pitch propeller - aft

Boilers

1x Thermal oil heater, oil fired -10,0 bar
Heating surface: 62,0 m²
1x Thermal oil heater, exhaust gas heated - 10,0 bar
Heating surface: 146,0 m²
Year of manufacture: 1998
Manufacturer: PWT Prozesswärmeträgertechnik GmbH

Electric installations

1x 380/220 V - 1.200 kVA
1x 380 V - 1.750 kVA
1x 380 V - 400 kVA

Shaft generator

1x 1.750 kVA

Generators

2x Main diesel generatorsets each 600 kVA

Emergency generator

1x 400 kVA

Compressed air receivers

2x Receivers, each 1.000 litres - 30,0 bar
1x Receiver 750 litres - 11,0 bar

Bow thruster

1x Fixed pitch propeller KAMEWA - 800 kW forward

Stern thruster

1x Fixed pitch propeller KAMEWA - 495 kW aft

Cargo capacity

Bales: 14.599 m³

Tank capacities

Bunker: 840 t
Fuel oil: 840 m³
MGO: 153 m³
Water ballast 3.963 m³

Anchor equipment

3x Anchors weight each 4.590 kg
Chain length: 558,00 m
Diameter: 52 mm

Number of passengers

12

Manager

Godby Shipping Ab
Södragatan 13
AX-22100 Mariehamn
Finland

Owner

Minicarriers
Kyrkvägen 11
22411 Godby
Finland

Register owner

Oy Trailer-Link Ab

Latest data adjustment

17 October 2016
