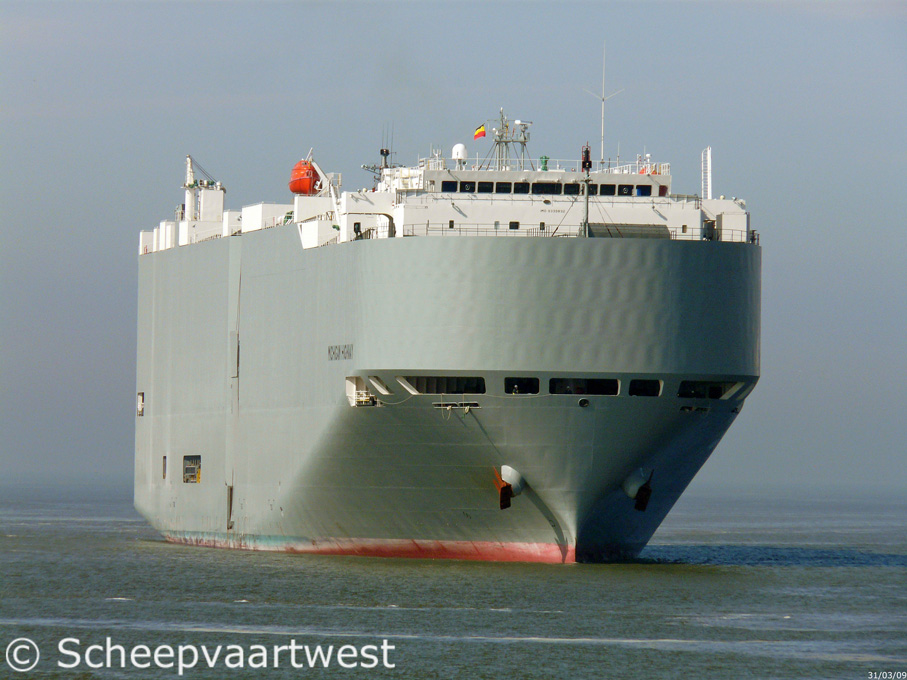

Michigan Highway 03
Zeebrugge 31 March 2009

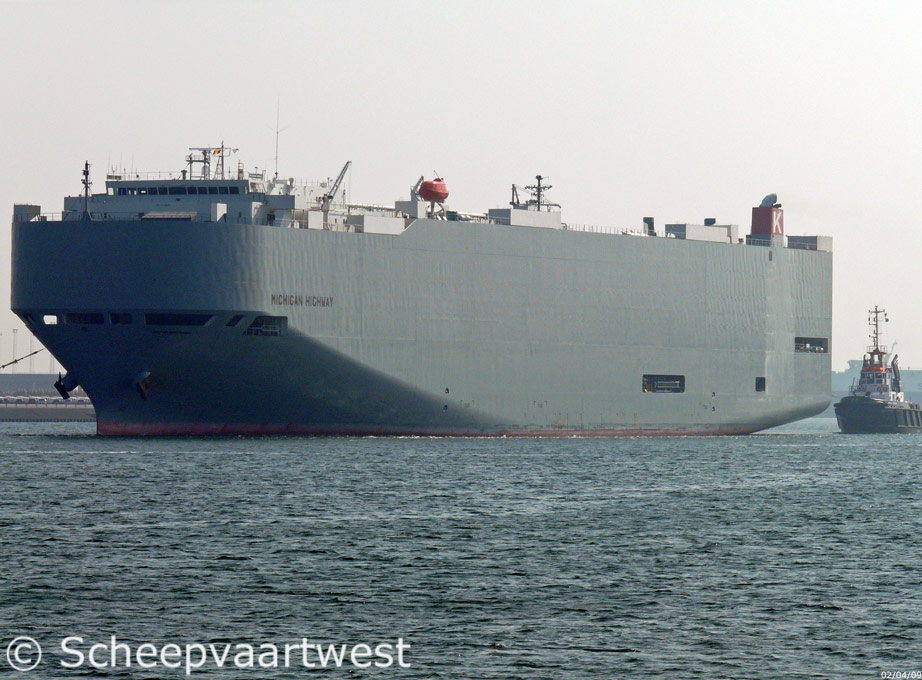

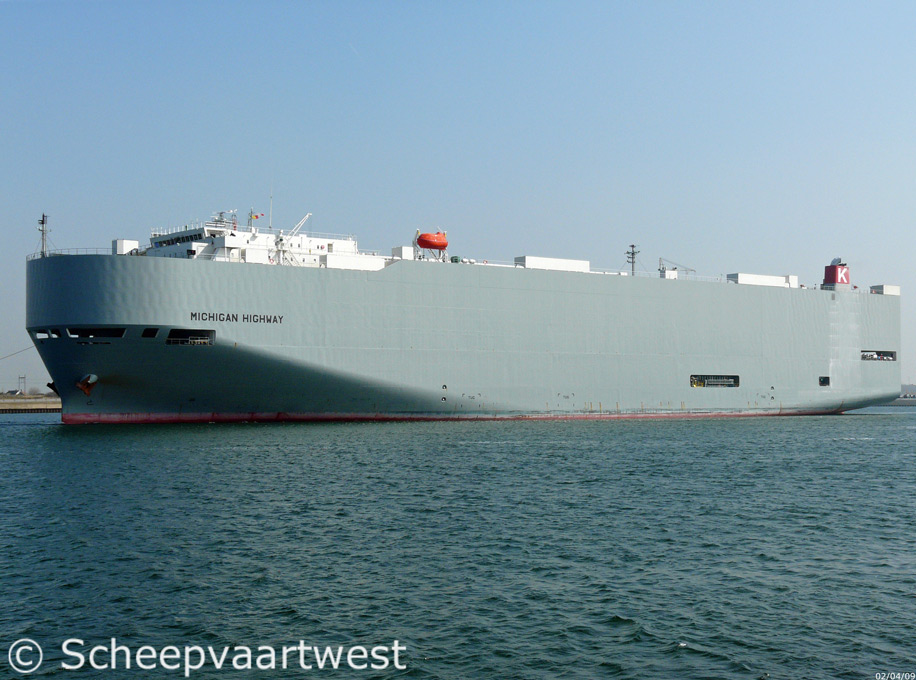

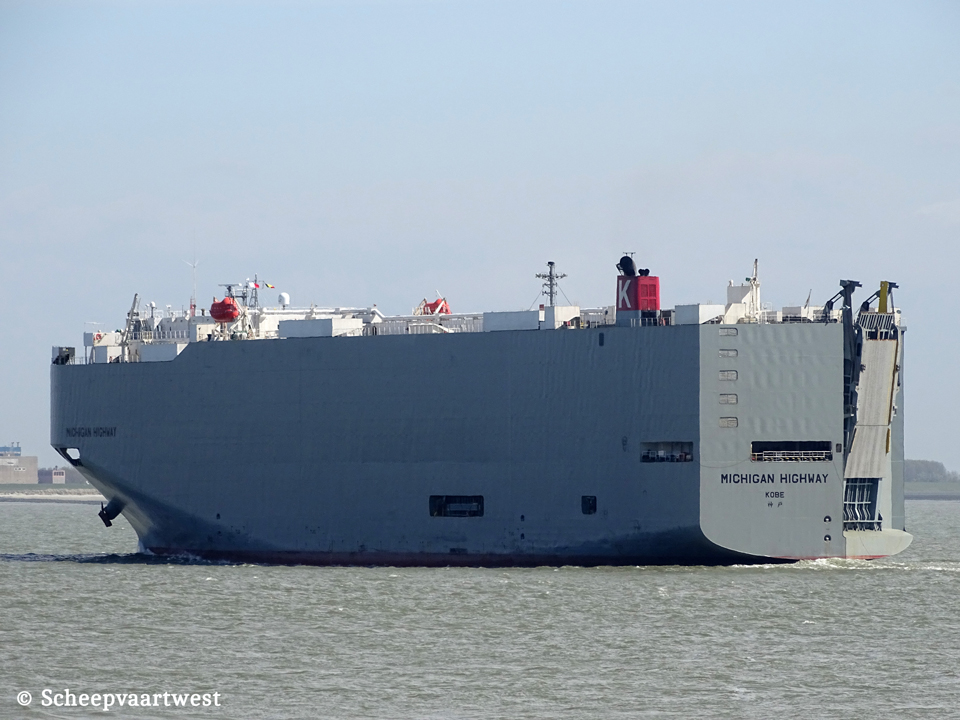

Michigan Highway 09   Michigan Highway 14   Michigan Highway IMO 9339832 21
Zeebrugge 02/04/09 Zeebrugge 02/04/09   Westerschelde 23/04/18


Name

MICHIGAN HIGHWAY

Type

Roll-On/Roll-Off carrier - Vehicles carrier

IMO-number

9339832

Call sign

7JCW

Flag

Japan

Port of registry

Kobe

GT

56.951 t

36.408 t registered

DWT

17.673 t

NT

19.643 t

Length

199,94 m overall

190,00 m between perpendiculars

Breadth

32,26 m overall

Moulded L x B x D

192,00 x 32,26 x 13,90 m

Registered L x B x D

194,99 x 32,26 x 20,36 m

Draught

Summer: 9,826 m

Freeboard

Summer: 4.114 mm

Depth

34,80 m

Speed

20,5 knots

Built

2008

Keel laid

01/12/2004

Launch date

28/11/2007

Date of completion

14/02/2008

Builder

Toyohashi shipbuilding Co., Ltd.

Toyohashi

Japan

Yard number

3605

Hull material

Steel

Hull type

Single hull

Main engine

1x Kawasaki/MAN-B&W 8S50MC-C - 2 stroke single acting 8 cylinder 500 x 2.000 mm combustion engine 11.935 kW / 16.231 bhp at 127,0 rpm

Manufacturer: Kawasaki Heavy Industries, Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 530 mm

Propeller

1

Boiler

1x Auxiliary vertical boiler - 7,9 bar

Evaporation: 3,33 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Generatorsets total 4.275 kW

Car capacity

6.135

Tank capacities

Fuel oil: 3.185 m³

Fresh water: 589 m³

Water ballast: 6.070 m³

Lifting equipment

3x Cranes - SWL 4,0 t each

1x Elevator - SWL 375 kg

Crew

21

Manager

"K" Line RoRo Bulk Ship Management Co., Ltd.

Operator

K-Line - Kawasaki Kisen Kaisha Line Ltd.

Registered owner

K-Line - Kawasaki Kisen Kaisha Line Ltd.

Tokyo

Japan

Latest data adjustment

27 April 2023
