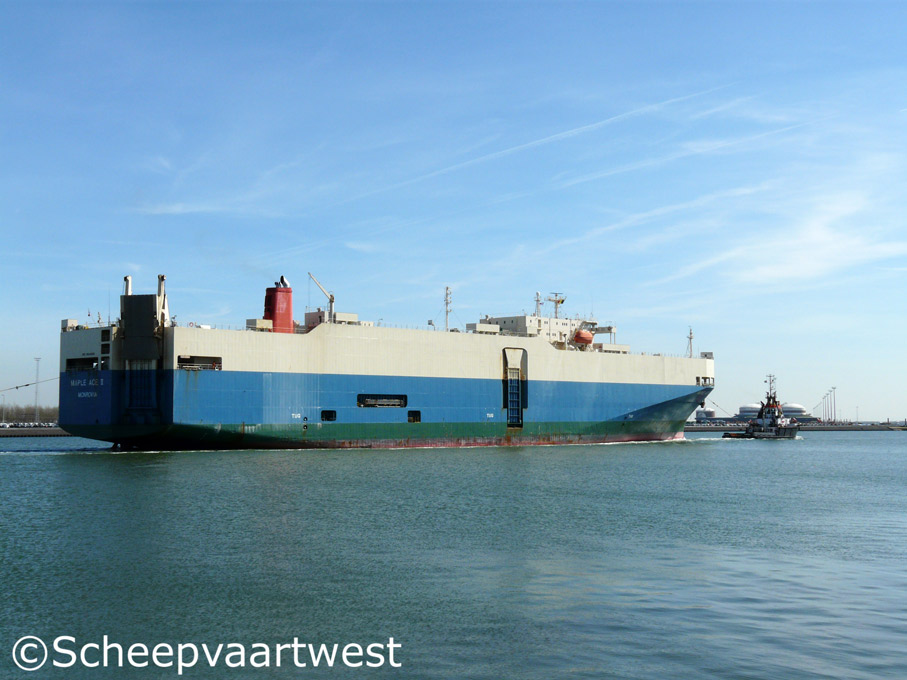

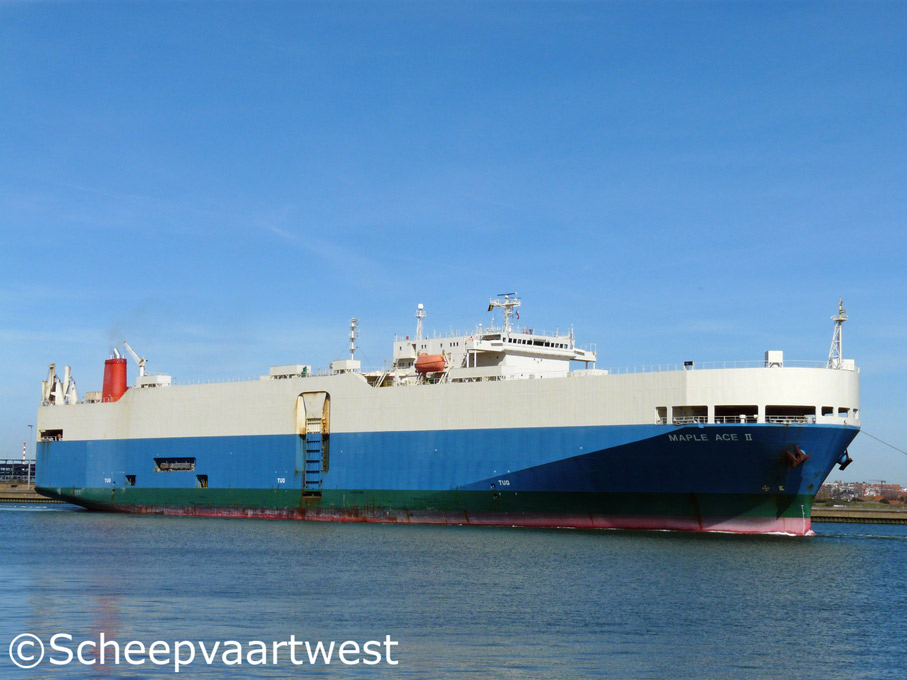

| Zeebrugge 06 April 2011 |
 |
 |
|

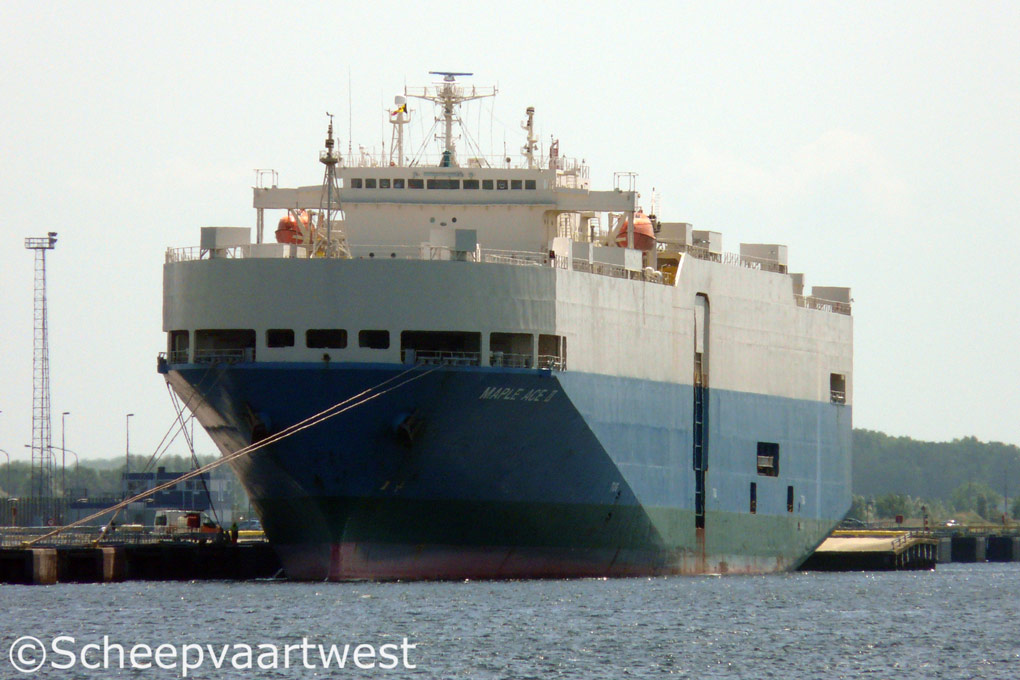

| Zeebrugge 06/04/11 | Zeebrugge 29/06/11 |
|
Name |
MAPLE ACE II |
|
Type |
Vehicles carrier |
|
IMO-number |
9014808 |
|
Call sign |
ELPQ9 |
|
Flag |
1993 Liberia |
|
Previous flag |
1992 - 1993 Republic of Panama |
|
Port of registry |
Monrovia |
|
GT |
38.349 t |
|
DWT |
15.361 t |
|
NT |
11.505 t |
|
Length |
188,03 m overall |
|
Breadth |
28,20 m |
|
Draught |
Summer: 8,419 m |
|
Moulded L x B x D |
178,00 x 28,20 x 11,50 m |
|
Registered L x B x D |
182,00 x 28,20 x 20,79 m |
|
Freeboard |
Summer: 3.107 mm |
|
Depth |
20,790 m |
|
Speed |
Service: 18,0 knots Trial: 19,7 knots |
|
Built |
1992 |
|
Keel laid |
13.11.1991 |
|
Launch date |
16.03.1992 |
|
Date of completion |
24.07.1992 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. |
|
Yard number |
2737 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi 6UEC60LA - 2 stroke single acting 6 cylinder 600 x 1.900 mm diesel engine - 9.265 kW / 12.597 hp at 110,0 rpm Manufacturer: Kobe Hatsudoki K.K., Tarami - Japan |
|
Propeller |
1x Variable pitch propeller - aft at 110,0 rpm |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device |
|
Boiler |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 2,40 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Main diesel generatorsets each 2.949 kVA |
|
Bow thruster |
1x 920 kW / 1.251 bhp |
|
Number of vehicle decks |
10 |
|
Cargo capacity |
Cars: 3.241 Cars / Trucks: 2304 / 204 |
|
Ramps |
2 - (1 side & 1 stern) |
|
Tank capacities |
Fuel oil: 2.473 m³ Fresh water: 326 m³ Water ballast: 7.704 t |
|
Lifting equipment |
1x Crane - SWL 0,9 t 2x Cranes - SWL 4,0 t each |
|
Crew |
22 |
|
Manager |
MOL Ship Management (Singapore) Pte. Ltd. |
|
Operator |
Mitsui OSK Lines Ltd. |
|
Owner |
Maple Car Transport Corp. |
