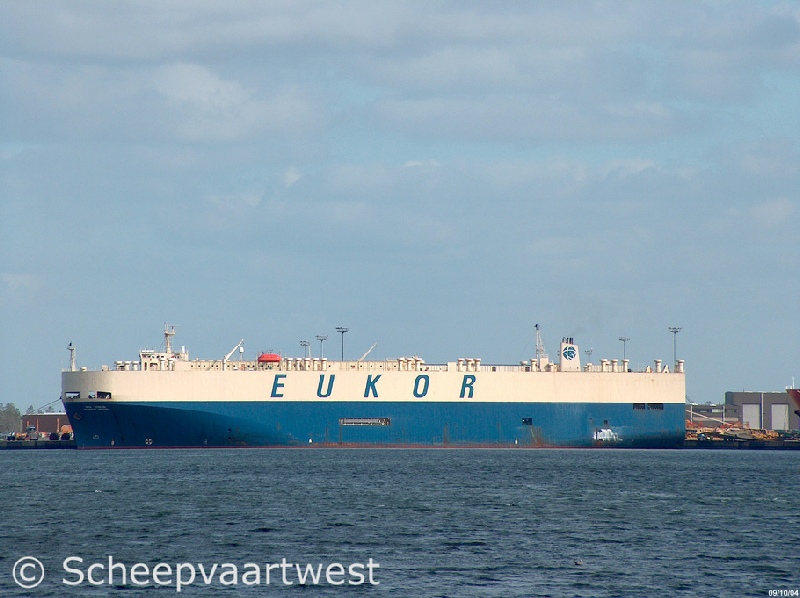

| Zeebrugge 09 October 2004 |
|
Name |
HYUNDAI No 206 |
|
Previous names |
1993 Oriental Beauty |
|
Type |
Roll-On/Roll-Off vehicles carrier |
|
IMO-number |
8709157 |
|
Call name |
3FSX8 |
|
Flag |
Republic of Panama |
|
Previous flags |
1997 - Republic of Panama 1998 - South Korea |
|
Port of registry |
Panama |
|
GT |
42.247 t |
|
DWT |
12.706 t |
|
NT |
12.674 t |
|
Length |
183,89 m overall 175,22 m registered |
|
Breadth |
30,64 m over all |
|
Reg. Dimensions L x B x D |
175,22 x 30,60 x 19,38 m |
|
Rule dimensions L x B x D |
174,00 x 30,60 x 14,21 m |
|
Draught |
Summer: 10,00 m |
|
Freeboard |
Summer: 6.021 mm |
|
Depth |
14,21 m |
|
Speed |
19,7 knots |
|
Built |
1987 |
|
Keel laid |
22.05.1987 |
|
Launch date |
15.10.1987 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. |
|
Yard number |
H-604 |
|
Hull type |
Single hull |
|
Bulkheads |
4x Watertight |
|
Number of decks |
7 |
|
Main engine |
1x 8 Cylinder 600 x 1.944 mm engine - 10.591 kW at 111,0 rpm Built: 07-1987 Builder: Hyundai Engine & Machinery Co., Ltd. South Korea |
|
Propellers |
1x Single screw |
|
Boilers |
1x Auxiliary water tube boiler - 8,0 bar Heating surface area: 18,0 m² Built: 06-1987 Builder: Hyundai Heavy Industries Co. Ltd., |
|
Generators |
3x Main diesel generatorsets each 812 kVA - 450 V |
|
Car capacity |
4.864 |
|
Tank capacities |
Fuel oil: 2.323 m³ |
|
Manager |
Hyundai Merchant Marine |
|
Operator |
EUKOR Car Carriers |
|
Technical manager |
Hyundai Merchant Marine Co. Ltd. |
|
Owner |
Norwegian Car Carriers KS |
