| Zeebrugge 29 October 2009 |
|
Name |

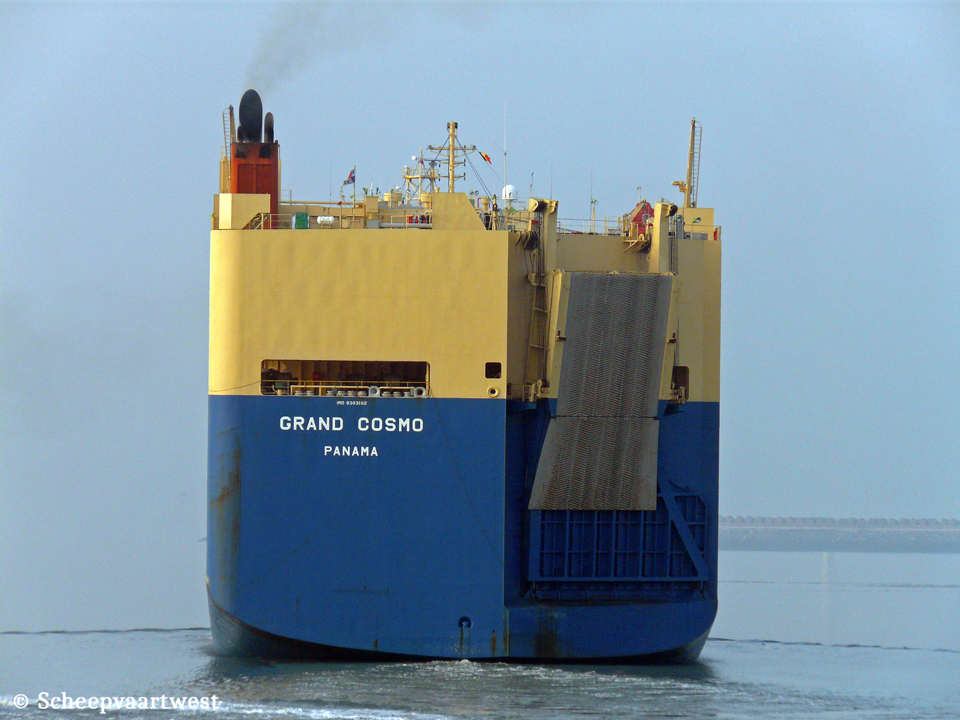

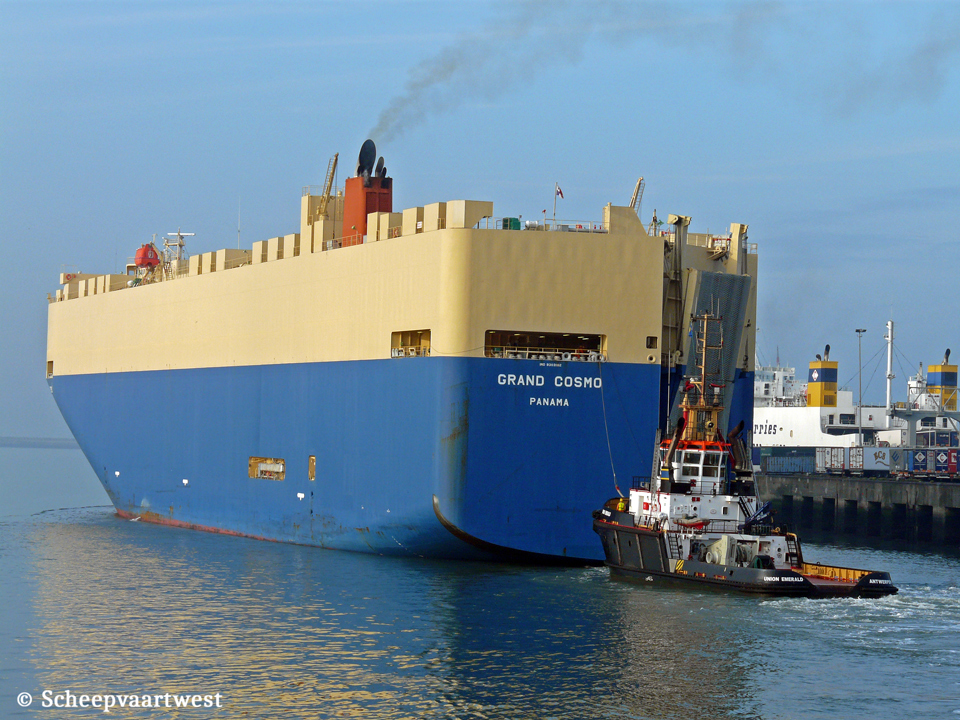

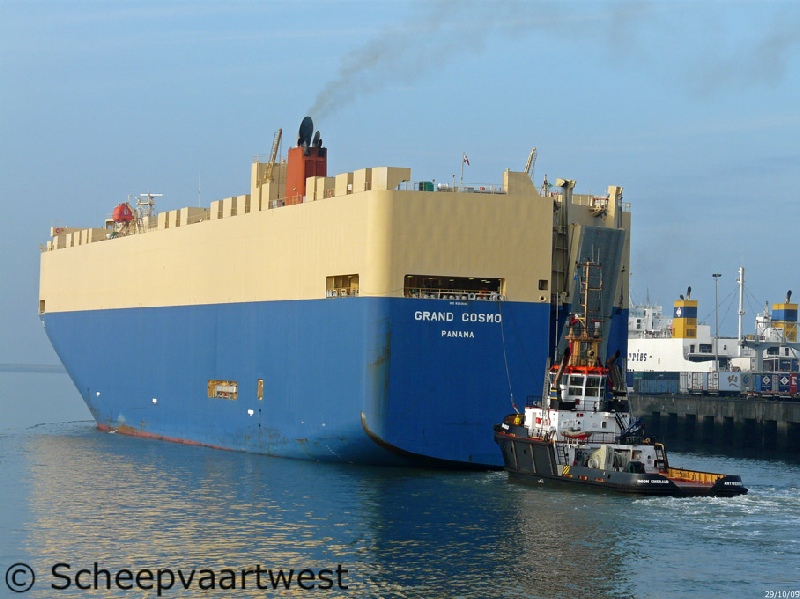

GRAND COSMO |
|
Type |
Vehicles carrier |
|
IMO-number |
9303182 |
|
Call sign |
3EDQ |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
59.217 t |
|
DWT |
18.288 t |
|
NT |
17.766 t |
|
Length |
199,90 m overall 192,00 m between perpendiculars |
|
Breadth |
32,26 m |
|
Reg. Dimensions L x B x D |
194,70 x 32,26 x 25,33 m |
|
Rule Dimensions L x B x D |
192,00 x 32,26 x 35,80 m |
|
Draught |
Summer: 9,63 m |
|
Freeboard |
Summer: 4.664 mm |
|
Speed |
20,6 knots |
|
Built |
2006 |
|
Keel laid |
03.11.2004 |
|
Launch date |
01.11.2005 |
|
Date of completion |
16.01.2006 |
|
Builder |
Shin Kurushima Toyohashi Shipbuilding C0., Ltd. |
|
Yard number |
3581 |
|
Hull type |
Single hull |
|
Bulkheads |
5 - Watertight |
|
Main engine |
1x Mitsui - 2 Stroke single acting 7 cylinder diesel engine 600 x 2.292 mm - 14.280 kW at 105,0 rpm Date of manufacturer: 2004 Manufacturer: Mitsui Engineering & Shipbuilding Co.,Ltd. Tamano Works Tamano |
|
Number of screws |
1 |
|
Boilers |
1x Auxiliary steam tube boiler - 7,0 bar Heating surface: 44,8 m² 1x Auxiliary steam tube boiler - 10,0 bar Heating surface: 171,20 m² Date of manufacture: 2003 Manufacturer: Ehime |
|
Generators |
4x Main diesel generatorsets 1.200 kVA - 450 Volt |
|
Number of decks |
9 |
|
Tank capacities |
Fuel oil: 3.132 m³ Fresh water: 466 m³ Ballast water: 10.155 m³ |
|
Crew |
20 |
|
Manager |
Cido Shipping(Korea) Co., Ltd. |
|
Technical manager |
Cido Shipping(korea) Co., Ltd. (Pusan Site) |
|
Owner |
Dynamic Enterprise Marine S.A. |
