| Westerschelde 14 June 2019 |
 |
 |
 |
 |
 |
||||

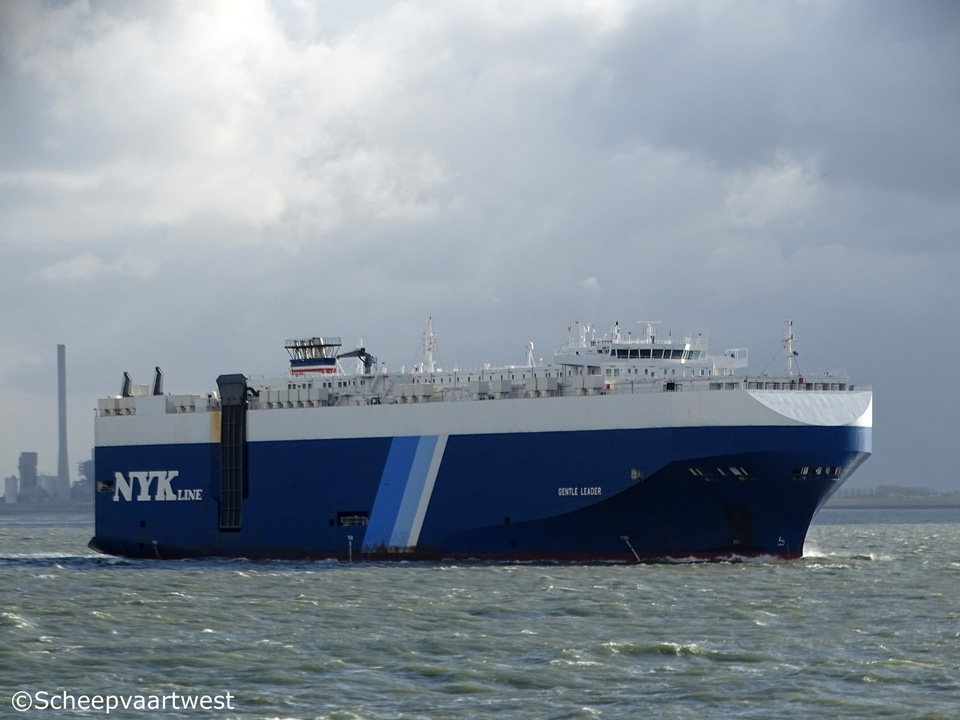

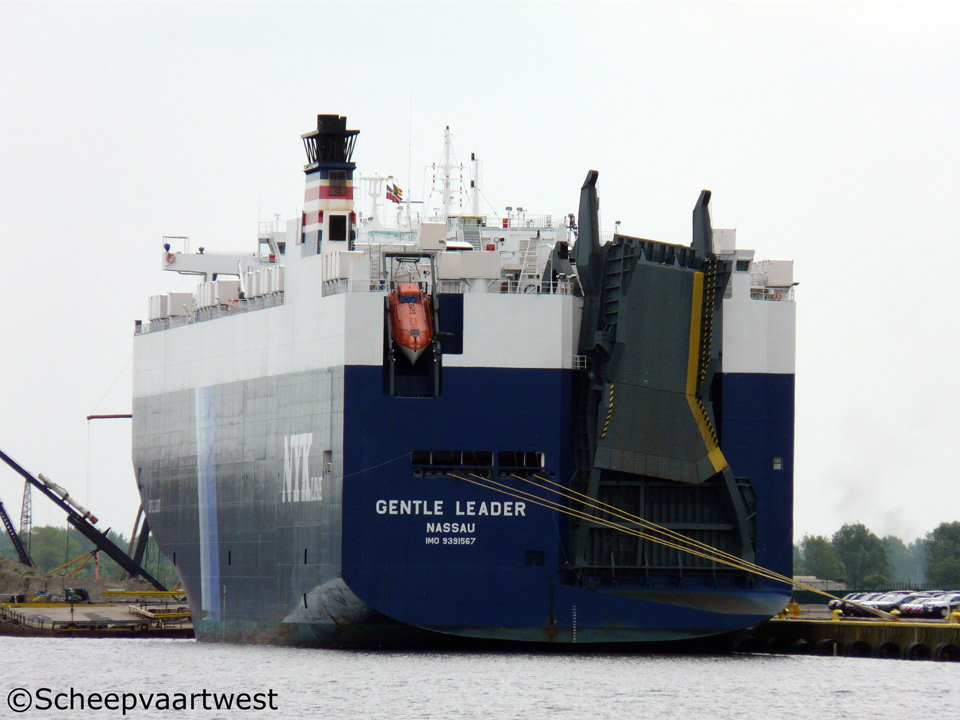

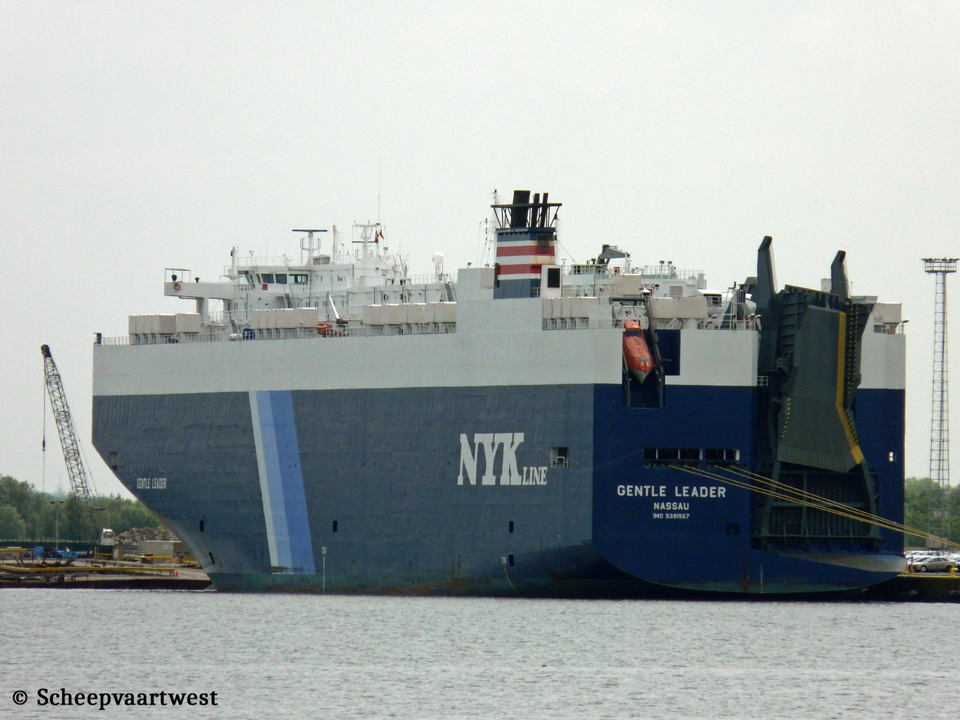

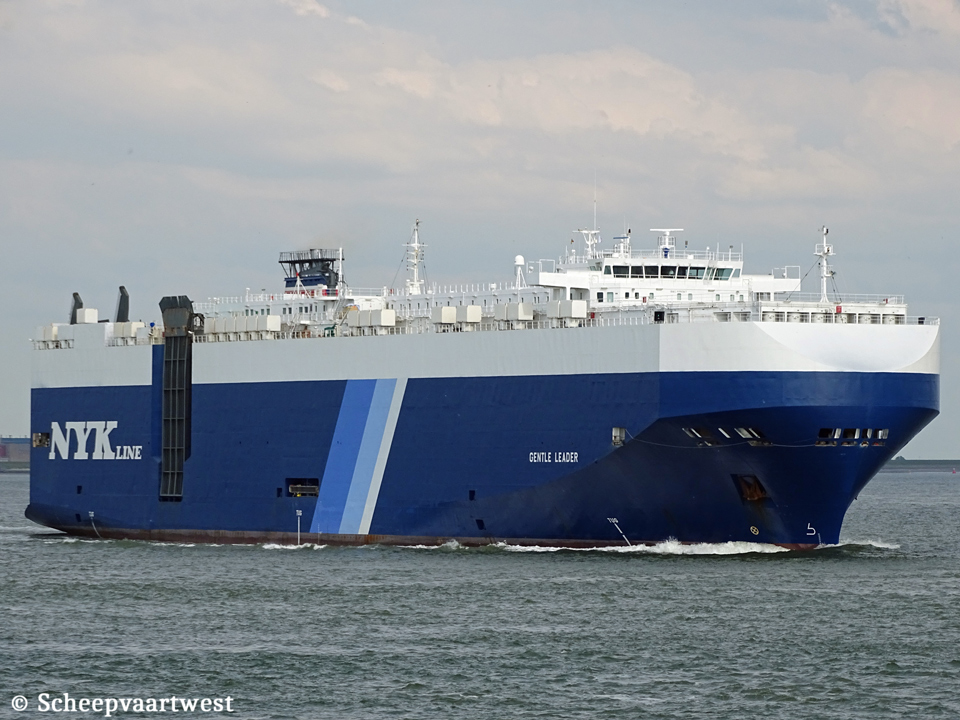

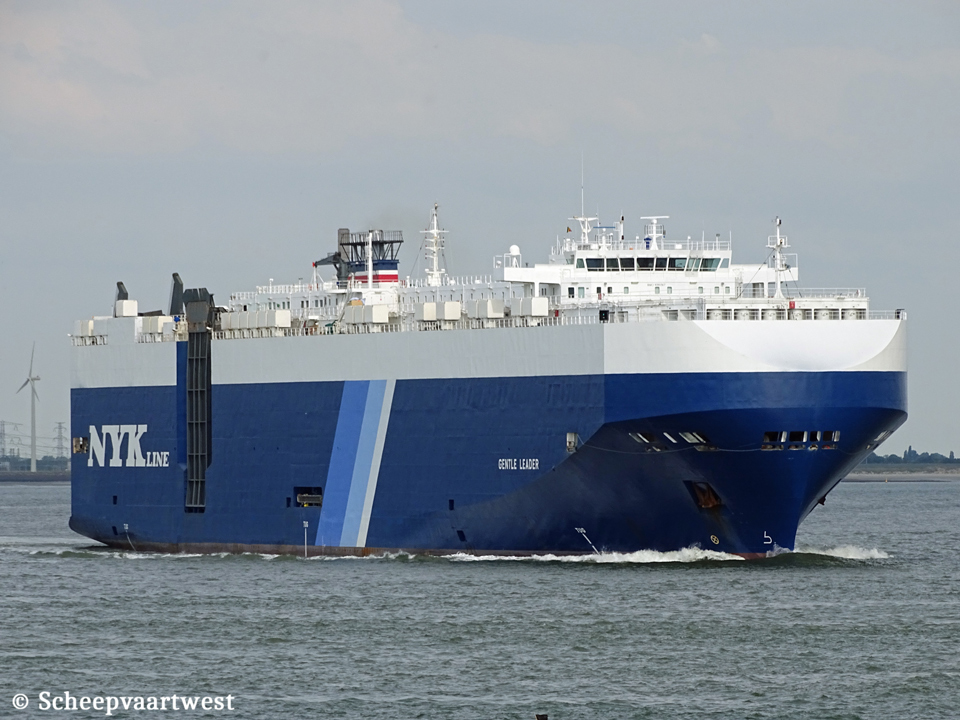

| Westerschelde 14/06/19 | Westerschelde 14/06/19 | Westerschelde 06/11/16 | Zeebrugge 13/06/10 | Zeebrugge 13/06/10 | ||||
|
Name |
GENTLE LEADER |
|
Type |
Roll-Of/Roll-On vehicles carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9391567 |
|
Call sign |
C6WY9 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
57.692 |
|
DWT |
21.122 t |
|
NT |
21.037 |
|
Length |
199,92 m overall 188,34 m between perpendiculars |
|
Breadth |
32,26 m extreme |
|
Draught |
Summer: 10,00 m |
|
Freeboard |
3.647 mm |
|
Depth |
32,70 m |
|
Speed |
21,0 knots |
|
Built |
2008 |
|
Keel laid |
28/11/2007 |
|
Launch date |
23/08/2008 |
|
Delivery |
02/10/2008 |
|
Builder |
Stocznia Gdynia S.A. ul. Czechoslowacka 3 81-963 Gdynia Poland |
|
Yard number |
8168/22 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Trans. Bulkheads |
3 |
|
Main engine |
1x MAN-B&W 7S60ME-C- 7 cylinder combustion engine 14.161 kW at 105,0 rpm Builder: MAN Diesel & Turbo, Branch of MAN Diesel & Turbo SE, Germany |
|
Propeller |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas water tube AV-7 - Aalborg Industries A/S 1x Auxiliary boiler, vertical shell type - Mission OS - Aalborg Industries A/S |
|
Generators |
3x MAN B&W 7L28/32H main diesel generatorsets |
|
Emergency generator |
1x MAN D2866 LXE20 diesel generatorset Builder: MAN Truck & Bus AG - GE Motoren-Nürnberg - Germany |
|
Bow thruster |
1x Brunvoll ype FU 80 LTC 2250 - 1.300 kW |
|
Bulkheads |
Transverse: 3 |
|
Number of decks |
8 |
|
Car capacity |
6.400 |
|
Car deck area |
54.900 m² |
|
Stern rump |
Length: 38,00 m Width: 7,00 m Capacity: 150 t |
|
Anchor chain |
Length: 660,00 m Diameter: 78 mm |
|
Lifting equipment |
1x Crane - SWL 5,0 t |
|
Tank capacities |
Ballast: 7.400 m³ Fuel oil: 3.350 m³ Diesel oil: 130 m³ Lub oil: 150 m³ Potable water: 260 m³ |
|
Crew |
23 |
|
Commercial manager |
Ray Car Carriers Ltd. 33-37, Athol Street Douglas Isle of Man IM1 1LB |
|
ISM manager |
Stamco Ship Management Company Ltd. 21 Akti Miaouli Street 185 35 Piraeus Greece |
|
Operator |
NYK-Line - Nippon Yusen Kaisha Line |
|
Registered owner |
Gentle Maritime Limited c/o Ray Car Carriers Ltd. 33-37, Athol Street Douglas Isle of Man IM1 1LB |
|
Latest data adjustment |
24 April 2025 |
