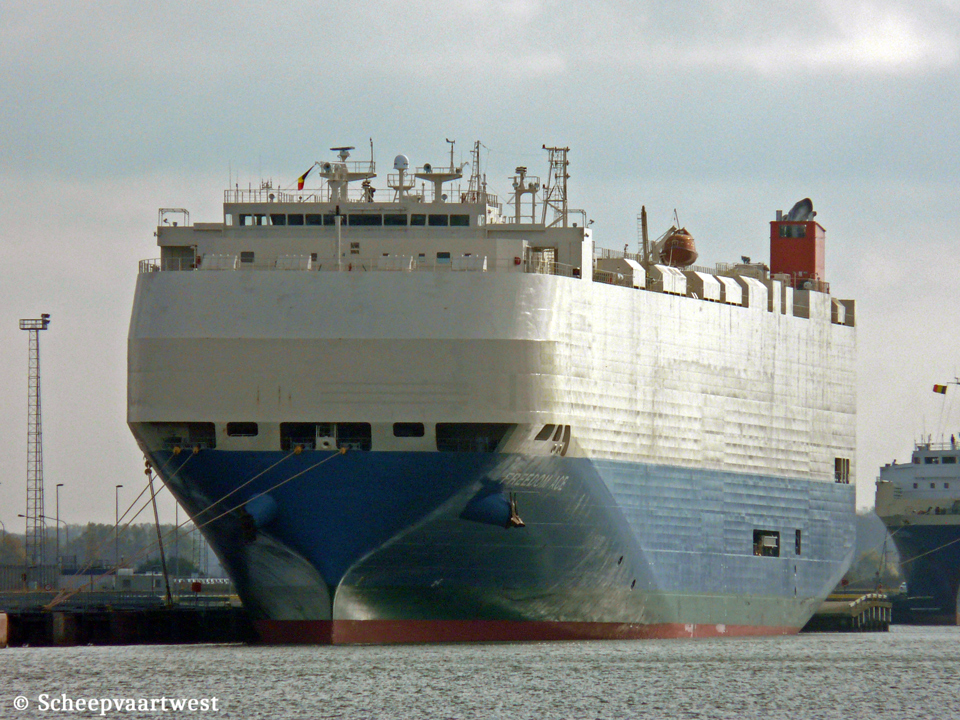

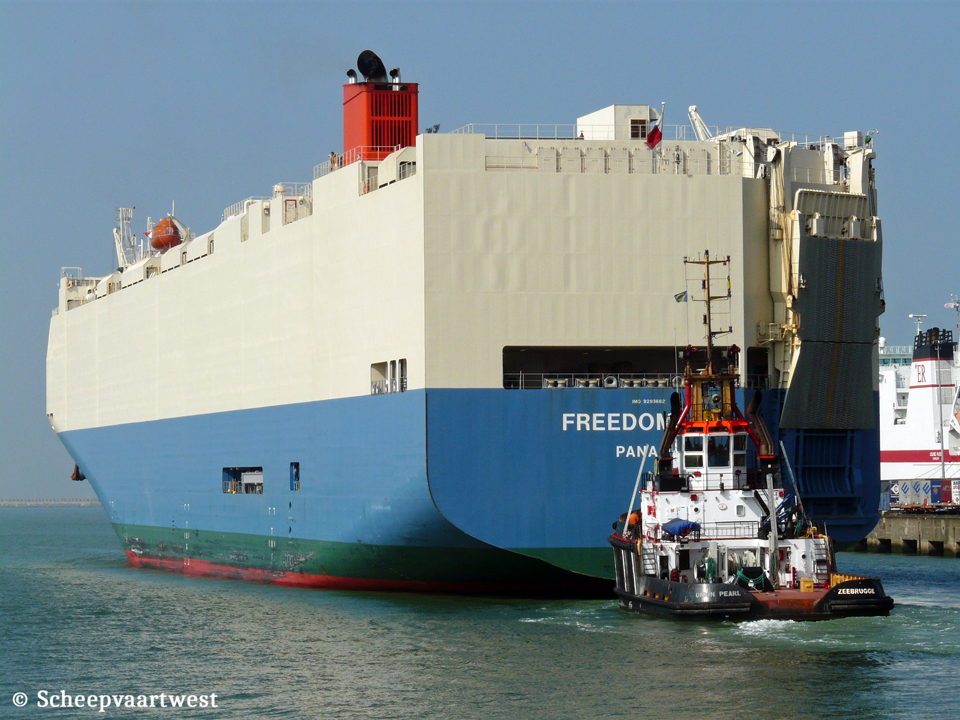

| Zeebrugge 30 August 2008 |
 |
| Zeebrugge 30/08/08 |
|
Name |
FREEDOM ACE |
|
Type |
Roll-On/Roll-Off vehicles carrier |
|
IMO-number |
9293662 |
|
Call sign |
7KCB |
|
Flag |
Japan |
|
Port of registry |
Tokyo |
|
Previous flag |
02/2015 - 02/2018 Republic of Panama, Panama - Call sign: H9BS |
|
GT |
60.065 |
|
DWT |
19.093 t |
|
NT |
18.465 |
|
Length |
199,99 m overall |
|
Breadth |
32,26 m overall |
|
Draught |
Summer: 9,72 m |
|
Moulded L x B x D |
192,00 x 32,26 x 14,70 m |
|
Registered L x B x D |
195,32 x 32,26 x 21,25 m |
|
Depth |
14,70 m moulded |
|
Freeboard |
Summer: 5.013 mm |
|
Speed |
20,7 knots |
|
Built |
2005 |
|
Keel laid |
16/06/2004 |
|
Launch date |
22/10/2004 |
|
Date of completion |
15/02/2005 |
|
Builder |
Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works Kobe Japan |
|
Yard number |
1264 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight bulkheads |
3 |
|
Main engine |
Mitsubishi 7UEC60LSII - 2 stroke single acting 7 cylinders 600 x 2.300 mm combustion engine 14.315 kW at 105 rpm Builder: Mitsubishi Heavy Industries Kobe Shipyard & Machinery Works - Japan |
|
Propeller shaft |
1xOil lubrication shaft with monitoring device Diameter: 590 mm |
|
Number of screws |
1x Fixed keyless propeller |
|
Boiler |
1x Auxiliary Vertical boiler - 6,9 bar Evaporation: 3,61 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Generatorsets total 4.200 kVA |
|
Car capacity |
6.354 |
|
Lifting equipment |
2x Cranes - SWL 4,0 t each |
|
Tank capacities |
Ballast: 9.262 m3 Fresh water: 567 m³ Fuel oil: 2.943 m³ |
|
Commercial manager |
Mitsui O.S.K. Lines Limited (MOL) 1-1, Toranomon 2-chome, Minato-ku Tokyo, 105-8688 Japan |
|
ISM Manager |
MOL Ship Management Singapore 17-04, UIC Building, 5, Shenton Way Singapore 068808 republic of Singapore |
|
Previous manager |
New Asian Shipping Company Ltd., Hong Kong - China |
|
Registered owner |
Mitsui O.S.K. Lines Limited (MOL) 1-1, Toranomon 2-chome, Minato-ku Tokyo, 105-8688 Japan |
|
Previous owner |
Oceanus Shipholding SA Republic of Panama |
|
Latest data adjustment |
21 April 2025 |
