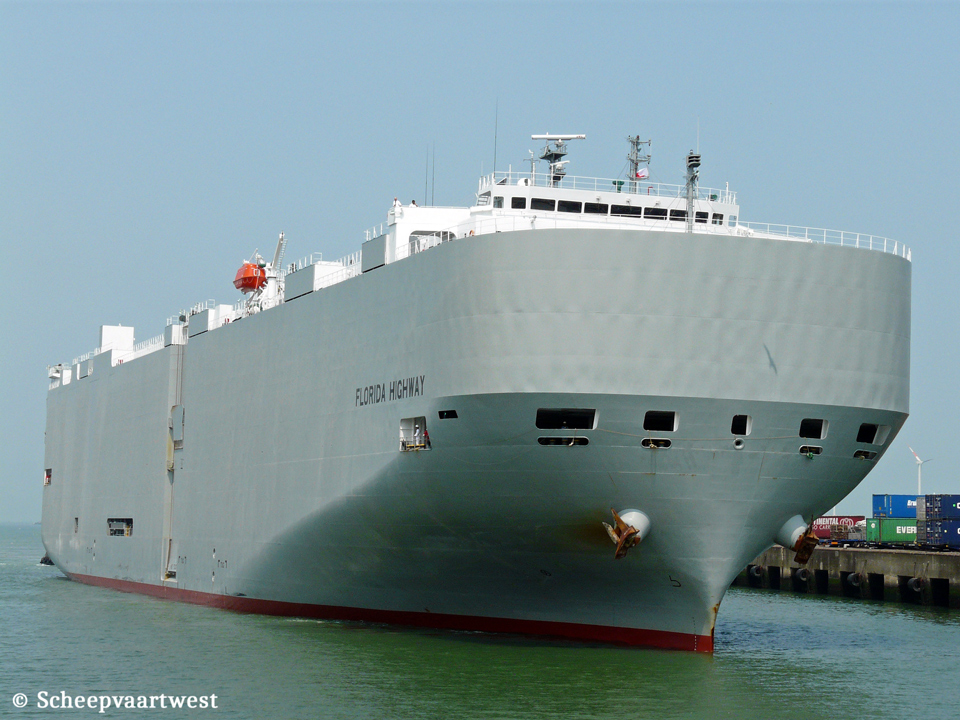

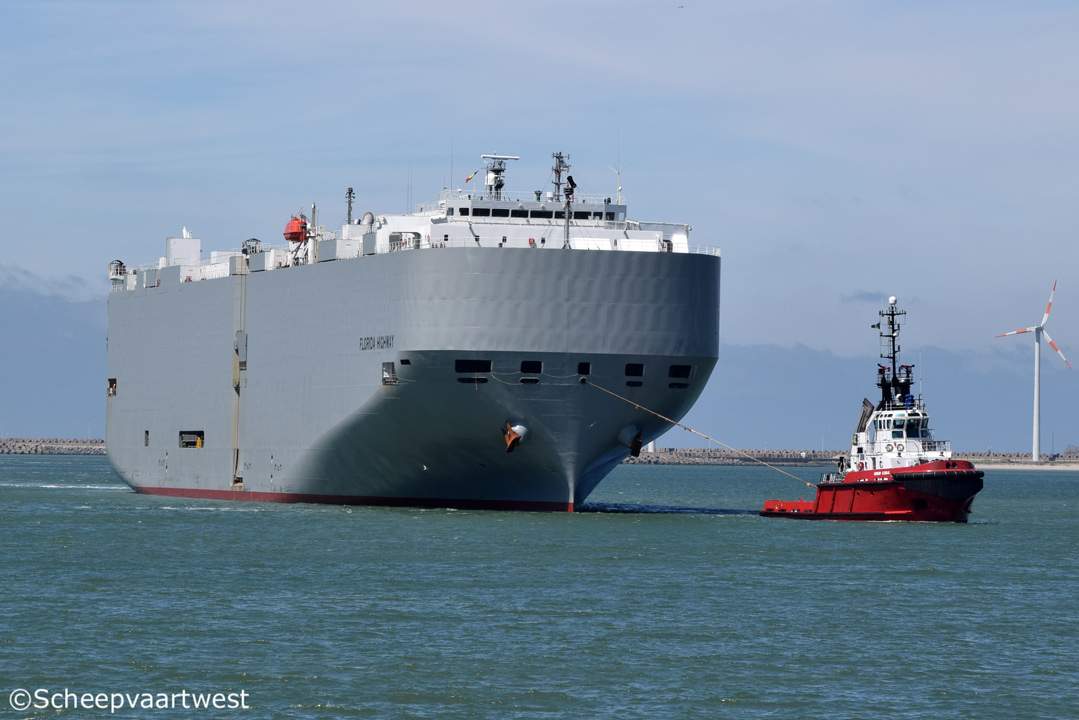

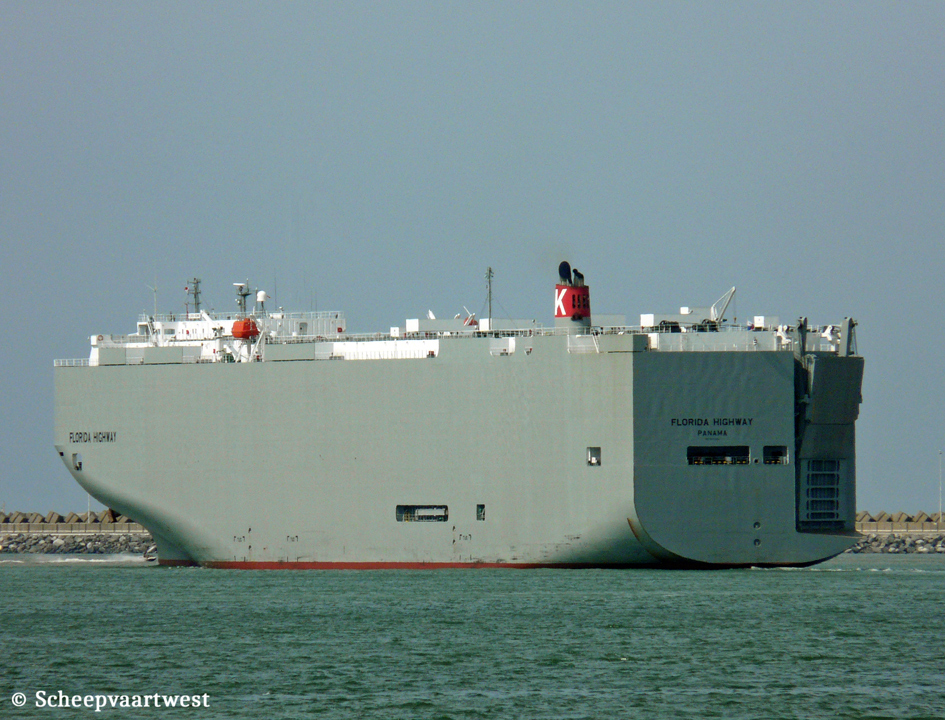

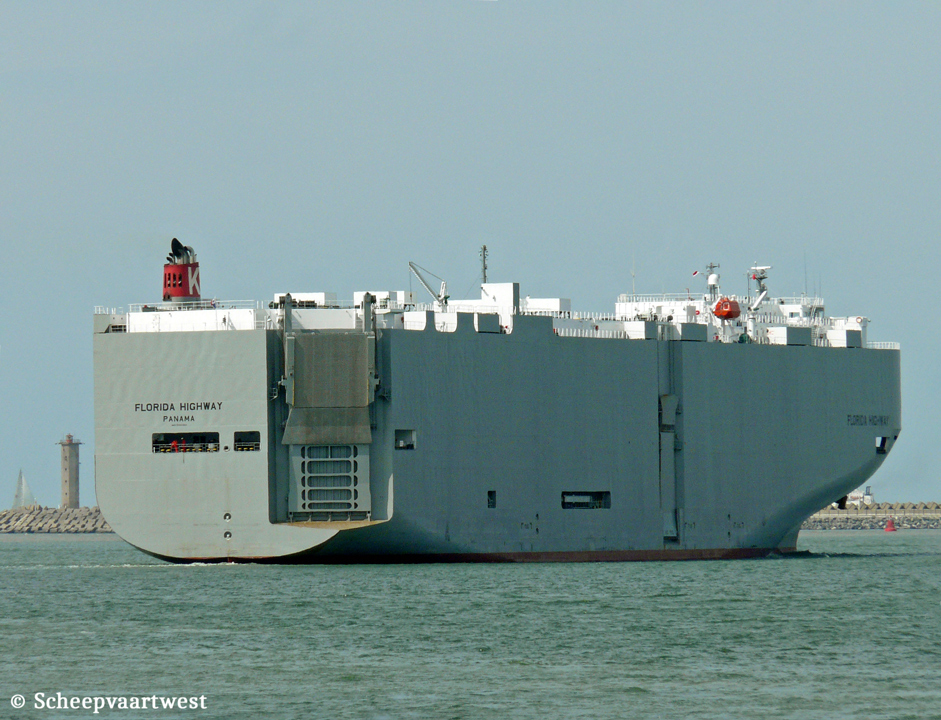

Zeebrugge 26 June 2018 |
 |
 |
 |
 |
|||
| Zeebrugge 26/06/18 | Zeebrugge 02/07/09 | Zeebrugge 09/08/09 | Zeebrugge 09/08/09 | |||
|
Name |
FLORIDA HIGHWAY |
|
Type |
Roll-On/Roll-Off vehicles carrier |
|
IMO-number |
9442861 |
|
Call sign |
3EPT6 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
59.493 |
|
DWT |
Summer: 18.930 t |
|
NT |
19.244 |
|
Length |
199,97 m overall 190,00 m between perpendiculars |
|
Breadth |
32,26 m |
|
Moulded Lx B x D |
192,00 x 32,26 x 14,70 m |
|
Registered L x B x D |
194,14 x 32,26 x 21,31 m |
|
Draught |
Summer: 10,02 m |
|
Freeboard |
Summer: 4.715 mm |
|
Built |
2008 |
|
Keel laid |
04/10/2007 |
|
Launch date |
26/01/2008 |
|
Date of completion |
26/03/2008 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Marugame Headquarters Marugame Japan |
|
Yard number |
1471 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi 8UEC60LS II - 2 Stroke single acting 8 cylinder 600 x 2.300 mm combustion engine 13.260 kW / 21.130 bhp at 100,00 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 630 mm |
|
Propellers |
1 |
|
Boiler |
1x Auxiliary vertical boiler – 7,8 bar Evaporation: 4,04 t/h Manufacturer: Miura Protec Co., Ltd. |
|
Generators |
4x Generatorsets total 4.700 kVA |
|
Cargo capacity |
Cars: 6.237 Trucks: 109 |
|
Tank capacity |
Fuel oil: 3.010 m³ Fresh water: 659 m³ Water ballast: 8.449 m³ |
|
Lift equipment |
2x Cranes - SWL 0,5 t each 3x Cranes - SWL 4,0 t each |
|
Crew |
21 |
|
ISM & commercial manager |
Shoei Kisen Kaisha S.A. 4-52, Kora-cho 1-chome, Imabari-shi, Ehime-ken, 799-2111, Japan |
|
Operator |
K-LINE / Kawasaki Kisen Kaisha Line |
|
Registered owner |
Pedregal Maritime S.A. c/o Shoei Kisen Kaisha Ltd (Shoei Kisen KK) 4-52, Kora-cho 1-chome, Imabari-shi, Ehime-ken, 799-2111, Japan. |
|
Latest data adjustment |
18 April 2025 |
