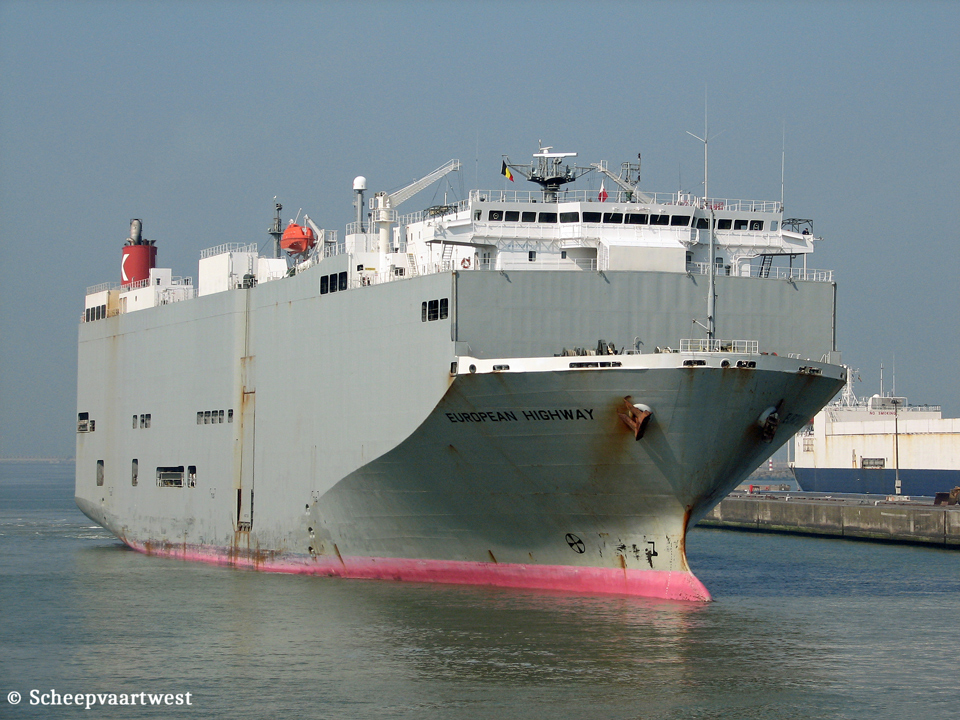

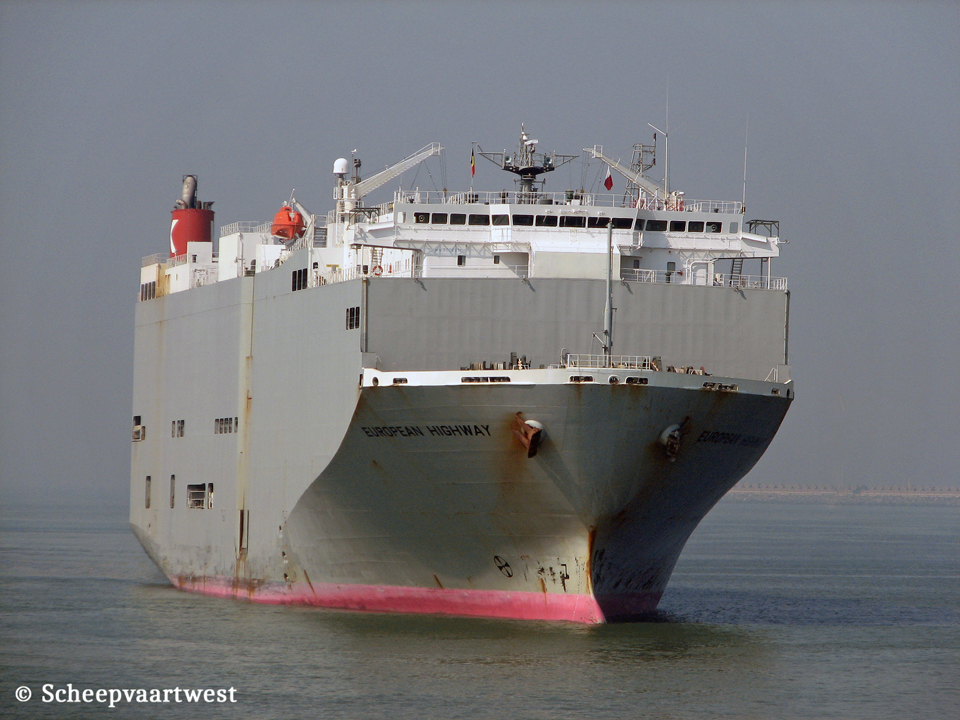

| Zeebrugge 15 April 2007 |
 |
|
| Zeebrugge 15/04/2007 | |
|
Name |
EUROPEAN HIGHWAY |
|
Type |
Roll-On/Roll-Off vehicles carrier |
|
IMO-number |
9206011 |
|
Call sign |
3FWB9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama |
|
GT |
48.039 |
|
DWT |
15.075 t |
|
NT |
14.412 |
|
Length |
179,99 m overall |
|
Beam |
32,20 m moulded |
|
Draught |
Summer: 9,41 m |
|
Moulded L x B x D |
167,00 x 32,20 x 14,98 m |
|
Registered L x B x D |
168,95 x 32,20 x 21,42 m |
|
Freeboard |
Summer: 5.594 mm |
|
Depth |
32,20 m |
|
Speed |
Max: 22,8 knots Service: 20,0 knots |
|
Built |
1999 |
|
Keel laid |
23/04/1999 |
|
Launch date |
10/09/1999 |
|
Date of completed |
06/12/1999 |
|
Builder |
Kawasaki Heavy Industries Ltd. - Sakaide Shipyard 1 Kawasaki-cho Sakaide Japan |
|
Yard number |
1494 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W 8S60MC - 2 stroke single acting 8 cylinder 600 x 2.292 mm combustion engine 13.240 kW / 18.002 hp at 101,0 rpm Manufacturer: Mitsui, Tamano - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 565 mm |
|
Number of screws |
1x Fixed keyless propeller |
|
Boiler |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 4,49 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generator capacity |
4x Generatorsets total 2.975 kVA |
|
Car capacity / trucks |
5.064 / 376 |
|
Lifting equipment |
2x Cranes - SWL 4 t each |
|
Tank capacities |
Fuel oil: 2.766 m³ Fresh water: 515 m³ Water ballast: 6.194 m³ |
|
ISM manager & commercial |
"K" Line RoRo Bulk Ship Management Co., Ltd. 2-3, Kaigan-dori 2-chome, Chuo-ku, Kobe-shi, Hyogo-ken, 650-0024 Japan |
|
Previous manager |
Wilhelmsen Ship Management, Lysaker - Norway |
|
Owner |
Canopus Maritime Co Ltd. c/o K' Line RoRo Bulk Ship Management Co Ltd. 2-3, Kaigan-dori 2-chome, Chuo-ku, Kobe-shi, Hyogo-ken, 650-0024 Japan |
|
Latest data adjustment |
10 April 2025 |
