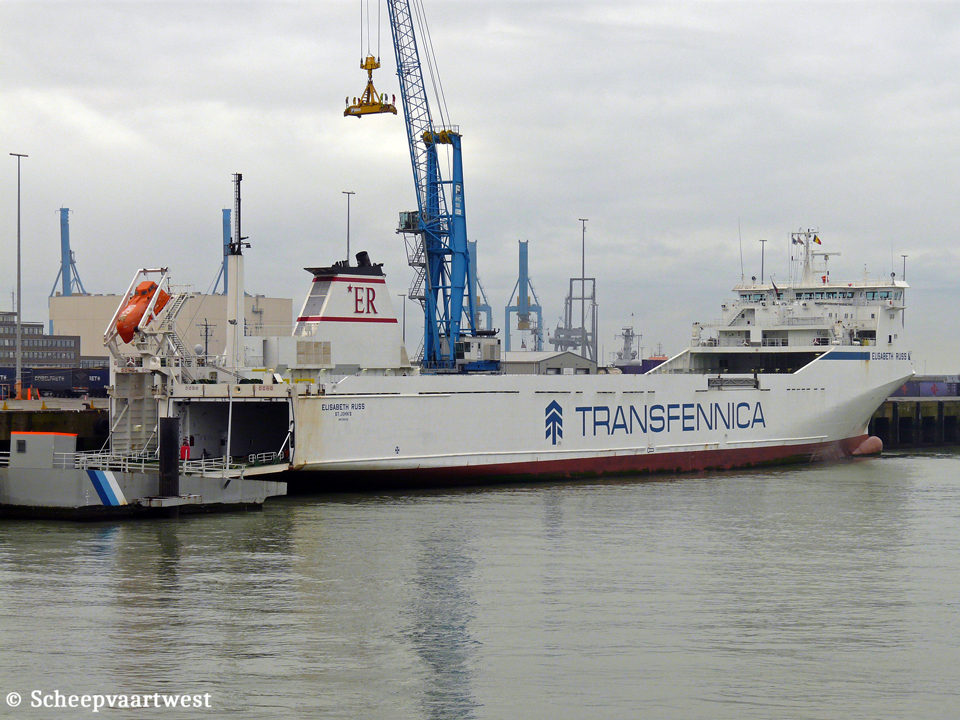

| Zeebrugge 09 October 2010 |
 |
 |
|

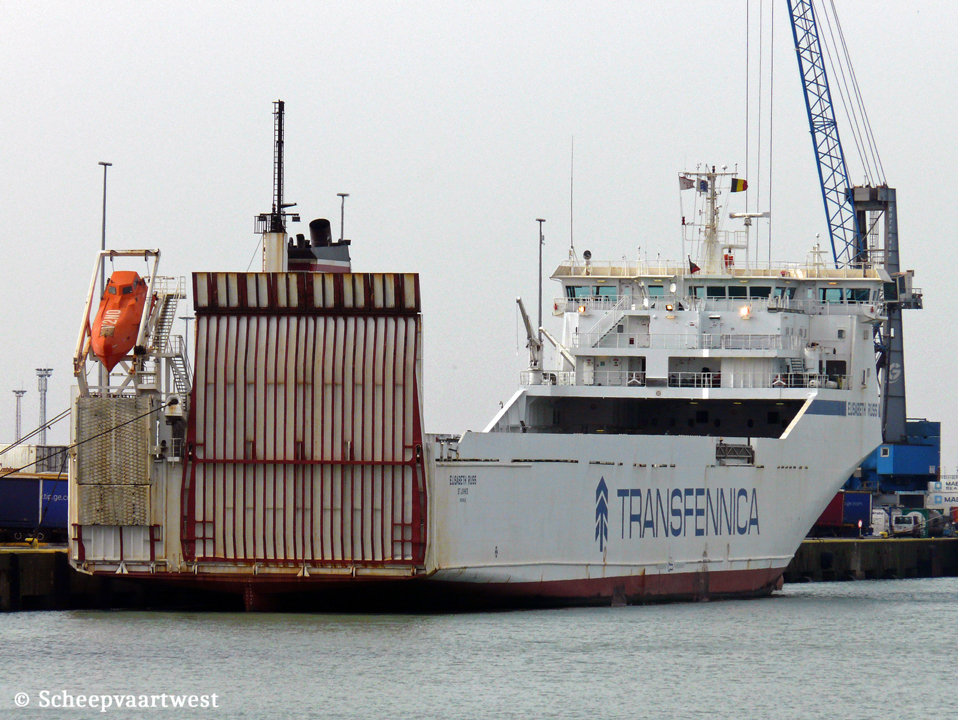

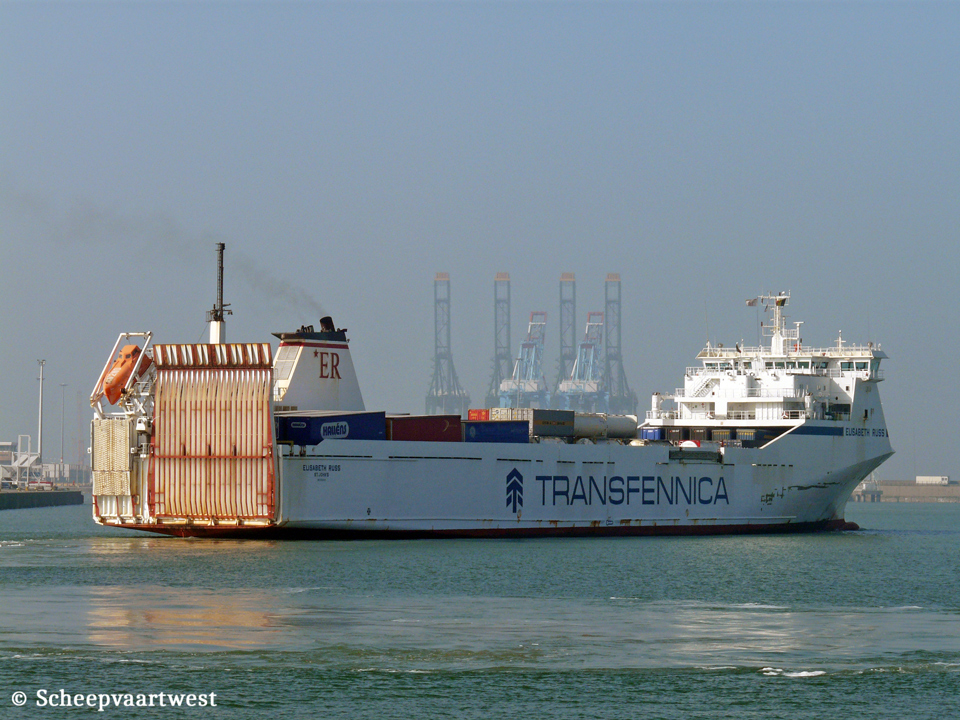

| Zeebrugge 18/03/10 | Zeebrugge 31/12/07 | |
|
Name |
ELISABETH RUSS |
|
Type |
Roll-On/Roll-Off cargo vessel Ro/Ro Forest product and trailer carrier |
|
IMO-number |
9186429 |
|
Call sign |
CQFE |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flag |
04/1999 - 08/1999 Germany, Hamburg 08/1999 - 05/2014 Antigua & Barbuda, St. John's - Call sign: V2NO |
|
GT |
10.471 |
|
DWT |
Summer: 7.296 t |
|
NT |
3.141 |
|
Number of 20ft containers |
303 |
|
Container cap. on WD |
101 Teu max. 3 high |
|
Nom. Feu cont. intake |
141 Feu + 21 Teu |
|
Number of reefer plugs |
50 |
|
Length |
153,40 m overall 142,80 m between perpendiculars 146,20 m registered |
|
Breadth |
20,60 m overall |
|
Draught |
Summer: 6,99 m |
|
Lane metres |
1.624 |
|
Bridge |
57,30 m |
|
Forecastle |
71,47 m |
|
Freeboard |
1.430 mm |
|
Depth |
14,15 m |
|
Speed |
Service: 20,3 knots |
|
Built |
1999 |
|
Keel laid |
18/12/1997 |
|
Launch date |
19/03/1999 |
|
Date of completed |
24/04/1999 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. Neuenfelder Fährdeich 88 Neuenfelde Hamburg Germany |
|
Yard number |
1186 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
5 |
|
Main engine |
1x Wärtsilä 16V46B - 4 stroke single acting 12 cylinder combustion engine 17.120 hp / 12.600 kW Built: 1998 Builder: Wärtsilä Diesel Oy - Finland |
|
Number of screws |
1x Controllable pitch propeller - aft |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 58 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 164 m² Built: 1998 Builder: PWT Prozesswärmeträgertechnik GmbH |
|
Electric Installations |
1x 380/220 V with 1.200 kVA 1x 380 V with 1.000 kVA 1x 380 V with 400 kVA |
|
Shaft generator |
1x 800 kW /1.000 kVA |
|
Main generators |
2x Main diesel generatorsets each 480 kW / 600 kVA |
|
Emergency generator |
1x Diesel generatorset 360 kW / 400 kVA |
|
Compressed air receivers |
2x Receivers, each 1.000 litres - 30,0 bar 1x Receiver 750 litres - 11,0 bar |
|
Bow thruster |
1x Fixed pitch propeller Kamewa - 800 kW forward 1x Fixed pitch propeller Kamewa - 495 kW stern |
|
Number of decks |
2 decks 2 Fixed stern ramps |
|
Deck heights |
Ro-Ro 5,00 m Lower deck 4,60 m |
|
Number of trailer |
120 |
|
Cargo capacity |
Bale: 14.599 m³ |
|
Tank capacity |
Ballast: 3.963 m³ Bunker: 798 t Fuel oil: 840 m³ |
|
Drivers accommodation |
12 drivers (6x2) |
|
Anchor equipment |
3x Anchors weight each 4.590 kg Chain length: 550,00 m |
|
Number of passengers |
12 |
|
Crew |
14 |
|
IDSM & commercial manager |
Ernst Russ Maritime Elbchaussee 370 22609, Hamburg Germany |
|
Manager |
Ernst Russ GmbH & Co. 10 Alsterufer Hamburg Germany |
|
Registered owner |
MS "ELISABETH RUSS" Schiffahrtsges. mbH & Co. KG Care of Ernst Russ Maritime Management GmbH & Co KG Elbchaussee 370 22609, Hamburg Germany |
|
Latest data adjustment |
07 April 2025 |
