| Zeebrugge 23 June 2018 |
 |
 |
 |
 |
 |
 |
|||||
| Zeebrugge 23/06/18 | Zeebrugge 23/06/18 | Zeebrugge 07/05/09 | Zeebrugge 21/04/06 | Zeebrugge 16/07/09 | Zeebrugge 16/07/09 | |||||
 |
| Zeebrugge 22/12/08 |
|
Name |

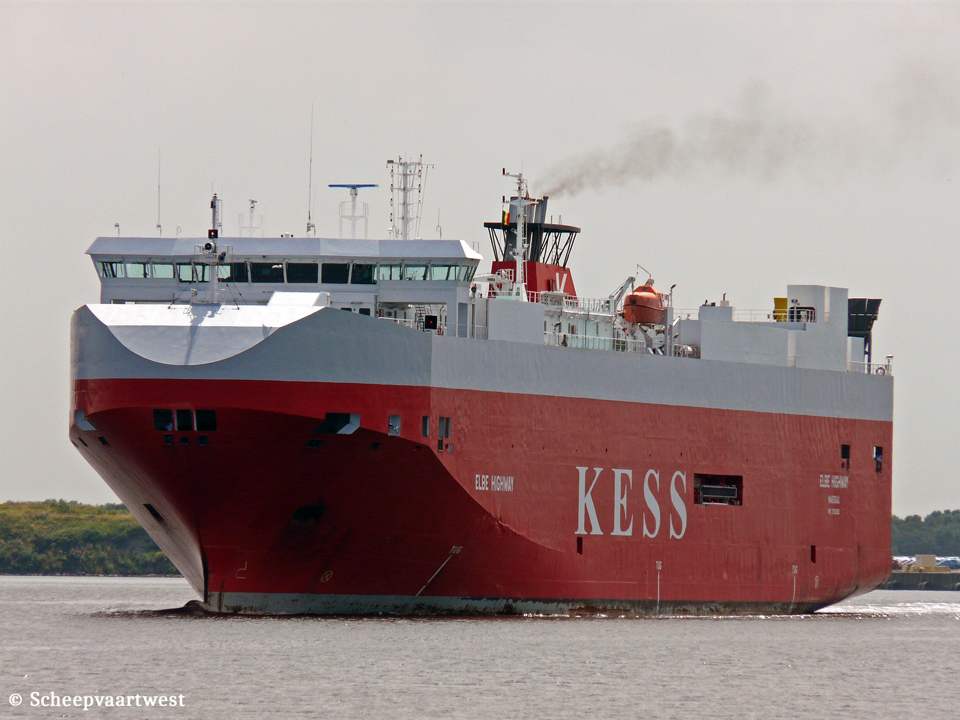

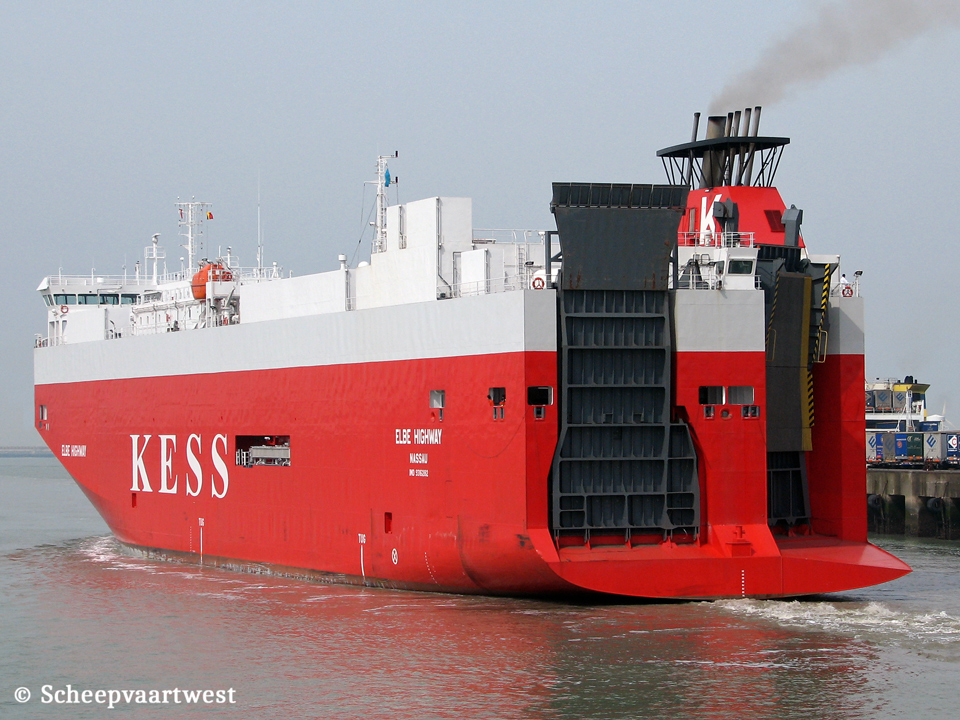

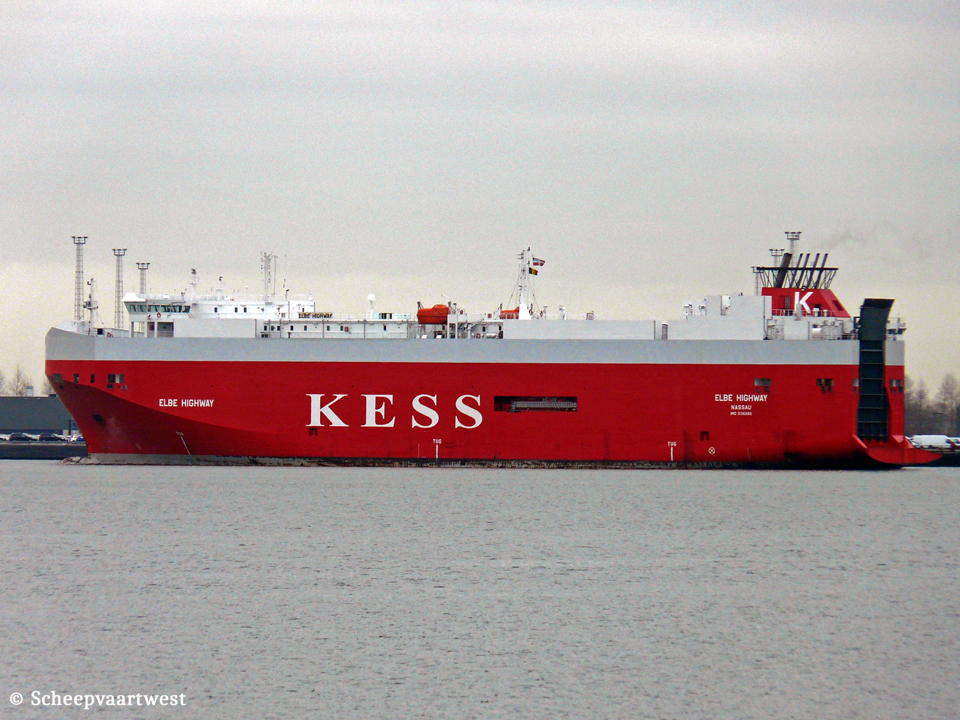

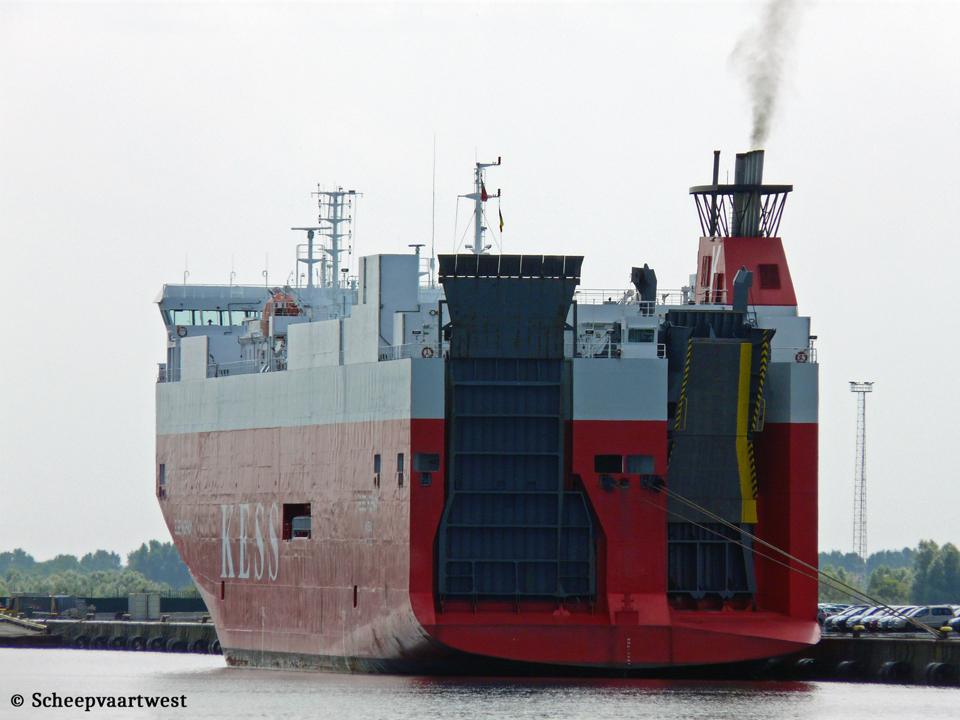

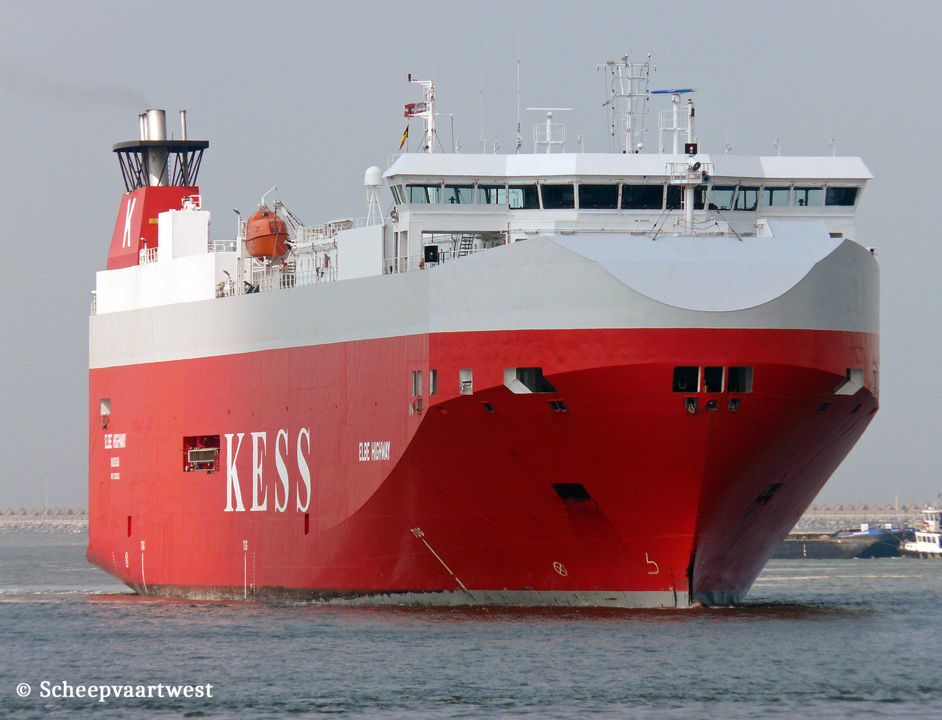

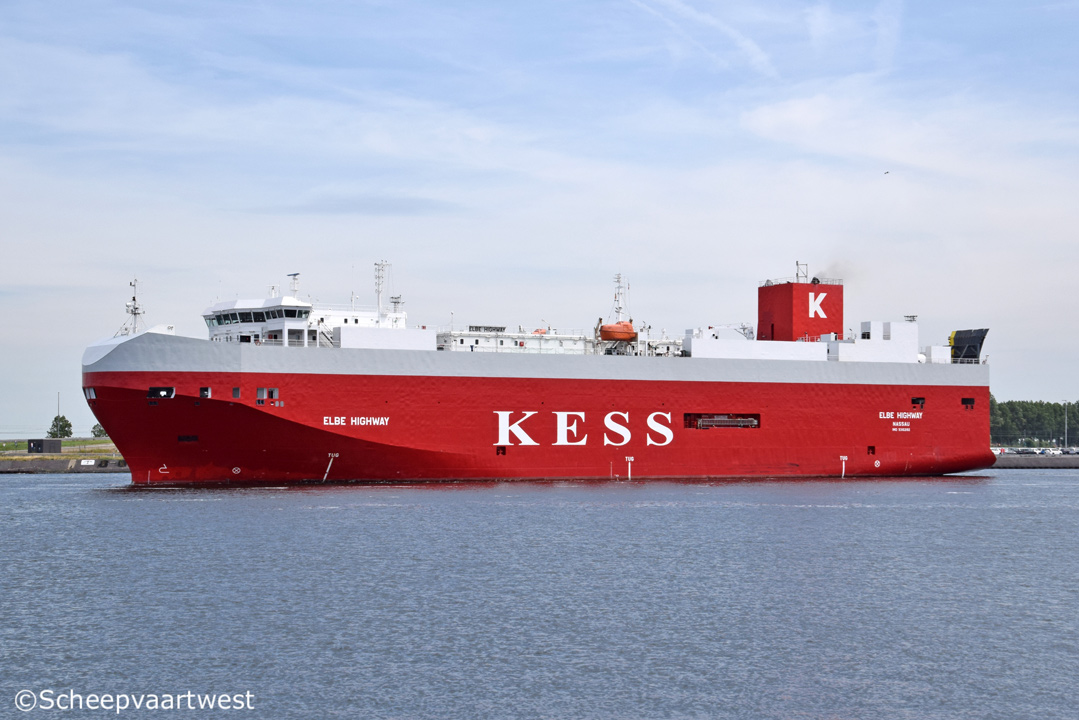

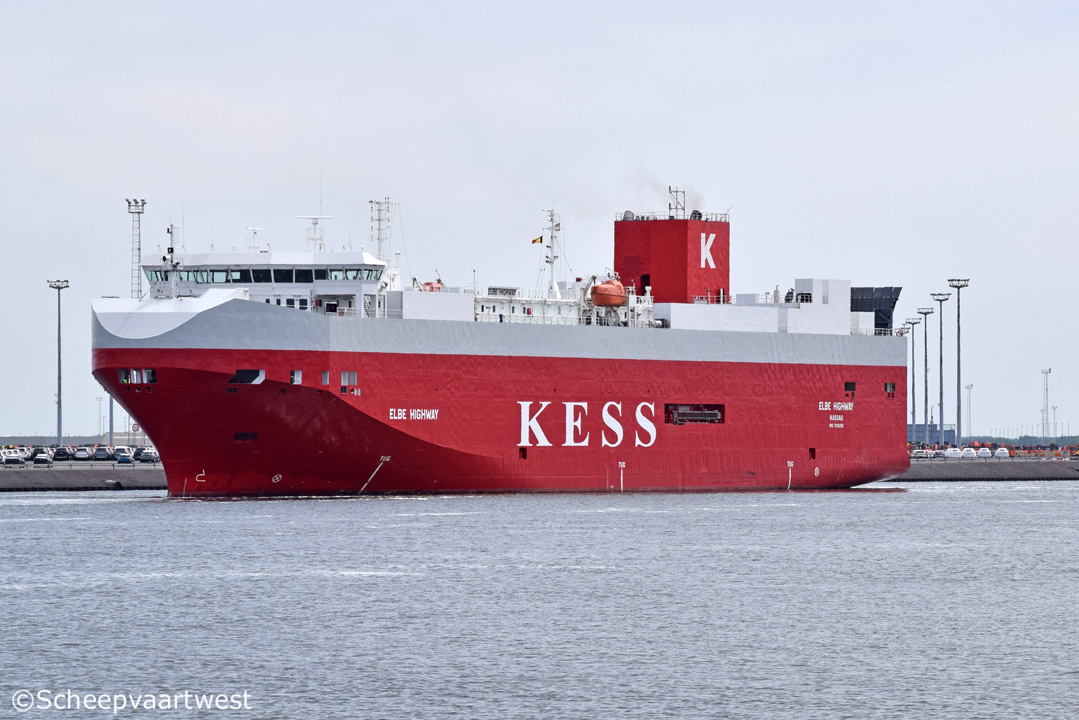

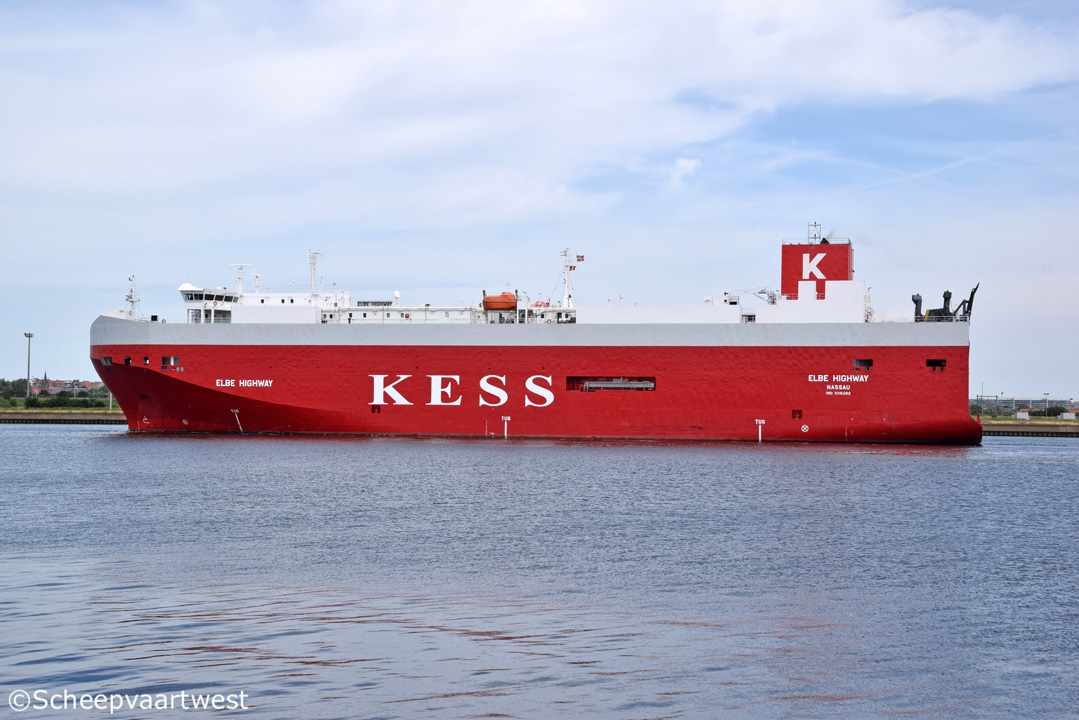

ELBE HIGHWAY |
|
Type |
Roll-On/Roll-Off vehicles carrier |
|
IMO-number |
9316282 |
|
Call sign |
C6UR3 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
23.498 |
|
DWT |
7.750 t |
|
NT |
7.243 |
|
Length |
147,93 m overall 134,00 between perpendiculars |
|
Breadth |
26,40 m extreme 25,00 m moulded |
|
Draught |
Summer: 7,90 m |
|
Freeboard |
3.914 mm |
|
Depth |
25,20 m |
|
Speed |
Service: 18,9 knots |
|
Built |
2005 |
|
Keel laid |
19/04/2005 |
|
Launch date |
16/07/2005 |
|
Date of completion |
19/09/2005 |
|
Builder |
Stocznia Gdynia S.A. ul. Czechoslowacka 3 81-963 Gdynia Poland |
|
Yard number |
8245/1 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W/Cegielski 7S46MC-C engine - 2 stroke 7 cylinder combustion engine 9.170 kW / 12.467 bhp |
|
Number of screws |
1x Fixed mono-block propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired 1x Auxiliary boiler, exhaust gas heated Builder: KangRim Ind. |
|
Generators |
3x MAN-B&W 7L23/30H main diesel generatorsets each 1.130 kW |
|
Emergency generator |
1x D9-95M Scania diesel generatorset Builder: Scania AB Industrial & Marine Engines |
|
Thrusters |
1x 1.200 kW, forward 1x 600 kW, aft |
|
Number of decks |
8 |
|
Car capacity |
2.132 |
|
Anchor chain |
Length: 577,50 m Diameter: 60 mm |
|
Tank capacities |
Ballast: 3.804,2 m³ |
|
Crew |
17 |
|
Commercial manager |
Kess Otto-Lilienthal-Strasse 25 28199, Bremen Germany |
|
Manager |
Stargate Shipmanagement GmbH Otto-Lilienthal-Straße 15 28199 Bremen Germany |
|
Previous manager |
|
|
Operator |
Kess K' Line European Sea Highway Service Bremen Federal Republic of Germany |
|
Registered owner |
Elbe Maritime Limited Care of 'K' Line European Sea Highway Services GmbH (KESS) Otto-Lilienthal-Strasse 25 28199, Bremen Germany |
|
Latest data adjustment |
06 April 2025 |
