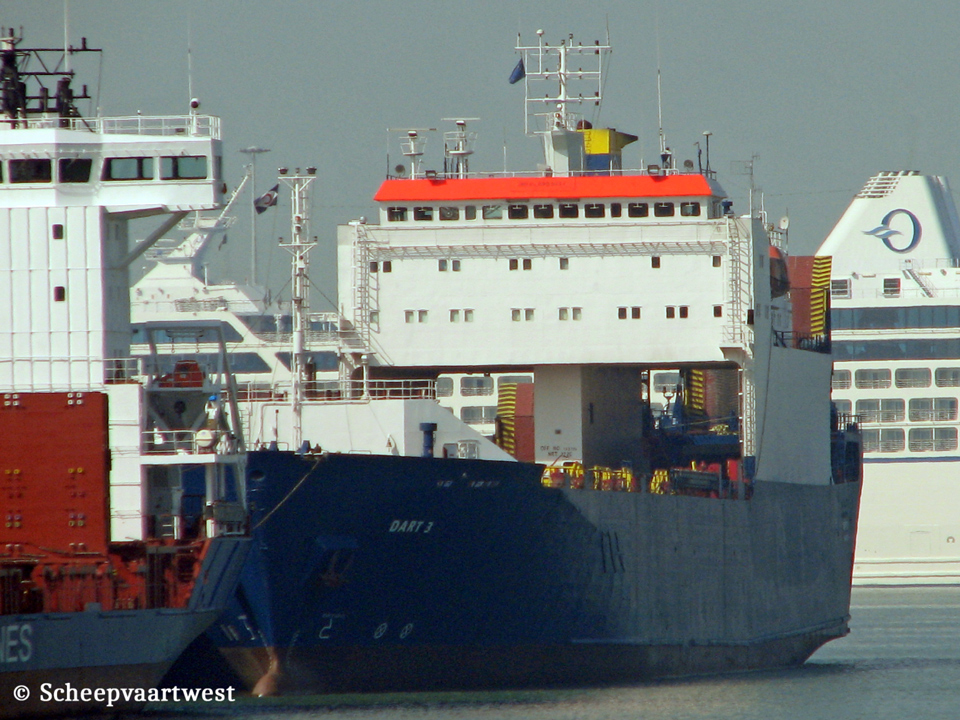

Dart 3 - IMO 8009064

Name

DART 3

Previous name

1985 Balder Sten
1985-1991 Bazias 3 - Navrom
1991-1993 Bazias 3 - Sally Line
1993-1996 Sally Auroroute - Sally Line
1996-2000 Merle - Belfast Freight Ferries
2000-2000 Dart 3 - Dart Line
2000-2001 Dart 3 - Norse Merchant Ferries

Type

Roll-On / Roll-Off freight Vessel

IMO-number

8009064

Call sign

ZCDH2

Flag

Bermuda

GT

9.088 t

DWT

4.734 t

NT

2.726 t

Length

121,48 m overall
111,80 m between perpendiculars

Breadth

21,00 m

Draught

Summer: 5,33 m

Lane metres

1.225 m

Depth upper deck

12,50 m

Depth to main deck

5,35 m

Speed

14,5 knots

Built

1985

Builder

Santierul Naval Galatz S.A.

Galatz
Romania

Hull material

Steel

Watertight compartments

10

Number of cont. decks

2

Main engine

2x Krupp MAK M453 AK - 4 stroke 9 cylinder 320 x 420 mm engine- 2.650 kW / 7.200 hp each at 600 rpm

Built: 1982

Propeller

2x Ulstein propeller controllable pitch - at 242 rpm

Shaft generator

1x 625 kVA / 500 kW

Generators

2x Caterpillar 3412 - main diesel generatorsets each 385 kW / 1.130 hp
1x Deck generator - 690 kW

Bow thruster

1x Ulstein 435 kW

1x Ulstein 375 kW

Port stern ramp

15,60 x 7,10 m – 17,5 t bogie, 45 t max load

Stbd Stern Ramp

10,67 x 9,10 m - 17,5 t bogie, 56 t max load

Fixed Ramp

Main deck to tank top: 2,51 m wide x 2,51 high, cars only

Number of holds

1

Ballast Capacity

2.780 t

Fuel capacity

Fuel oil: 830 t

Diesel oil: 183 t

Number of passengers

12

Number of beds

12

Number of cars

49

Operator

Cobelfret Ferries

Former owners

1996 - ? - Jacobs Holdings
1985 - 1996 - Navrom

Owner

Cobelfret Ferries

Renamed

Phocine
