| Westerschelde 28 June 2017 |
|
Name |

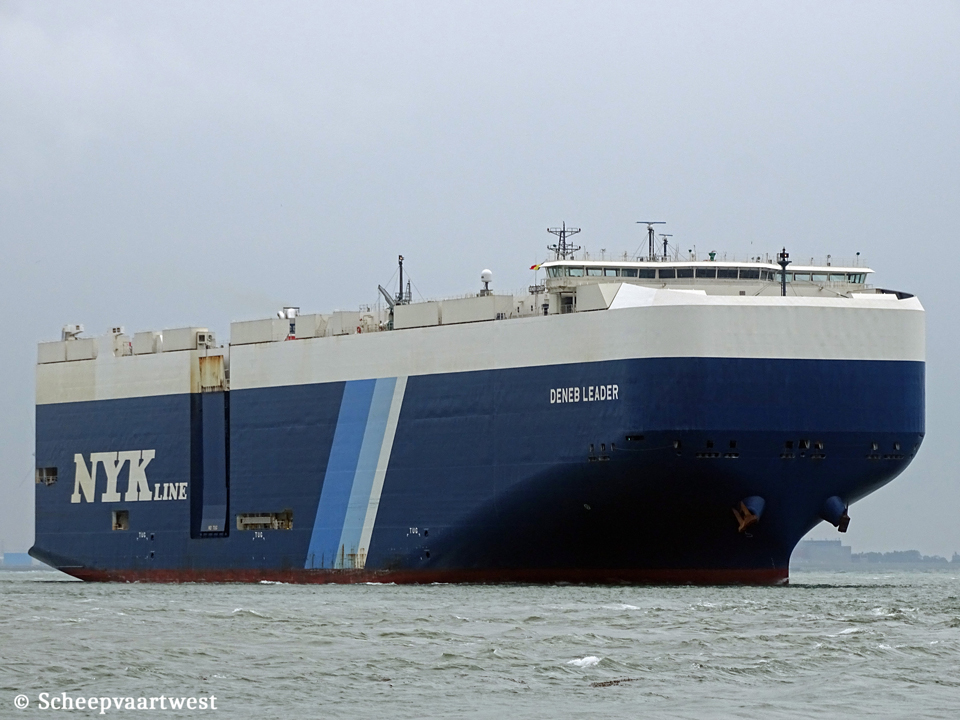

DENEB LEADER |
|
Type |
Roll-On/Roll-Off carrier - Vehicles carrier |
|
IMO-number |
9738777 |
|
Call sign |
3EKQ |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
70.048 |
|
DWT |
21.155 t |
|
NT |
23.218 |
|
Length |
199,99 m overall |
|
Breadth |
34,80 m moulded |
|
Draught |
Summer: 10,62 m |
|
Moulded L x B x D |
192,00 x 34,80 x 15,29 m |
|
Registered L x B x D |
194,17 x 34,80 x 21,96 m |
|
Freeboard |
Summer: 4.706 mm |
|
Depth |
15,29 m moulded |
|
Speed |
Max: 22,3 knots |
|
Build |
2015 |
|
Keel laid |
28/06/2014 |
|
Launch date |
19/04/2015 |
|
Date of completion |
24/07/2015 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Marugame Headquarters Japan |
|
Yard number |
1606 |
|
Hull material |
Steel |
|
Main engine |
1x 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 13.800 kW / 18.762 hp at 105,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 590 mm |
|
Propellers |
1x Fixed keyless propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,69 MPa Evaporation: 4,24 t/h Manufacturer :Osaka Boiler Mfg. Co., Ltd. - Japan |
|
Generators |
5x Generatorsets total 5.225 kVA |
|
Number of cars |
7.124 |
|
Tank capacities |
Fuel oil: 3.158,84 m³ Fresh water: 718,03 m³ |
|
Commercial manager |
NYK Line Yusen Building, 3-2, Marunouchi 2-chome, Chiyoda-ku, Tokyo, 100-0005 Japan |
|
ISM manager |
NYK Ship Management Company Limited 17th Floor, Kawasaki Technical Centre, 580-16, Horikawa-cho, Saiwai-ku, Kawasaki-shi, Kanagawa-ken, 210-0913 Japan |
|
Registered owner |
Beatrix Ship Holding S.A. C/O: Nippon Yusen KK (NYK Line) (Nippon Yusen Kaisha) Yusen Building, 3-2, Marunouchi 2-chome, Chiyoda-ku, Tokyo, 100-0005 Japan |
|
Latest data adjustment |
18 January 2025 |
