| Wetserschelde 24 March 2017 |
|
Name |

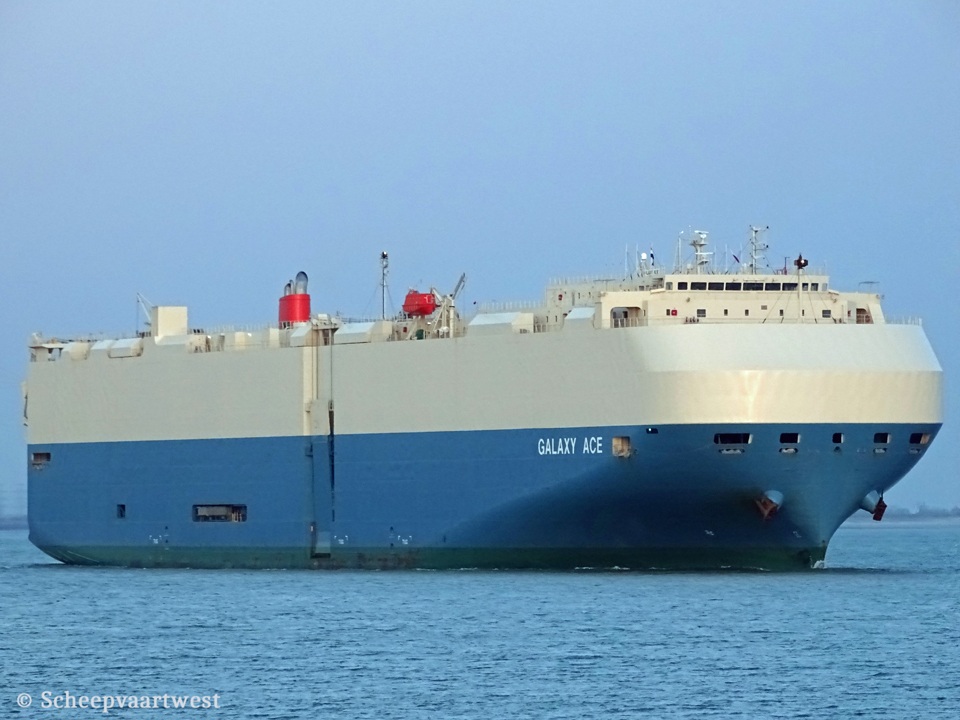

GALAXY ACE |
|
Type |
Roll-On/Roll-Off vehicles carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9624237 |
|
Call sign |
D5CZ7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GRT |
59.586 |
|
DWT |
18.878 t |
|
NRT |
19.091 |
|
Length |
199,97 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 10,02 m |
|
Moulded L x B x D |
192,00 x 32,26 x 14,70 m |
|
Registered L x B x D |
194,14 x 32,26 x 21,31 m |
|
Freeboard |
Summer: 4.714 mm |
|
Depth |
14,70 m moulded |
|
Speed |
Max: 22,5 knots |
|
Build |
2012 |
|
Keel laid |
10/06/2010 |
|
Launch date |
30/07/2012 |
|
Date of completion |
23/10/2020 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Marugame Headquarters Japan |
|
Yard number |
1534 |
|
Hull material |
Steel |
|
Main engine |
2x Mitsubishi 8UEC60LSII - 2 stroke single acting 8 cylinder 600 x 2.300 mm combustion engine 15.100 kW at 99,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x oil lubrication shaft with monitoring device Diameter: 630 mm |
|
Propellers |
1x Fixed keyless propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,80 MPa Evaporation: 4,62 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generatorsets total 4.700 kVA |
|
Number of cars |
5.174 |
|
Tank capacities |
Fuel oil: 2.742 m³ Fresh water: 663 m³ |
|
Commercial manager |
Mitsui OSK Lines Ltd (MOL) 1-1 Toranomon 2-chome, Minato-ku Tokyo, 105-8688 Japan |
|
ISM manager |
MOL Ship Management (Singapore) Pte. Ltd. 17-04, UIC Building, 5, Shenton Way Singapore 068808 Republic of Singapore |
|
Registered owner |
Third Maritime Inc. c/o Mitsui OSK Lines Ltd (MOL) 1-1 Toranomon 2-chome, Minato-ku Tokyo, 105-8688 Japan |
|
Latest data adjustment |
22 April 2025 |
