| Westerschelde 08 August 2016 |
|
Name |

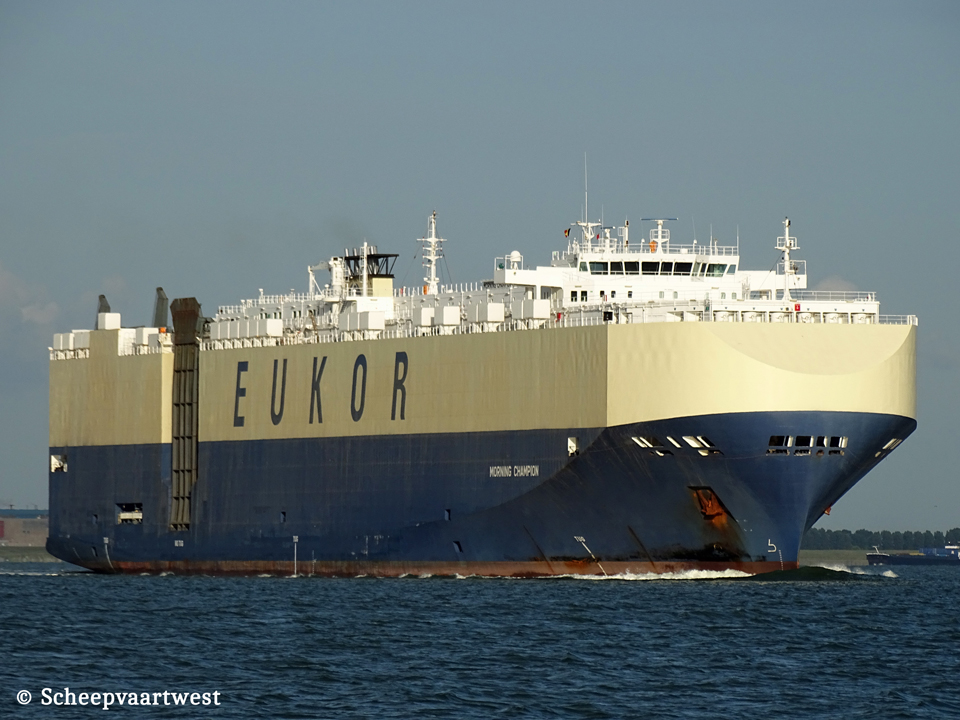

MORNING CHAMPION |
|
Type |
Roll-On/Roll-Off carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9285627 |
|
Call sign |
C6UI3 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
57.692 t |
|
DWT |
21.106 t |
|
NT |
21.037 t |
|
Length |
199,98 m overall |
|
Breadth |
32,25 m |
|
Draught |
Summer: 10,02 m |
|
Reg. dimensions L x B x D |
191,50 x 32,25 x 19,98 m |
|
Rule dimensions L x B x D |
191,50 x 32,25 x 19,98 m |
|
Freeboard |
Summer: 3.644 mm |
|
Depth |
19,98 m |
|
Speed |
Max: 20,2 knots |
|
Built |
2005 |
|
Keel laid |
24/08/2004 |
|
Launch date |
30/11/2004 |
|
Date of completion |
24/03/2005 |
|
Builder |
Stocznia Gdynia S.A. Gdynia Poland |
|
Yard number |
8168/10 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
Transverse: 3 |
|
Main engine |
1x H. Cegielski/Wärtsilä NSD 7RTA 62U - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine Mcr 15.820 kW / 31.509 hp at 105,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, vertical shell (Oil fired) - 9,0 kg/cm² Heating surface: 17,40 m² 1x Auxiliary boiler, exhaust gas smoke tube - 9,0 kg/cm² |
|
Generators |
3x MAN-B&W 7L28/32H main diesel generatorsets each 1.750 kVA - 450 Volt |
|
Emergency generator |
1x MAN D2866LXE30 diesel generatorset |
|
Bow thruster |
1x Brunvoll FU 80 LTC 2250 - 1.300 kW, forward |
|
Number of cars |
6.658 |
|
Car deck areas |
Total: 54.900 m2 Hoistable: 17.000 m² |
|
Number of decks |
14 |
|
Number of ramps |
2 1x Starboard: 25,00 x 7,00 m - 22,00 ton 1x Starboard aft: 38,00 x 7,00 m - 150 ton |
|
Tank capacities |
Fuel oil: 3.350 m³ Diesel oil: 130 m³ Lub oil: 150 m³ Potable water: 260 m³ Ballast water: 7.400 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 78 mm |
|
Lifting equipment |
1x Crane - SWL 5,0 t |
|
Crew size |
29 |
|
Manager |
Wilhelmsen Ship Management (Korea) Ltd. 10th Floor, Marine Center Building, 52, Chungjang-daero 9beon-gil, Jung-gu Busan, 48936 South Korea |
|
ISM iManager |
Wilhelmsen Ship Management (Korea) Ltd. |
|
Registered owner |
Champion Maritime Ltd. |
|
Latest data adjustment |
04 March 2023 |
