| Zeebrugge 20 April 2022 |
|
Name |

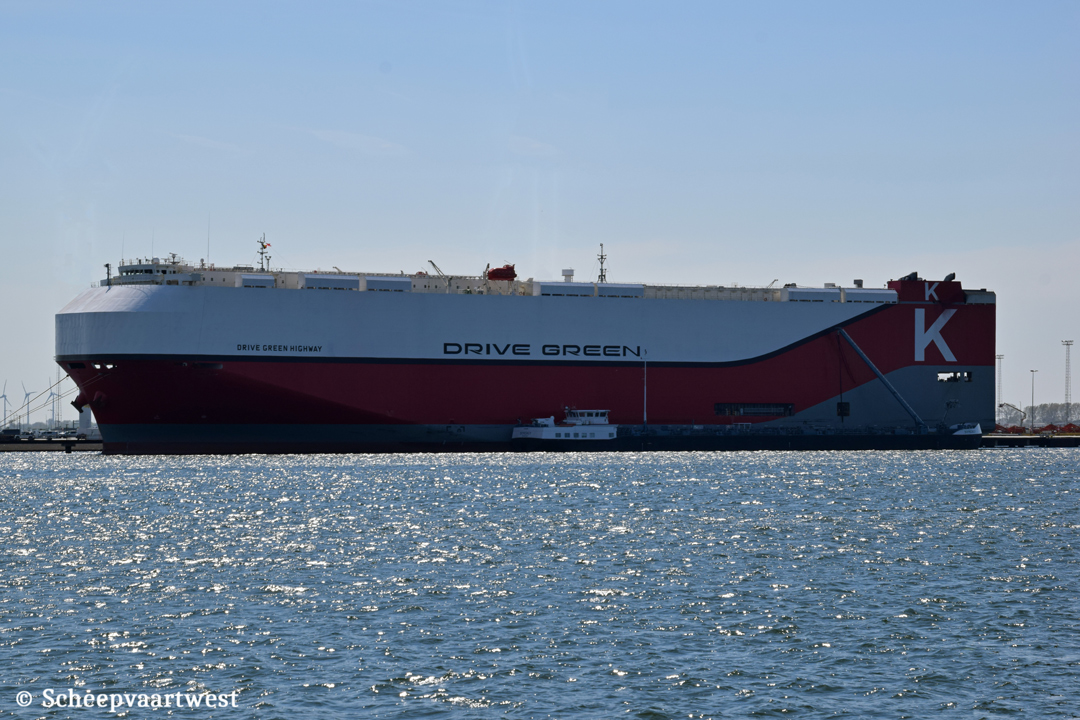

DRIVE GREEN HIGHWAY |
|
Type |
Roll-On/Roll-Off carrier - Vehicles carrier |
|
IMO-number |
9728069 |
|
Call sign |
3FTM8 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
76.387 t |
|
DWT |
20.034 t |
|
NRT |
22.917 t |
|
Length |
199,95 m overall |
|
Breadth |
37,50 m moulded |
|
Draught |
Summer: 9,93 m |
|
Moulded L x B x D |
190,80 x 37,50 x 14,85 m |
|
Registered L x B x D |
194,06 x 37,50 x 22,04 m |
|
Freeboard |
Summer: 4.966 mm |
|
Depth |
14,85 m moulded |
|
Speed |
Max: 21,7 knots Service: 20,0 knots |
|
Built |
2016 |
|
Keel laid |
10/06/2014 |
|
Launch date |
23/10/2015 |
|
Date of completion |
09/02/2016 |
|
Builder |
Japan Marine United Corporation, Ariake Shipyard |
|
Yard number |
5044 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W/Kawasaki 7S60ME-C8 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 13.000 kW / 22.651 hp at 102,6 rpm Manufacturer: Kawasaki Heavy Industries, Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 596 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 0,70 MPa Evaporation: 2,55 t/h 1x Auxiliary exhaust gas boiler - 0,50 MPa Evaporation: 1,98 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
4x Generatorsets total 5.500 kVA |
|
Number of cars |
7.573 |
|
Tank capacities |
Fuel oil: 3.007 m³ Fresh water: 322 m³ |
|
Crew |
28 |
|
Manager |
K-Line Roro Bulk Ship Management Co Ltd. Kobe Japan |
|
Registered owner |
JMU5044 Shipping S Tokyo Japan |
|
Remarks |
900 of Solar Frontier’s CIS solar panels were installed on the top deck, which are totalling 150 kilowatt-peak of electricity generating capacity |
|
Latest data adjustment |
02 May 2022 |
