Westerschelde 08 February 2016 |
 |
 |
 |
 |
 |
 |
||||

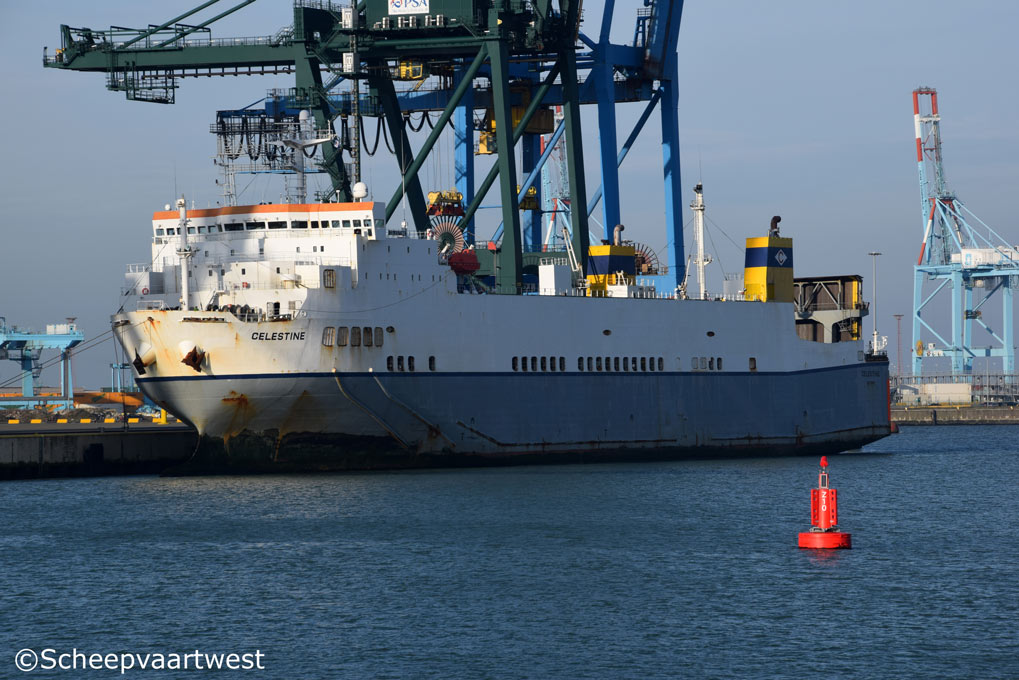

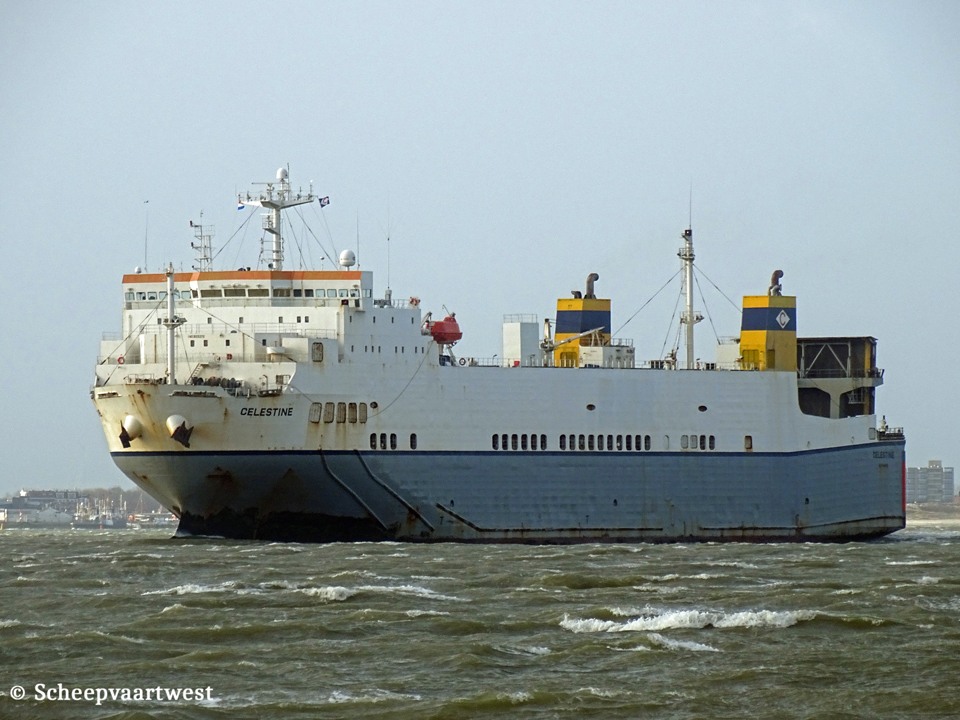

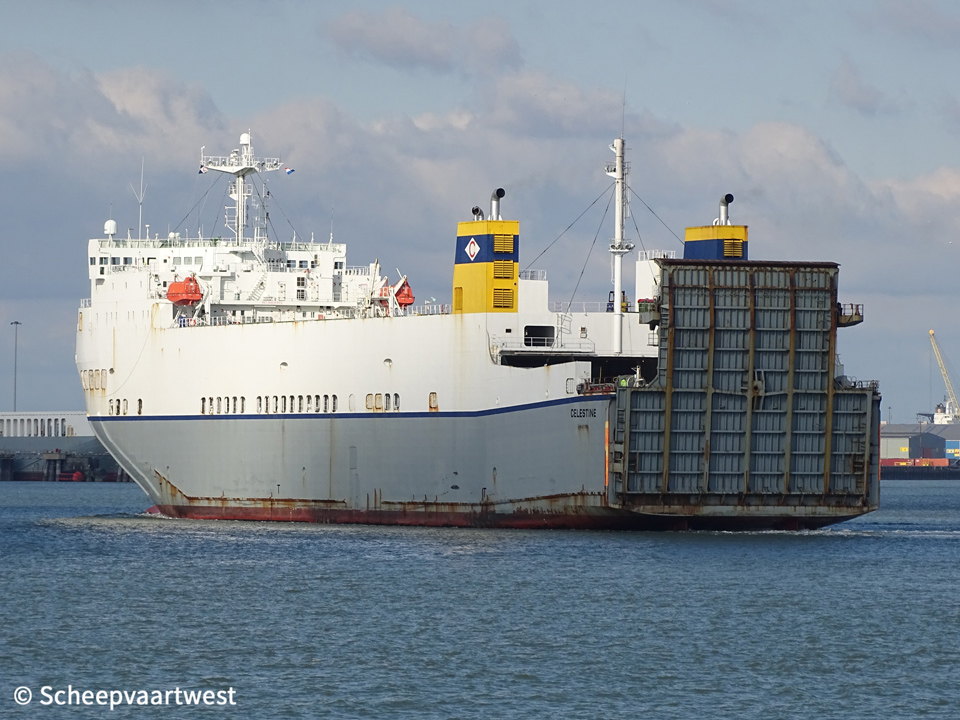

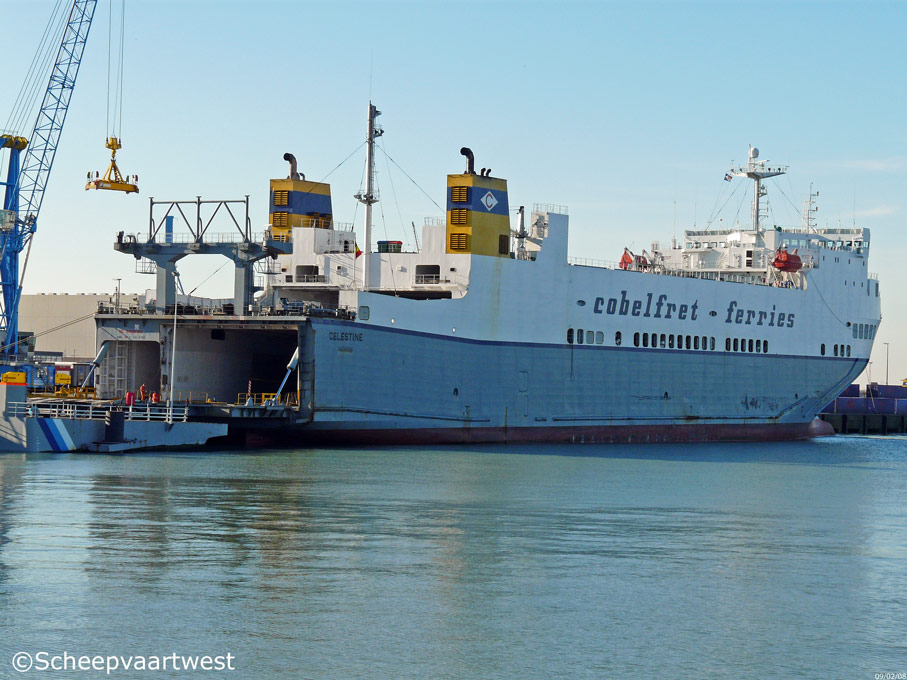

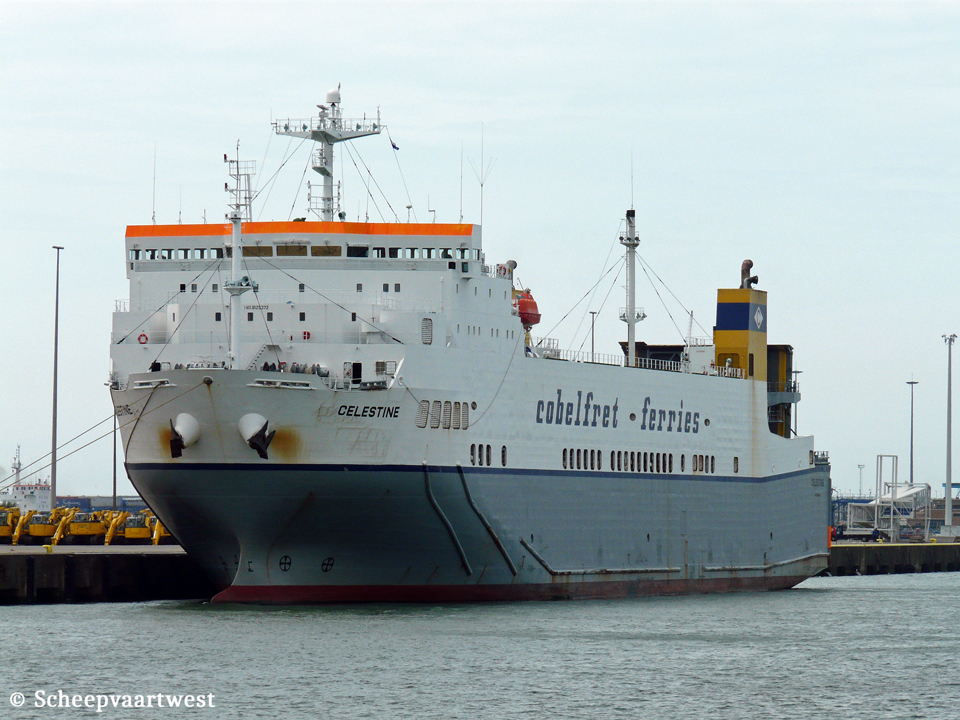

| Westerschelde 14/03/20 | Zeebrugge 17/10/08 | Zeebrugge 17/10/08 | Zeebrugge 22/07/09 | Zeebrugge 09/02/08 | Zeebrugge 09/02/07 | ||||
 |
 |
 |
 |
 |
 |
|||||

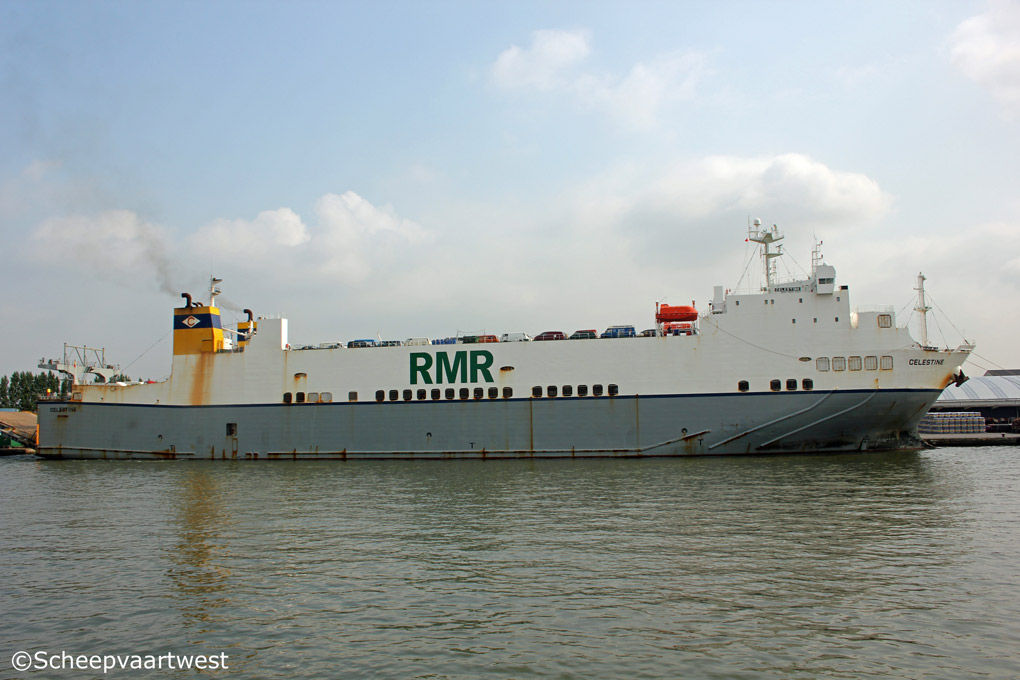

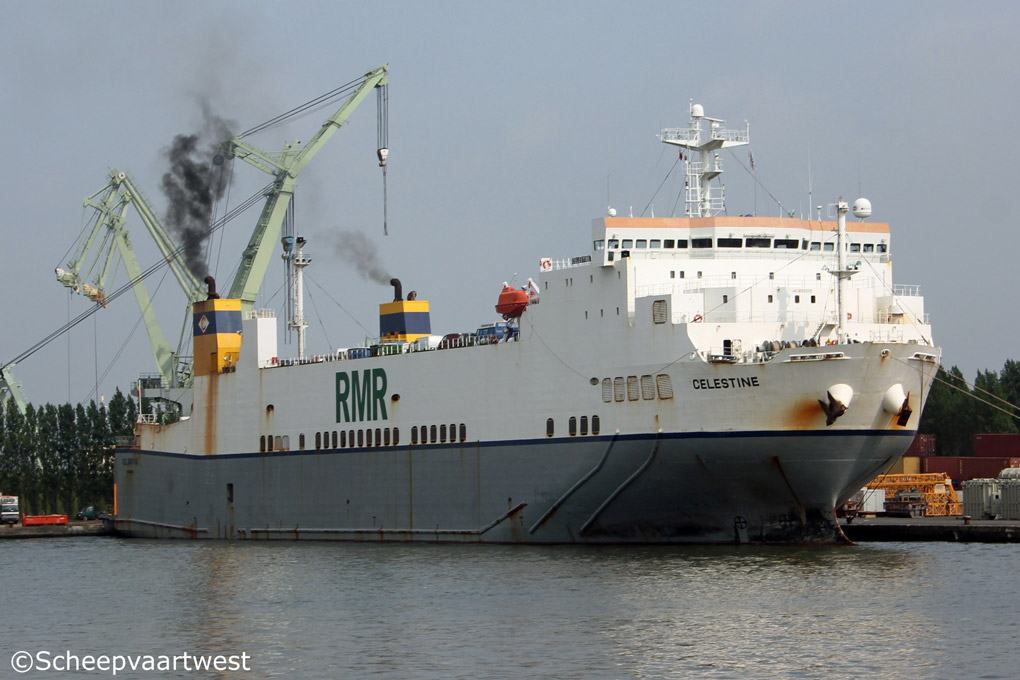

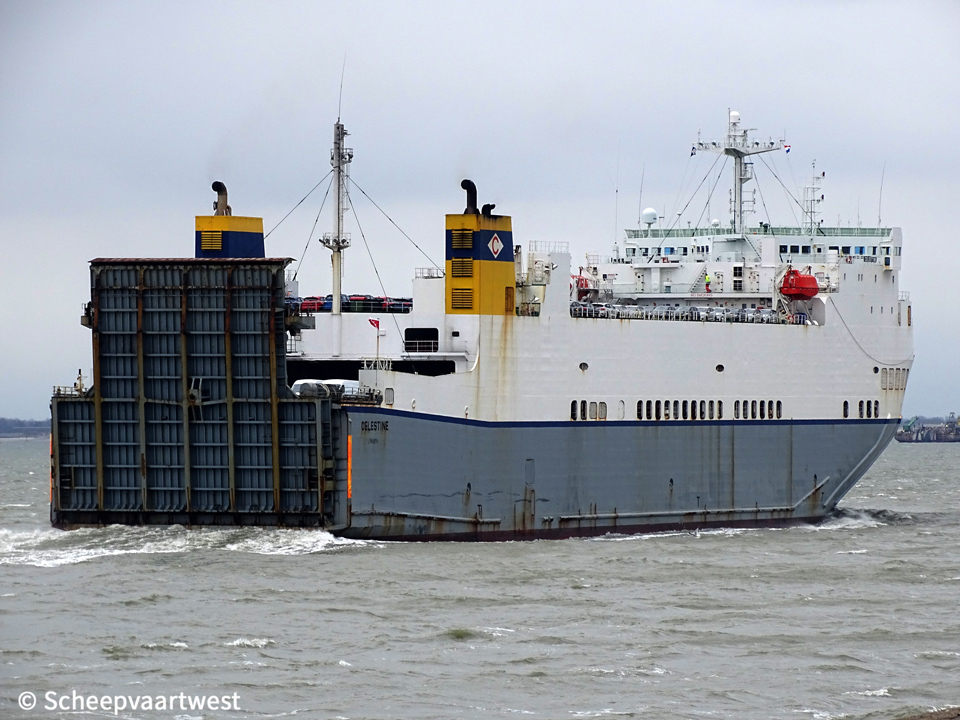

| Westerschelde 14/03/20 | Zeebrugge 28/12/15 | Antwerpen 05/07/13 | Antwerpen 05/07/13 | Antwerpen 05/13/07 | Vlissingen 01/04/20 | |||||
|
Name |
CELESTINE |
|
|
Previous names |
1996 - Sea Crusader - Joint Rapid Deployment Force 1996 - Celestine |
|
|
Type |
Roll-On / Roll-Off carrier |
|
|
IMO-number |
9125372 |
|
|
Call sign |
9HA4248 |
|
|
Flag |
Malta |
|
|
Port of registry |
Valletta |
|
|
Previous flags |
1996 United Kingdom 2003 Bahamas - Call sign: C6TA9 2005 Belgium 2005 G.D. Luxembourg 2008 Belgium, Antwerpen - Call sign: ONDJ |
|
|
GT |
23.986 t |
|
|
DWT |
9.677 t |
|
|
NT |
7.195 t |
|
|
Number of 20ft containers |
300 |
|
|
Length |
162,49 m overall 150,00 m between perpendiculars |
|
|
Breadth |
25,23 m moulded 25,64 m extreme |
|
|
Lanemetres |
2.307 m |
|
|
Draught |
Summer: 6,52 m |
|
|
Keel to mast end |
45,70 m |
|
|
Depth |
15,45 m moulded |
|
|
Speed |
17,8 knots |
|
|
Built |
1996 |
|
|
Keel laid |
18/03/1996 |
|
|
Launch date |
07/06/1996 |
|
|
Date of completion |
04/10/1996 |
|
|
Builder |
Kawasaki Heavy Industries Ltd. Sakaide Japan |
|
|
Yard number |
1465 |
|
|
Hull material |
Steel - Part higher tensile steel |
|
|
Hull type |
Single hull |
|
|
Main engine |
2x MAN-B&W/Kawasaki 7L40/54 - 4 stroke 7 cylinder 400 x 540 mm combustion engines 9.840 kW / 13.384 hp at 514 rpm |
|
|
Propellers |
2x Controllable pitch propellers |
|
|
Generators |
2x Daihatsu 6DK-20 - 4 stroke 6 cylinder 200 x 300 mm diesel engines each 860 kW connected with 2 generators |
|
|
Emergency generator |
1x MAN D0226MLE - 4 stroke 6 cylinder 102 x 116 diesel engine 117 kW connected with generator |
|
|
Bow thruster |
2x 800 kW each |
|
|
Number of decks |
4 |
|
|
Number of passengers |
12 |
|
|
Number of beds |
12 |
|
|
Number of cars |
635 |
|
|
Number of trailers |
156 |
|
|
Loading equipment |
1x Stern door ramp |
|
|
Tank capacities |
Bunker: 1.427 t |
|
|
Crew |
22 |
|
|
Commercial manager |
CldN Ro-Ro S.A. 3-7, rue Schiller 2519 Luxembourg G.D. Luxembourg |
|
|
ISM manager |
Anglo-Eastern Ship Management (NL) B.V. Goes The Netherlands |
|
|
Registered owner |
CldN Ro-Ro S.A. 3-7, rue Schiller 2519 Luxembourg G.D. Luxembourg |
|
|
Previous names & owner |
1996 Sea Crusader - Oceanarrow Ltd. Inc. 1996 Celestine - Oceanarrow Ltd. Inc. 2005 Celestine - Waterways SA 2005 Celestine - Novomar SA 2008 Celestine - Cobelfret Ferries NV 2009 Celestine - Cobelfret Ferries NV & Waterways SA |
|
|
Latest data adjustment |
03 September 2023 |
|
