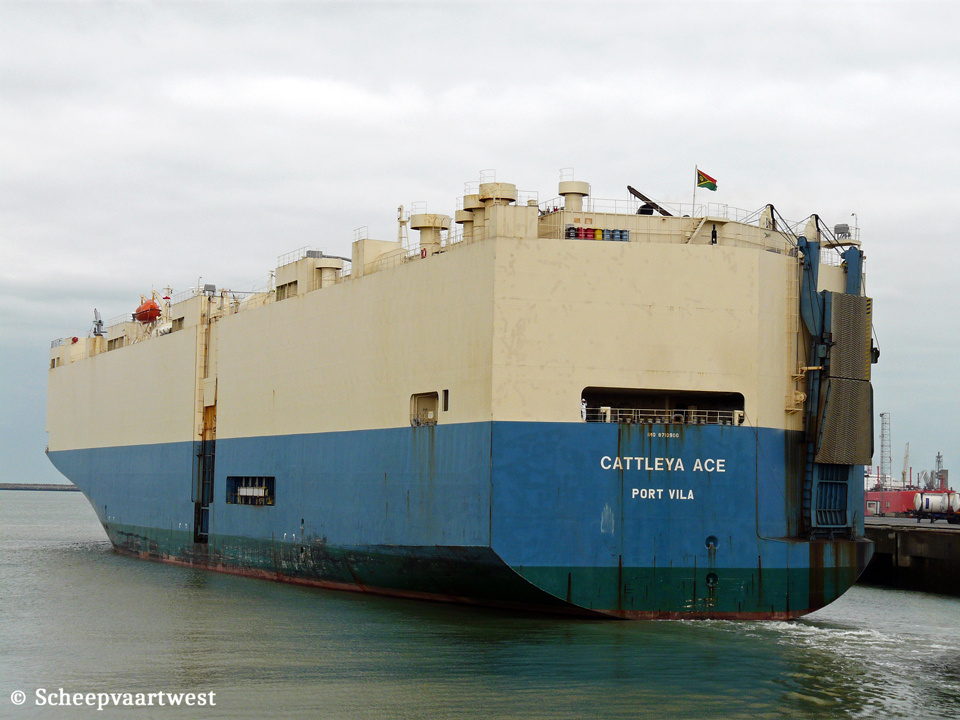

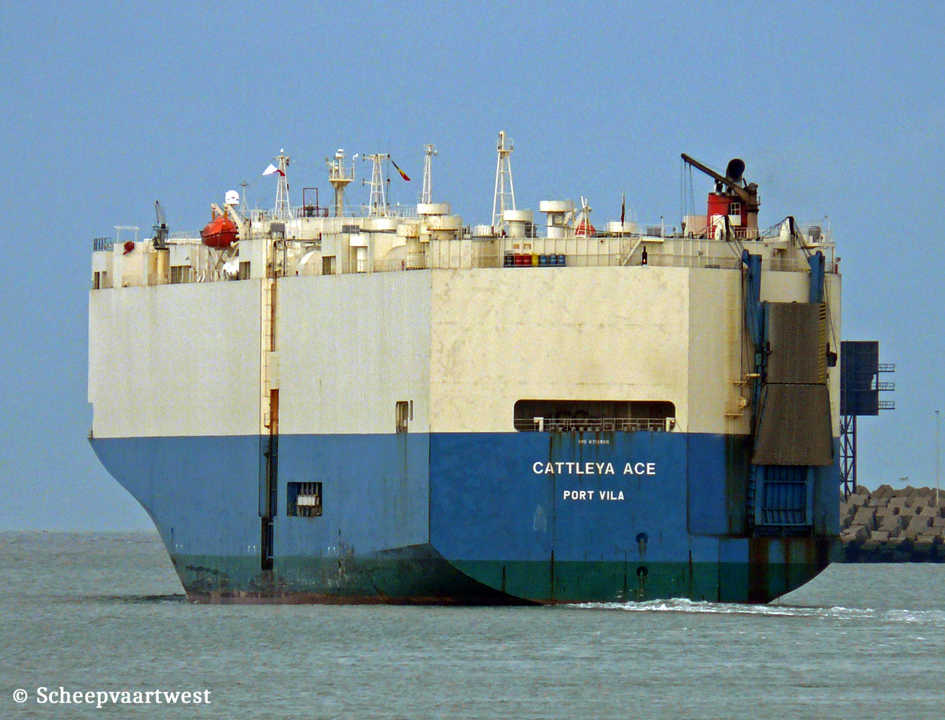

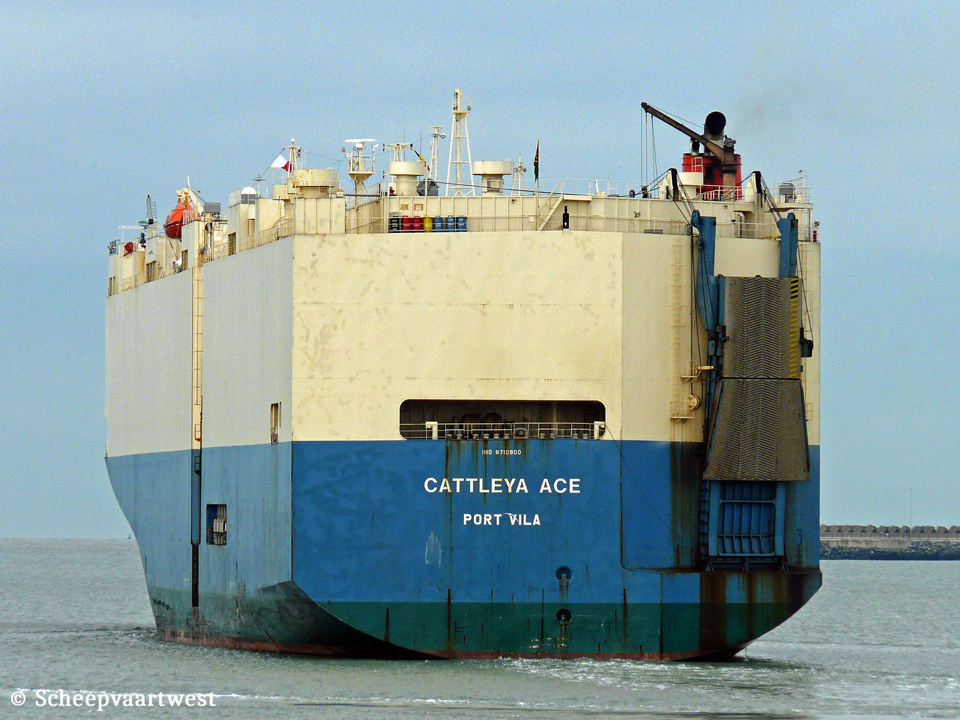

| Zeebrugge 19 October 2008 |
 |
 |
|
| Zeebrugge 19/10/08 | Zeebrugge 19/10/08 | |
|
Name |
CATTLEYA ACE |
|
Type |
Roll-On/Rollo-Off cargo ship - Vehicles carrier PCC - Pure Car Carrier |
|
IMO-number |
8710900 |
|
Call sign |
YJXS7 |
|
Flag |
Vanuatu |
|
Port of registry |
Port Vila |
|
Previous flags |
1988 - 1989 Republic of Panama, Panama City |
|
GT |
56.823 |
|
DWT |
18.762 t |
|
NT |
17.047 |
|
Length |
198,60 m overall 188,02 m between perpendiculars 191,27 m registered |
|
Breadth |
32,21 m over all |
|
Draught |
Summer: 9,673 m |
|
Freeboard |
Summer: 2.756 mm |
|
Depth |
12,40 m |
|
Speed |
21,8 knots |
|
Built |
1988 |
|
Keel laid |
20/10/1987 |
|
Launch date |
31/01/1988 |
|
Date of build |
21/04/1988 |
|
Builder |
Oshima Shipbuilding Co. Ltd. Saikai Japan |
|
Yard number |
10105 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x 2 stroke single acting 7 cylinder 600 x 2.200 mm combustion engine 12.209 kW at 100,0 rpm Manufacturer: Mitsubishi Heavy Industries, Ltd. |
|
Boiler |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 2,60 t/h Manufacturer: Gadelius K.K. (Kajiwara Tekkosho) |
|
Generators |
4x Generatorsets total 3.239 kVA |
|
Cargo Capacity |
Cars: 6.899 Trucks: 329 |
|
Cranes |
1x Crane - SWL - 0,9 t 1x Crane - SWL - 4,0 t |
|
Tank capacities |
Fuel oil: 2.713 m³ Fresh water: 393 m³ Water ballast: 7.396 m³ |
|
Crew |
18 |
|
Manager |
Seiwa Navigation Corp. Tokyo Japan |
|
Registered owner |
Aurora Car Maritime Transport S.A. Panama Republic of Panama |
|
Scrapped |
09/2009 China |
|
Latest data adjustment |
16 March 2025 |
