Westerschelde 21 June 2019 |
|
Name |

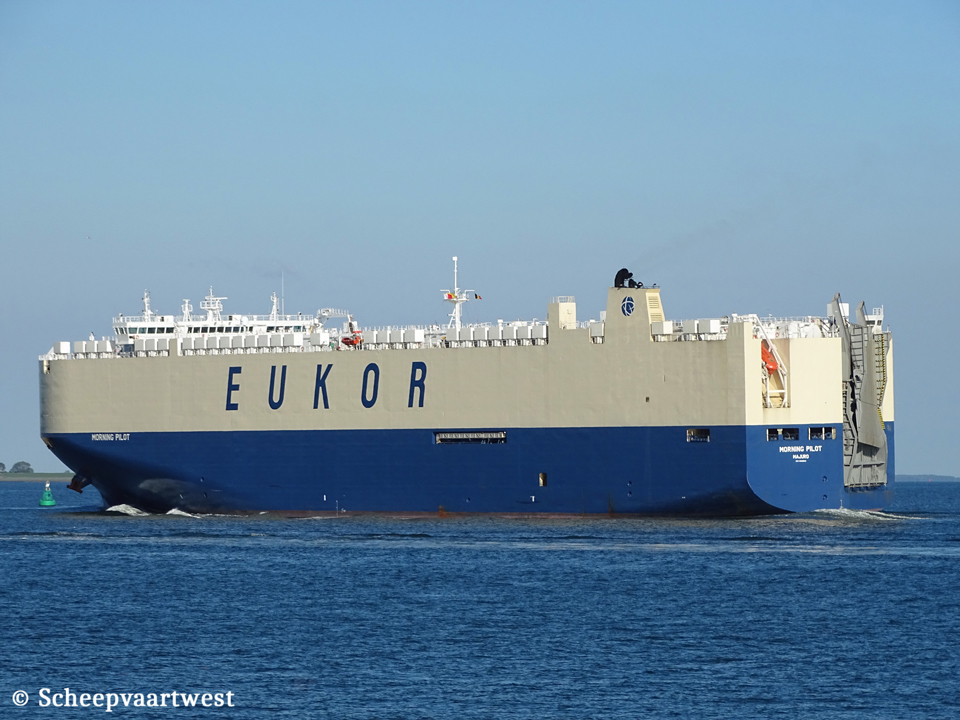

MORNING PILOT |
|
Type |
Roll-On/Roll-Off car carrier PCTC- Pure Car and Truck Carrier |
|
IMO-number |
9669031 |
|
Call sign |
V7ER7 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
65.276 t |
|
DWT |
Summer: 22.675 t |
|
NT |
25.639 t |
|
Length |
199,90 m overall 188,80 m between perpendiculars |
|
Breadth |
35,43 m |
|
Draught |
Summer: 10,52 m |
|
Reg. dimensions L x B x D |
194,33 x 35,40 x 20,38 m |
|
Rule dimensions L x B x D |
188,80 x 35,40 x 14,20 m |
|
Freeboard |
Summer: 2.414 mm |
|
Depth |
20,38 m |
|
Speed |
Max: 20,4 knots |
|
Built |
2014 |
|
Keel laid |
02/09/2013 |
|
Launch date |
13/12/2013 |
|
Date of completion |
02/05/2014 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Gunsan South Korea |
|
Yard number |
H2611 |
|
Hull material |
Steel |
|
Main engine |
1x Hyundai/MAN-B&W 8S60ME-C - 2 stroke single acting 8 cylinder 600 x 2.400 mm combustion engine 15.200 kW / 20.666 hp at 105,0 rpm Build: 08/2013 Manufacturer: Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
Auxiliary water tube boiler - 8,8 kg/cm² Heating surface: 30,2 m² Economizer EGE - 11,7 kg/cm² Heating surface: 332,0 m² Build: 06/2013 Manufacturer: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea |
|
Generators |
3x Hyundai/Himsen 6H25/33 - 4 stroke 6 cylinder 250 x 330 diesel engines each 1.800 kW connected with generators each 1.625 kVA - 450 Volt |
|
Bow thruster |
1x 2.400 kW |
|
Car capacity |
7.627 |
|
Number of ramps |
2 |
|
Tank capacities |
Fuel oil: 3.776,1 m³ Fresh water: 293,9 m³ Water ballast: 9/523,6 m³ |
|
Crew |
23 |
|
Manager |
Eukor Car Carriers Inc. 28th Floor, Lotte World Tower, 300, Olympic-ro, Songpa-gu Seoul, 05551 South Korea |
|
Technical manager |
Wilhelmsen Ship Management (Korea) Ltd. 10th Floor, Marine Center Building, 52 Chungjang-daero 9beon-gil, Jung-gu Busan, 48936 South Korea |
|
Registered owner |
Pilot International Associates SA Care of EUKOR Car Carriers Inc 28th Floor, Lotte World Tower, 300, Olympic-ro, Songpa-gu Seoul, 05551 South Korea |
|
Latest data adjustment |
12 July 2021 |
