Name |

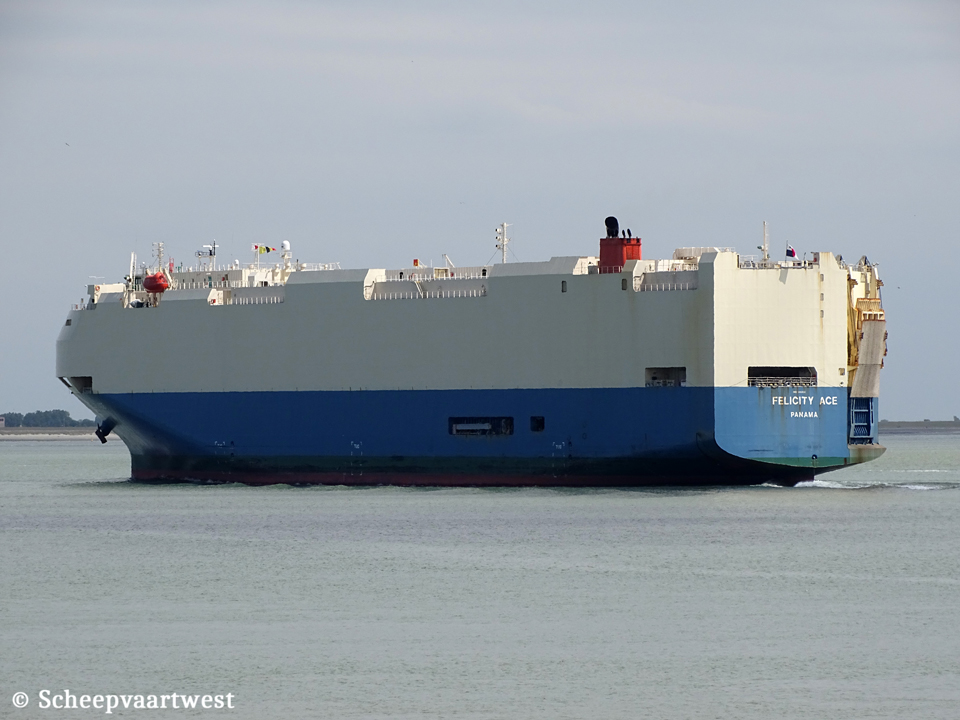

FELICITY ACE |
|
Type |
Roll-On/Roll-Off carrier - Vehicles carrier |
|
IMO-number |
9293911 |
|
Call sign |
3ECX4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
60.118 t |
|
DWT |
Summer: 17.738 t |
|
NRT |
18.543 t |
|
Length |
199,99 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 9,73 m |
|
Moulded L x B x D |
192,00 x 32,26 x 14,65 m |
|
Registered L x B x D |
193,94 x 32,26 x 21,17 m |
|
Freeboard |
Summer: 4.965 mm |
|
Depth |
14,65 m moulded |
|
Speed |
Max: 22,3 knots |
|
Built |
2005 |
|
Keel laid |
09/12/2004 |
|
Launch date |
02/07/2005 |
|
Date of completion |
08/10/2005 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. Imabari Japan |
|
Yard number |
5306 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Number of decks |
10 |
|
Main engine |
1x Mitsubishi 8UEC60LSH - 2 stroke 8 cylinder 600 x 2.300 mm combustion engine 15.090 kW / 20.522 bhp at 98,0 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 665 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,69 MPa Evaporation: 3,82 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 1.100 kW |
|
Number of cars |
5.232 |
|
Tank capacities |
Fuel oil: 2.991 m³ Fresh water: 404 m³ |
|
Manager |
MOL Ship Management (Singapore) Pte. Ltd. Republic of Singapore |
|
Operator |
Mitsui O.S.K. Lines Ltd. - MOL 1-1, Toranomon 2-chome Minato-ku Tokyo 105-8688 Japan |
|
Registered owner |
Snowscape Car Carriers SA Cvare of Mitsui O.S.K. Lines Ltd. - MOL 1-1, Toranomon 2-chome Minato-ku Tokyo 105-8688 Japan |
|
Latest data adjustment |
30 May 2021 |
