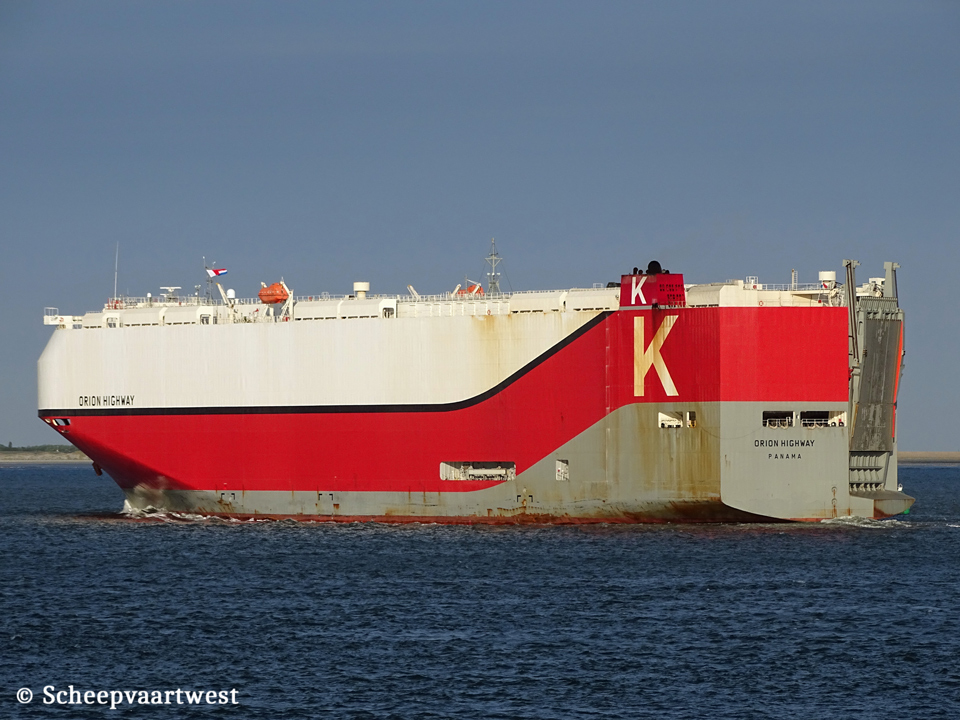

Orion Highway IMO 9728071 01

Westerschelde 02 July 2019



Name

ORION HIGHWAY

Type

Roll-On/Roll-Off carrier

IMO-number

9728071

Call sign

3ESA4

Flag

Republic of Panama

Port of registry

Panama City

GT

76.299 t

DWT

Summer: 20.532 t

NT

22.890 t

Length

199,99 m overall

Breadth

37,50 m moulded

Draught

9,93 m

Moulded L x B x D

190,80 x 37,50 x 14,85 m

Registered L x B x D

194,06 x 37,50 x 22,04 m

Freeboard

Summer: 4.966 mm

Depth

14,85 m moulded

Speed

Max: 21,7 knots

Built

2016

Keel laid

23/06/2014

Launch date

25/11/2015

Date of completion

31/03/2016

Builder

Japan Marine United Corporation & Naikai Zosen Corporation

Japan

Yard number

5045 / 776

Hull material

Steel

Main engine

1x Mitsui/MAN-B&W 7S60ME-C8 - 2 stroke single acting 7 cylinder 600 x 2.400 combustion engine 13.000 kW at 102,6 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 596 mm

Propellers

1

Boilers

1x Auxiliary boiler - 0,7 MPa

Evaporation: 2,55 t/h

1x Auxiliary boiler exhaust gas boiler - 0,5 MPa

Evaporation: 1,98 t/h

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

4x Generatorsets total 4.850 kVA

Number of cars

7.625

Tank capacities

Fuel oil: 3.007 m³

Fresh water: 322 m³

Crew

24

Manager

"K" Line RoRo Bulk Ship Management Co., Ltd.

Operator

K-Line (Kawasaki Kisen Kaisha, Ltd.)

Iino Building, 1-1, Uchisaiwai-cho 2-chome, Chiyoda-ku

Tokyo, 100-8540

Japan

Registered owner

Manatee Navigation SA

Towa Building 2-3, Kaigan-dori 2-chome Chuo-ku

Kobe-shi Hyago-ken, 650-0024

Japan

Latest data adjustment

25 May 2021
