Pleiades Spirit - IMO 9409326

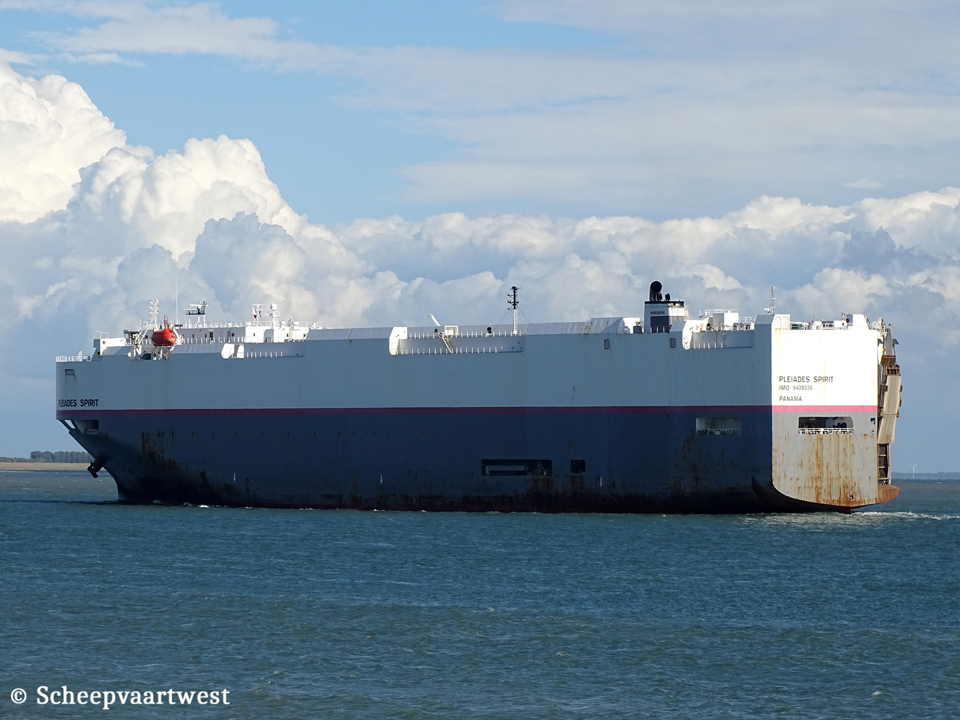

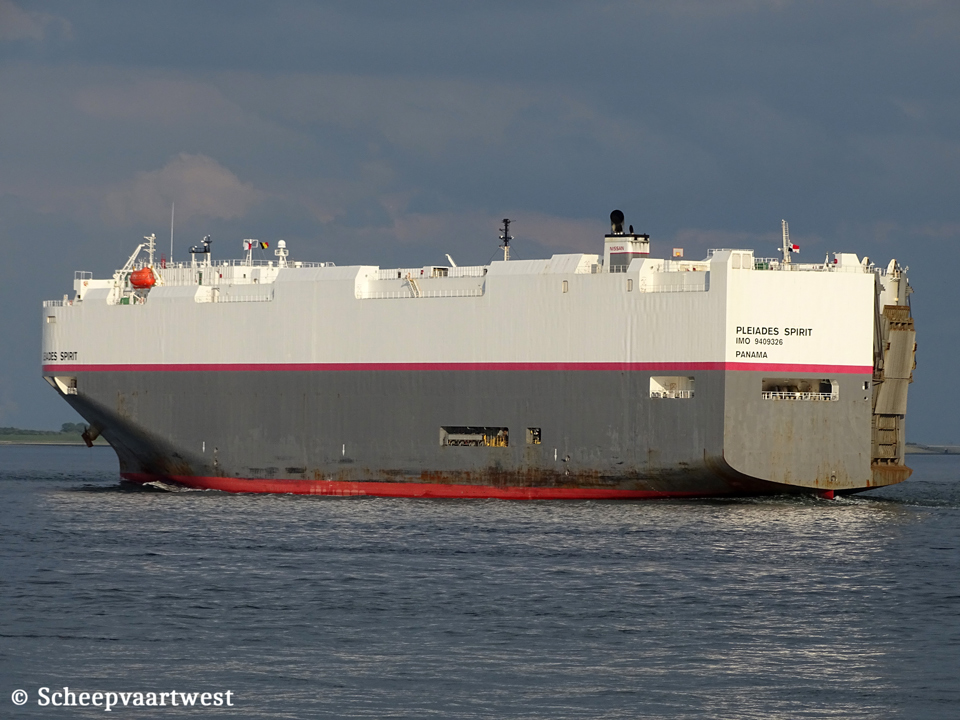

Westerschelde 06 June 2019

Name

PLEIADES SPIRIT

Type

Roll-On/Roll-Off carrier - Vehicle carrier

PCTC - Pure Car and Truck Carrier

IMO-number

9409326

Call sign

3FYP8

Flag

Republic of Panama

Port of registry

Panama City

GT

60.330 t

DWT

Summer: 17.242 t

NT

18.598 t

Length

199,99 m

Breadth

32,26 m moulded

Draught

Summer: 9,73 m

Moulded L x B x D

192,00 x 32,26 x 14,65 m

Registered L x B x D

193,94 x 32,26 x 21,17 m

Keel to mast end

51,06 m

Freeboard

Summer: 4.965 mm

Depth

14,65 m moulded

Speed

Max: 22,3 knots

Built

2008

Keel laid

25/06/2008

Launch date

13/10/2008

Date of completion

22/12/2008

Builder

Shin Kurushima Toyohashi Shipbuilding Co., Ltd.

Toyohashi

Japan

Yard number

3615

Hull material

Steel

Hull type

Single hull

Main engine

1x MAN-B&W/Mitsui 7S60MC-C - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 15.090 kW / 20.522 hp at 98,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 665 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 0,69 MPa

Evaporation: 3,69 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

3x Main diesel generatorsets each 1.100 kW

Bow thruster

1.250 kW

Number of cars

6.303

Number of ramps

2

Tank capacities

Fuel oil: 2.992 m³

Fresh water: 404 m³

Lifting equipment

2x Cranes - SWL 4,0 t each

Crew

22

Commercial manager

Nissan Motor Car Carrier

Kayaba-cho Tower, 1-21-1, Shinkawa 1-chome, Chuo-ku

Tokyo, 104-0033

Japan

ISM Manager

World Marine Co., Ltd.

9th Floor Kanpai Building

22-27 Higashigotanda 5-chome Shinagawa-ku

Tokyo-to, 141-0022

Japan

Registered owner

Raccoon Navigation Inc.

Care of Nissan Motor Car Carrier Co Ltd (Nissan Senyo Sen KK)

Kayaba-cho Tower, 1-21-1, Shinkawa 1-chome, Chuo-ku

Tokyo, 104-0033

Japan

Latest data adjustment

18 January 2022
