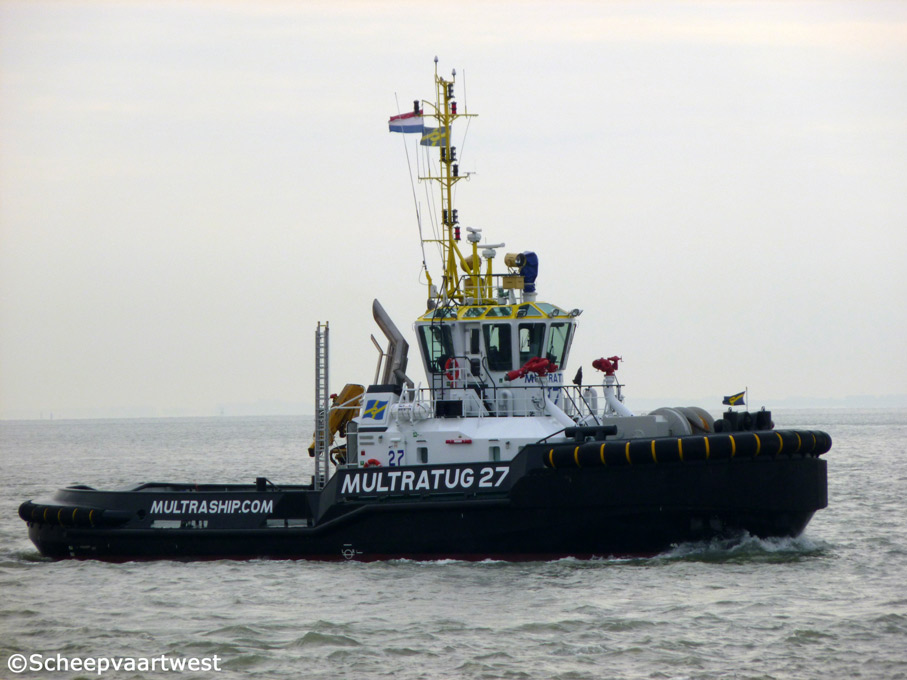

Multratug 27 01

Westerschelde 21 September 2013

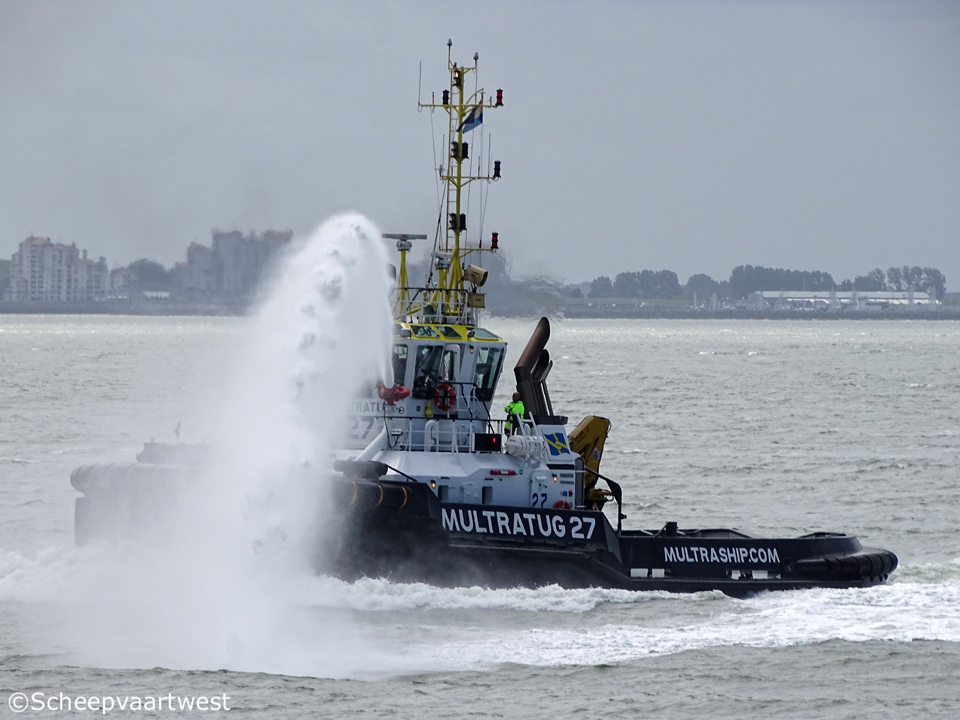

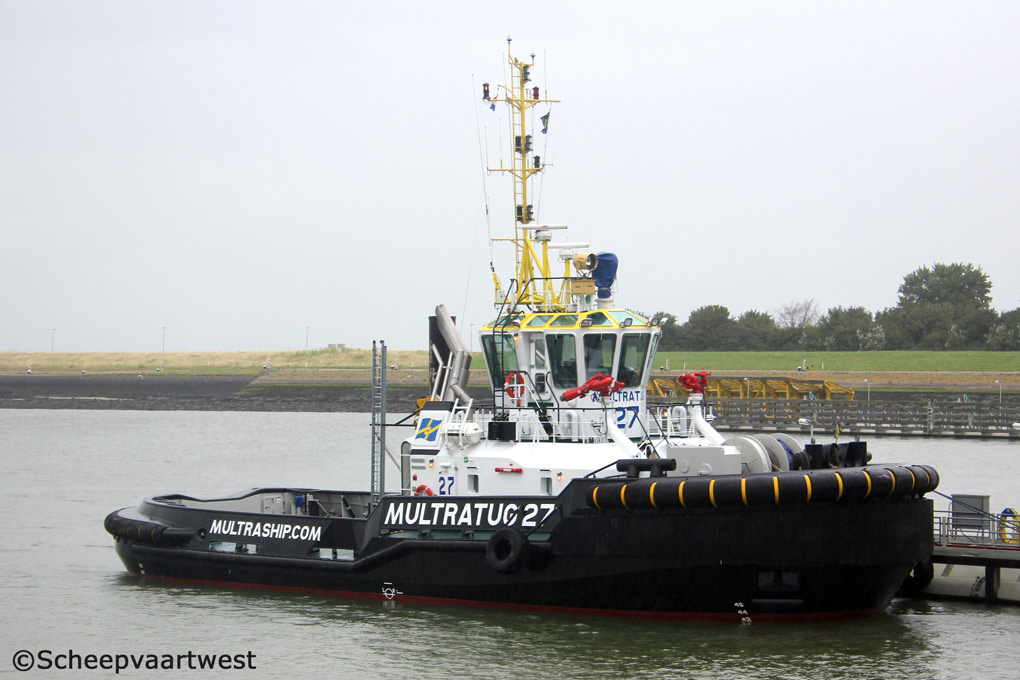

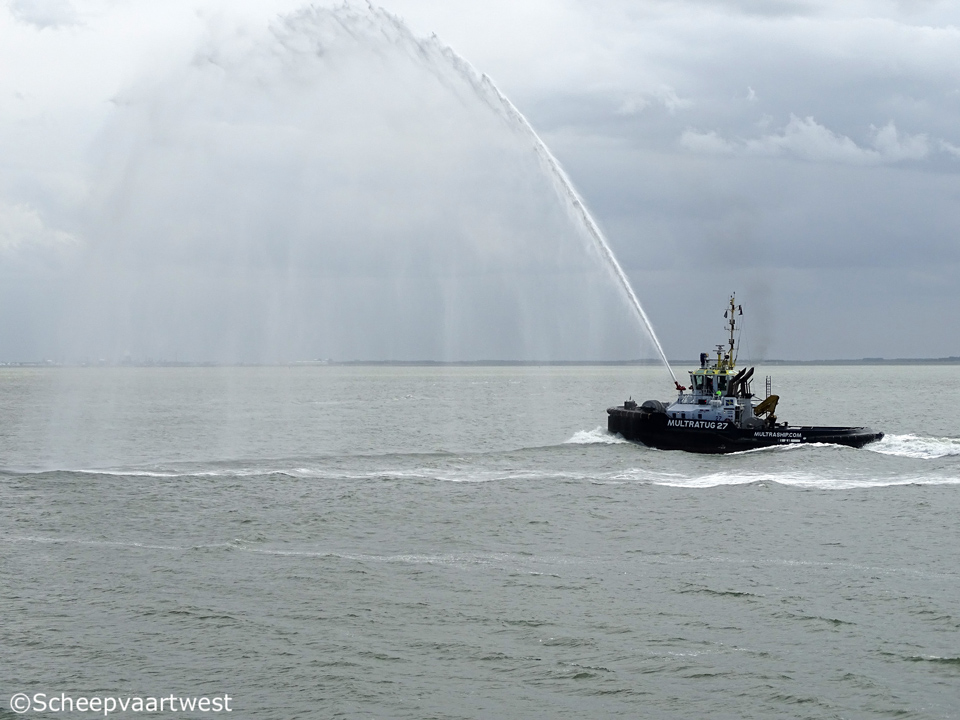

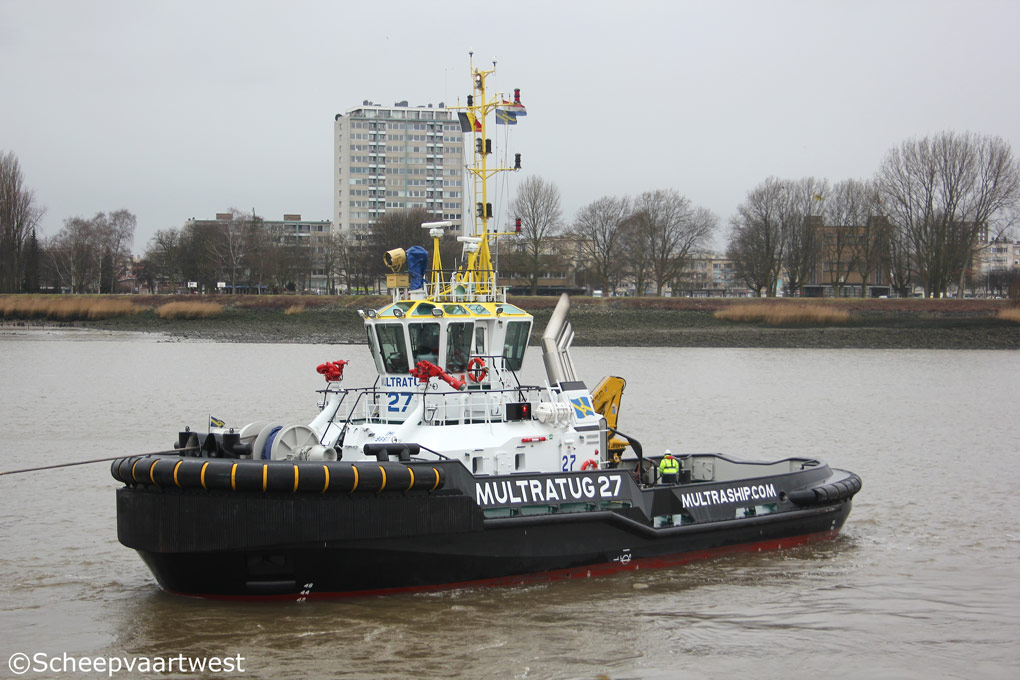

Multratug 27 02   Multratug 27 04   Multratug 27 07   Multratug 27 05
Terneuzen 17/08/14 Antwerpen 03/03/15   Westerschelde 07/07/17   Westerschelde 07/07/17

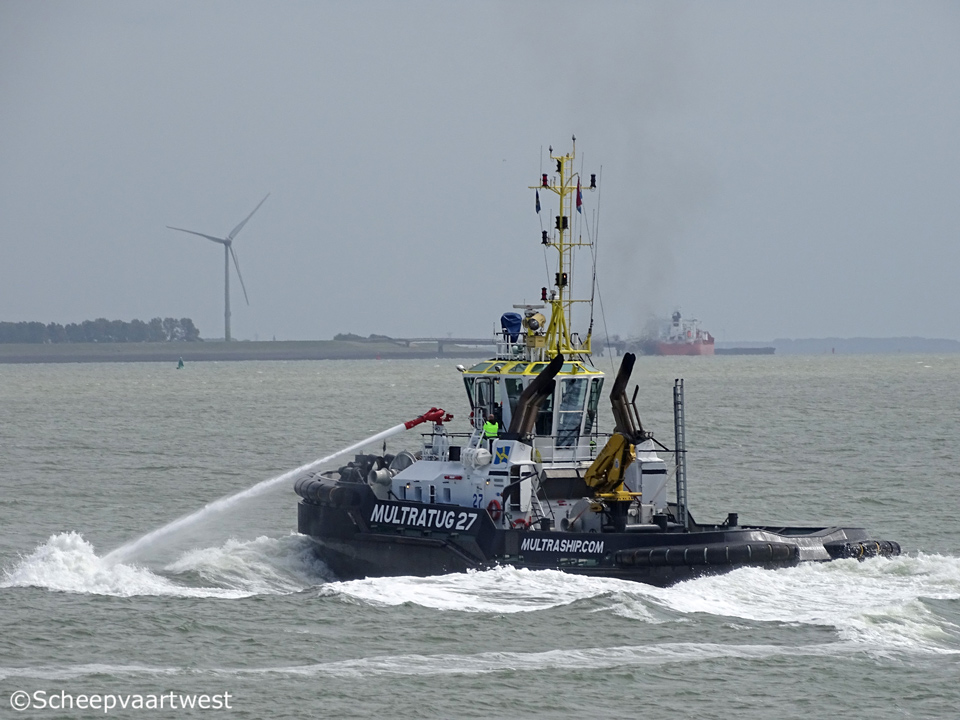

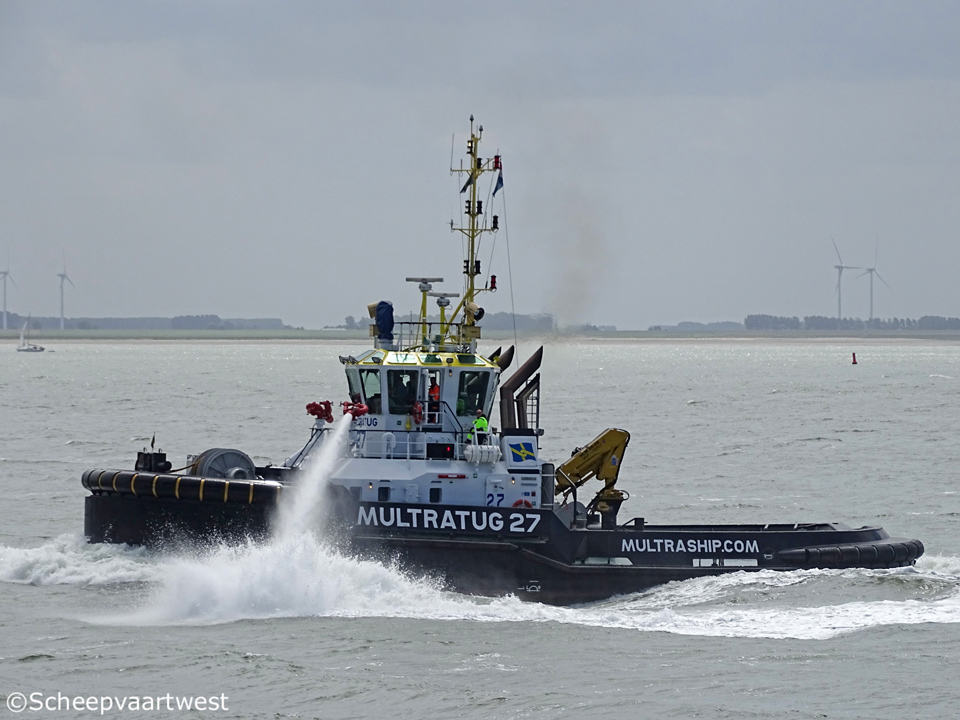

Multratug 27 06   Multratug 27 08
Westerschelde 07/07/17   Westerschelde 07/07/17



Name

MULTRATUG 27

Type

Tug type ASD 2810 - Escort tug - Fire Fighting

IMO-number

9667875

Call sign

PCWB

Flag

The Netherlands

Port of registry

Terneuzen

GT

294 t

DWT

Summer: 136 t

NT

88 t

Length

28,67 m overall

25,78 m between perpendiculars

Breadth

10,43 m overall

Draught

Max.: 4,80 m

Air draft

15,00 m

Speed

Max.: 13,4 knots

Built

2013

Date of completion

22.07.2013

Builder

Damen Shipyards S.A.
Galati
Romania

Yard number

512322

Hull material

Steel

Main engine

2x Caterpillar 3516C TA HD/C - 16 cylinder diesel engines - Total 3.728 kW / 5.068 bhp at 1.600 rpm

Built: 2013

Propulsion

2x Azimuth thrusters Rolls Royce us 205

Generators

2x Caterpillar C4.4 TA wain diesel generatorsets each 107 kVA - 230/400 Volt, 50 Hz

Bollard pull

Max.: 63,2 t

Deck lay-out

Deck space: 40 m²

Anchor/Towing winch: 1x Hydraulically driven double drum two speed pull type ATW-2211-H19 - capacity: pull 35 t at 9,2 m/min - Brake capacity: 150 t

Towing winch aft: 1x Hydraulically driven two speed pull -Capacity: pull 35 t at 9,2 m/min - Brake capacity: 150 t

Towing hook: : Mampaey 65 t

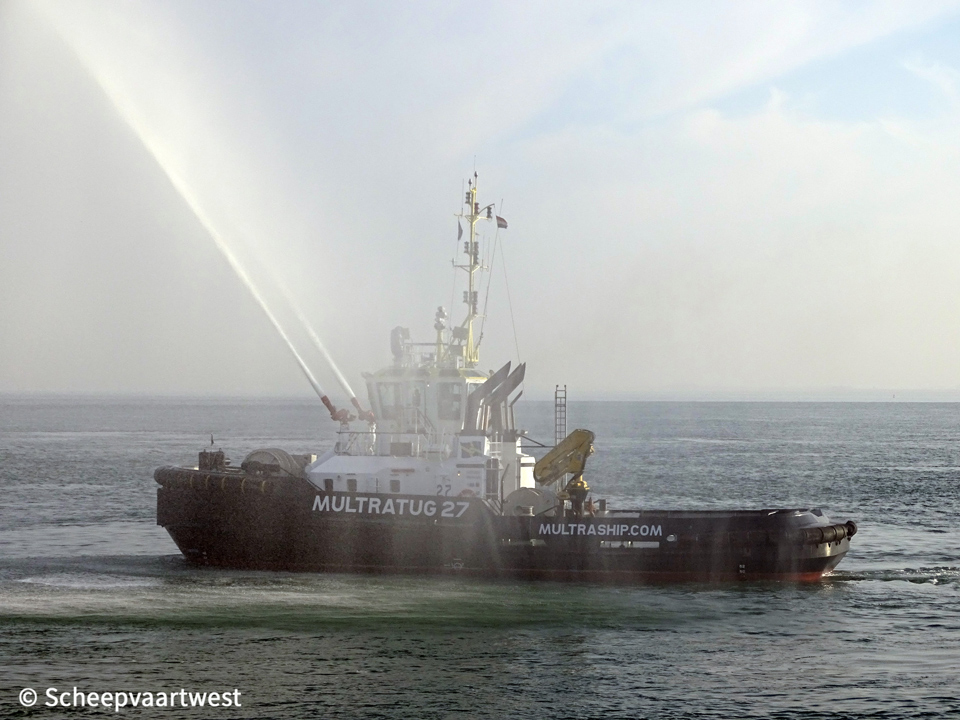

FIFI 1 System

1x Diesel driven pump capacity 2.400 m³/h with 2 FiFi monitors each 1.200 m³/h - water / foam

Tank capacities

Fuel oil: 72,3 m³

Fresh water: 14,9 m³

Lubrication oil: 4,5 m³

Foam: 22,7 m³

Dirty oil: 3,1 m³

Bilge water: 5,1 m³

Sludge: 3,1 m³

Hydraulic oil: 1,4 m³

Sewage: 6,7 m³

Lifting equipment

1x Deck crane - SWL 2.200 kg at 8,60 m

Accommodation

2x 1-Men cabins

3x 2-Men cabins

1x Mess room

1x Galley

Owner

Multraship Towage & Salvage
Scheldekaai 48
4530 AB Terneuzen
The Netherlands

Latest data adjustment

23 May 2014
