Westerschelde 12 October 2013 |
 |
 |
 |
 |
|||
| Westerschelde 07/08/15 | Westerschelde 07/08/15 | Antwerpen 05/09/16 | Antwerpen 05/09/16 | |||
|
Name |

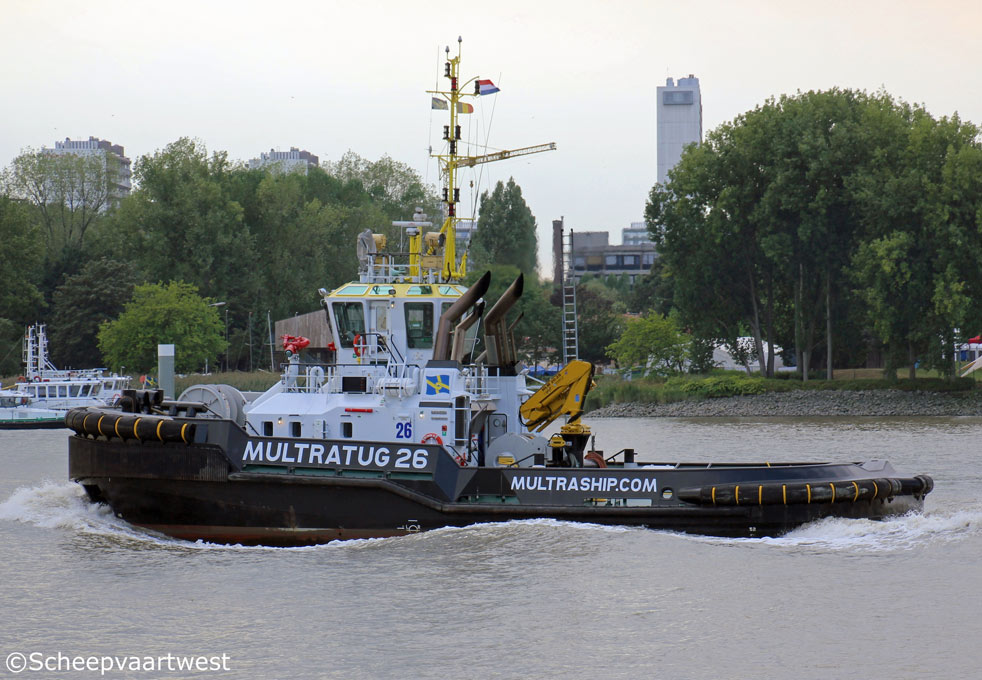

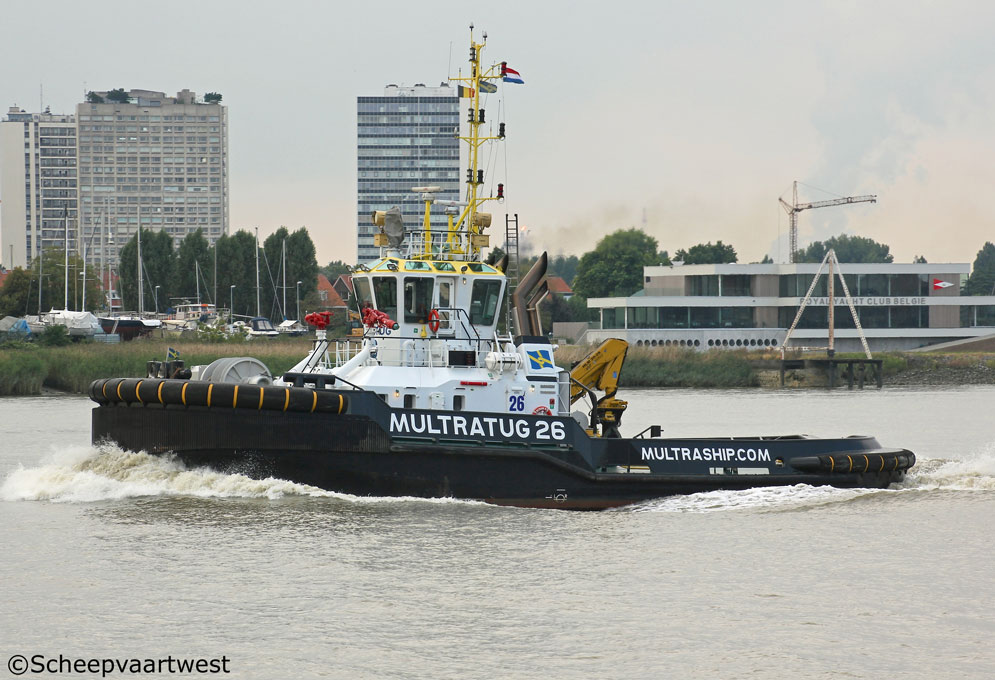

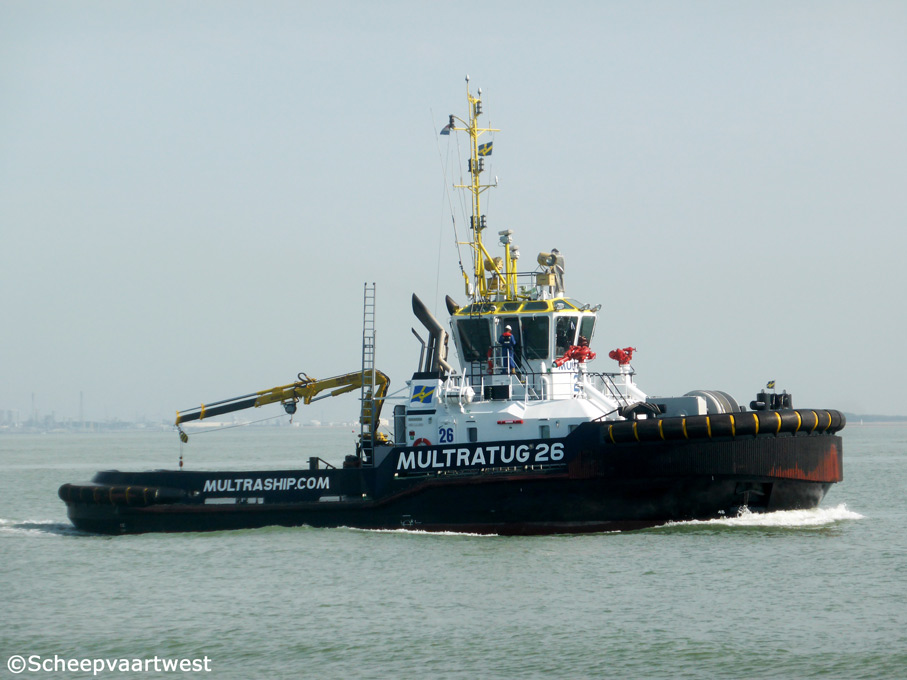

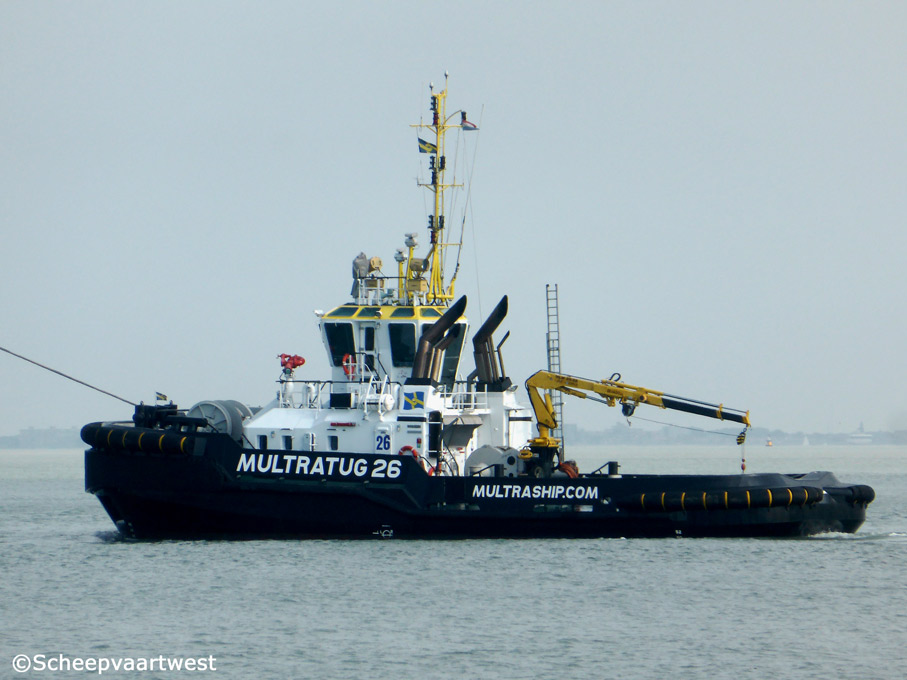

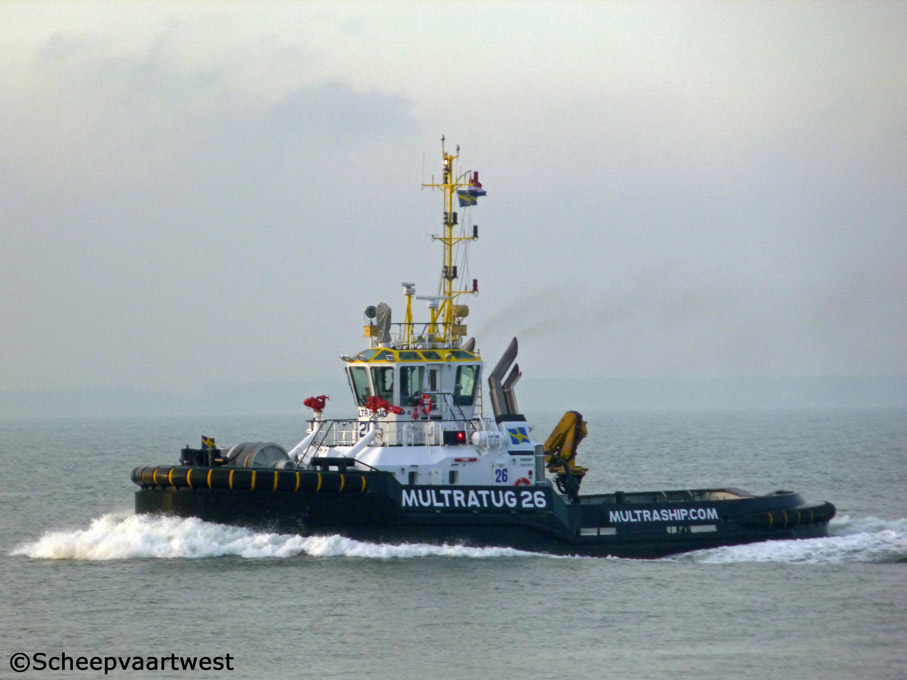

MULTRATUG 26 |
|
Type |
Tug |
|
IMO-number |
9667863 |
|
Call sign |
PCWE |
|
Flag |
The Netherlands |
|
Port of registry |
Terneuzen |
|
GT |
294 t |
|
DWT |
Summer: 160 t |
|
NT |
88 t |
|
Length |
28,67 m overall 25,78 m between perpendiculars |
|
Breadth |
10,43 m overall |
|
Draught |
Max.: 4,80 m |
|
Air draft |
15,00 m |
|
Speed |
13,4 knots |
|
Built |
2013 |
|
Date of completion |
30.06.2013 |
|
Builder casco |
Damen Shipyards Galati Yard number: 512321 |
|
Builder completion |
Damen Shipyard Gorinchem |
|
Hull material |
Steel |
|
Main engine |
2x Caterpillar 3516C TA HD/C diesel engines total power 3.730 kW / 5.000 bhp at 1.600 rpm |
|
Propulsion system |
2x Azimuth Thrusters Rolls Royce us 205 diameter: 2.400 mm |
|
Generators |
2x Caterpillar C4.4 TA main dieselgeneratorsets each 107 kVA 230/400 V, 50 Hz |
|
Bollard pull |
63,2 t |
|
Deck lay-out |
Deck space: 8,00 x 5,00 m Anchor/Towing winch: 1x hydraulically driven double drum two speed pull Type ATW-2211-H19 Capacity: pull 35 ton at 9,20 m/min Brake Capacity: 150 t Towing winch aft: 1 hydraulically driven two speed pull Brake capacity: 150 t Capacity: pull 35 t at 9,20 m/min Towing hook aft: Mampaey 65 t Capstan: Damen ce-50kn |
|
FIFI 1 system |
1x Diesel driven pump capacity 2.400 m³/h |
|
FiFi monitors |
2x 1.200 m³/h - water / foam |
|
Tank capacities |
Fuel oil: 72,3 m³ Fresh water: 14,9 m³ Lubrication oil: 4,5 m³ Foam: 22,7 m³ Dirty oil: 3,1 m³ Bilge water: 5,1 m³ sludge: 3,1 m³ Hydraulic oil: 1,4 m³ Sewage: 6,7 m³ |
|
Lifting equipment |
1x Deck crane - SWL 2.200 kg at 8,60 m |
|
Accommodation |
1-Men Cabins: two 2-Men Cabins: three Mess room: one Galley: one |
|
Owner |
Multraship Toxage & Salvage |
|
Latest data adjustment |
06 April 2014 |
