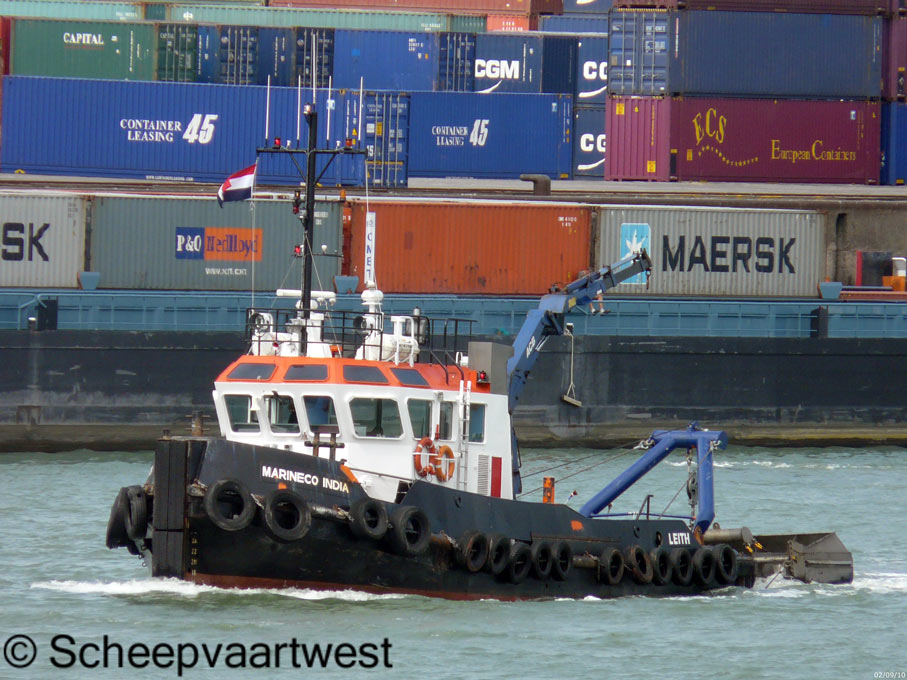

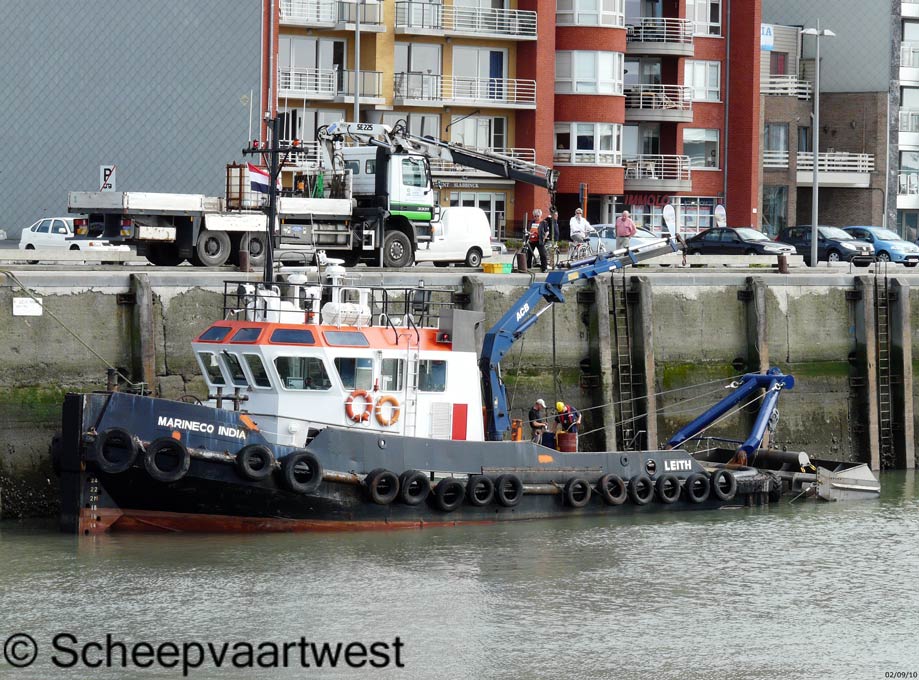

| Zeebrugge 02 September 2010 |
 |
 |
|
| Zeebrugge 02/09/10 | Zeebrugge 02/09/10 | |
|
Name |
MARINECO INDIA |
|
Previous names |
Oil Randan |
|
Type |
Tug - pusher |
|
IMO-number |
9065807 |
|
Call sign |
MKDF3 |
|
Flag |
Scotland - United Kingdom |
|
Port of registry |
Leith |
|
GT |
68 t registered |
|
Length |
19,50 m overall 18,10 m registered |
|
Breadth |
6,20 m overall 6,00 m moulded |
|
Draught |
Light ship approx: 2,01 m aft Loaded approx: 2.30 m aft |
|
Freeboard |
720 mm |
|
Depth |
2,70 m |
|
Speed |
12,0 knots |
|
Built |
1993 Similar but arguably superior design & layout as Damen 1906 |
|
Rebuilt |
Summer 2005 major overhaul & refit including engine rebuild & hull shotblast. Installation of new deck crane and towing winch. Installed accommodation and upgraded galley and wheelhouse. Highly manoeuvrable—does not require bow thruster. Wheelhouse accommodates up to 12 passengers. |
|
Builder |
Mctay Marine |
|
Yard number |
111 |
|
Hull type |
Single hull |
|
Main engine |
2x Caterpillar Type 3406 diesel engines - each 410 hp total 612 kW at 1.800 rpm |
|
Propulsion |
2x Screw fixed pitch props in nozzles |
|
Generators |
2x Lister diesel generatorset each 37 kVA |
|
Free deck area |
38,5 m² |
|
Deck load |
Max.: 15,0 t, lashing provisions available |
|
Pumps - Bilge / fifi |
1x Diesel fuel oil cap.32,0 m³/h 1x Engine driven cap.18,0 m³/h 1x Electric cap 18,0 m³/h 1x Bilge water separator cap 0,5 m³/h |
|
Tank capacities |
Fuel oil: 21,0 m³ Potable water: 2,5 m³ Dirty lube oil: 2,0 m³ |
|
Lifting equipment |
1x Deck crane - SWL 25,0 t |
|
Deck equipment |
1x 12,0 t towing winch 1x 5,0 t capstan 1x 5,0 t roller 1x 12,0 t a frame |
|
Bollard pull |
13,0 t |
|
Owner |
Marineco UK Ltd. |
|
Contact |
MarineCo UK Ltd.The Steading Pentland MainsMidlothian EH20 9QG |
|
Remarks |
Wheelhouse ideal for survey work and passenger carryingLarge raised 360° visibility wheelhouse |
|
Renamed |
02.2011 Dancing Water - The Netherlands, Tollebeek - Call sign: PBYJ |
