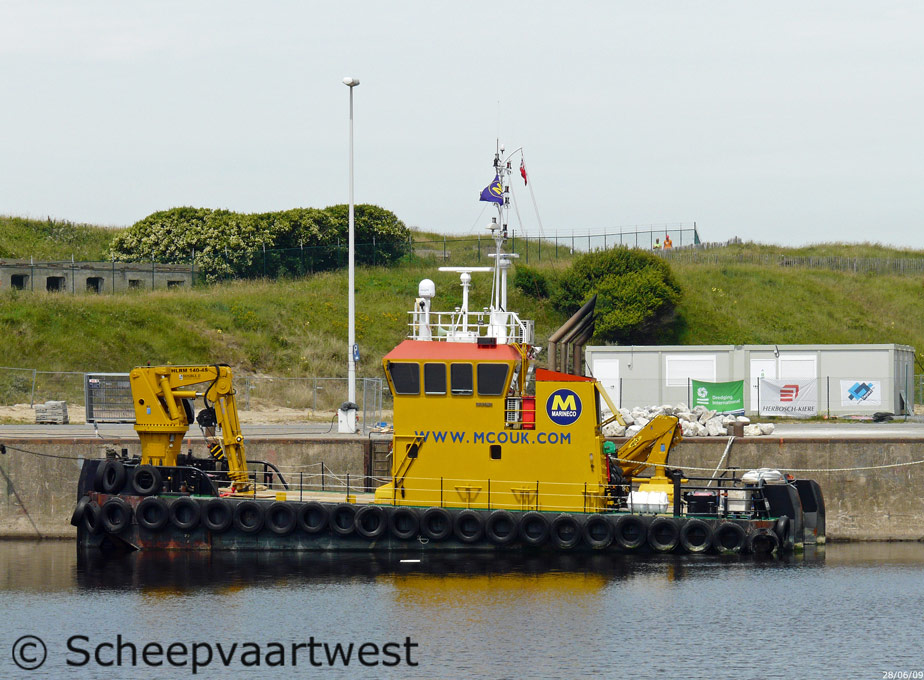

| Oostende, Belgium 28 June 2009 |
|
Name |
MARINECO HATHI |
|
Type |
Tug boat coastal area- Utility vessel Damen Multicat Type |
|
IMO-number |
9479723 |
|
Call sign |
2AOA9 |
|
Flag |
United Kingdom |
|
Port of registry |
Leith |
|
GT |
154 t |
|
DWT |
250 t |
|
NT |
46 t |
|
Displacement |
370 t |
|
Length |
23,33 m overall 22,83 m between perpendiculars |
|
Breadth |
9,00 m moulded |
|
Draught |
Summer: 2,25 m |
|
Freeboard |
Summer: 700 mm |
|
Depth |
At sides : 3,20 m |
|
Speed |
12,0 knots |
|
Built |
2008 |
|
Date of completion |
19.03.2008 |
|
Builder casco |
Damen Kozle Shipyard Yard number: 1119 |
|
Builder completed |
Damen Shipyard Yard number: 1586 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar 3412D TTA/B - 4 Stroke 12 cylinder internal combustion engine total 1.264 kW / 1.696 hp at 1.800 rpm Builder: Caterpillar Motoren, Kiel - Germany |
|
Propelling system |
2x 1.700 mm Promarin propeller fixed pitch - at 322 rpm |
|
Nozzles |
2x Damen marine components optima nozzle |
|
Gearboxes |
2x Reintjes WAF 464/5.591:1 |
|
Diesel Generators |
1x Caterpillar C-09 dieel generatorset 63,8 kVA - 51 kW / 50 Hz 230/400 Volt - 162 hp |
|
Hydraulic set |
Combined with generator set Catetpillar C-09 |
|
Transfer pumps |
2x VWSI 8020 - 50 m³/h at 4,8 bar for fuel oil and fresh water |
|
Fuel oil separator |
Facet MV-11-AG - 1.200 l/h |
|
Tank capacities |
Fuel oil: 44,60 m³ Fresh water: 35,0 m³ Lubrication oil: 1,50 m³ Dirty oil: 2,00 m³ Bilge water: 1,50 m³ Sewage 4,00 m³ Ballast water: 20,20 m³ |
|
Bollard pull |
23,5 t |
|
Winch |
Large 35 t deck winch |
|
Deck lay out |
Anchor: 2x 225 kg Pool (HHP) Anchor winch: Ridderinkhof, hydraulically driven Deck crane: 1x Crane Helia HLRM 140-4S – SWL 140,0 t deck crane forward |
|
Anchor h / towing winch |
Ridderinkhof TW-H-300 600 m diam. 28,00 mm 300 m diam. 32,00 mm Pull 34 / 6 ton at 6,00 m/min / 24,00 m/min Brakeholding power 40,0 ton first layer Towing hook Mampaey, 45,0 tons SWL Tugger winch Brevini, 8 tons |
|
Accommodation |
Heated and air conditioned living spaces for 6 persons, consisting of two double cabins and two single crew cabins, a combined mess/galley and sanitary facilities |
|
Owner |
MarineCo UK Ltd., The Steading Scotland |
|
Owner as completed |
MarineCo UK Ltd. |
