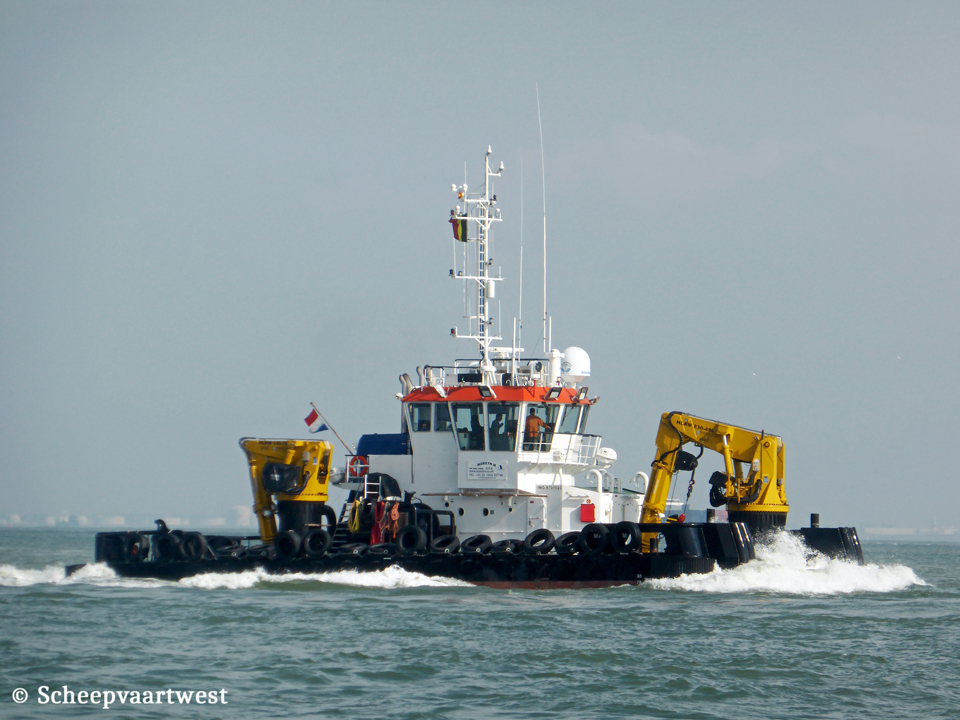

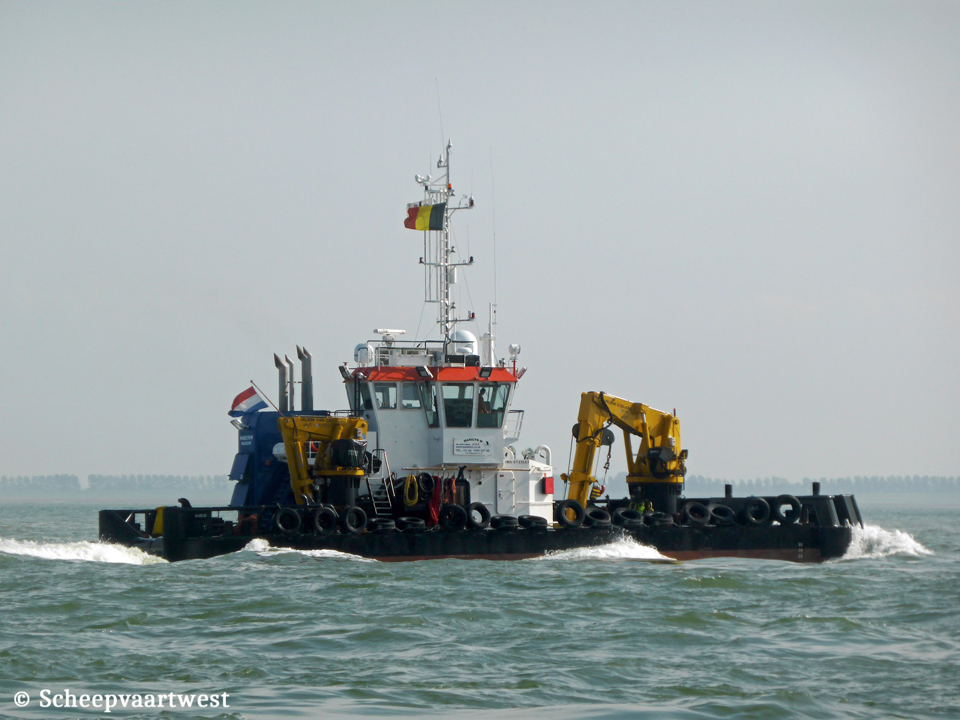

Marilyn M - IMO 9731523

Name

MARILYN M

Type

Tug - Multi purpose ship

Eurocarrier 2611

Main functions

Dredge support, cable laying, anchor handling, barge support, wind farm operations and port and harbour construction

IMO-number

9731523

Call sign

PCFM

Flag

The Netherlands

Port of registry

Maassluis

GT

225 t

NT

76 t

Length

26,48 m overall

23,65 m between perpendiculars

Breadth

11,00 m

Draught

Summer: 2,61 m

Depth

3,45 m

Speed

10,0 knots

Built

2015

Date of completion

20/03/2015

Builder

Neptune Shipyards BV

Aalst

The Netherlands

Yard number

447

Hull material

Steel

Watertight compartments

4

Continuous decks

1

Main engine

2x Caterpillar C32 - 4 stroke 12 cylinder 145 x 162 mm combustion total 1.940 kW / 2.636 hp at 1.800 rpm

Propelling system

Screw propeller solid at 1.800 rpm

Generators

2x Caterpillar C9 diesel generatorsets each 250 kVA - 200 kW - 292 hp / 400 Volt

Bow thruster

250 hp

Bollard pull

33 t

Deck equipment

3x Winches 100 t double drum anchor handling winch

50 t towing winch

15 t Tugger winch

Bow roller

Stern roller

Double push bow

Towing hook/bit

Hydraulic towing pins

Hydraulic shark jaws

Deck flood lights

Deck area

125 m²

Deck load

6,0 t/m²

Tank capacities

Fuel: 107,5 m³

Fresh water: 60,0 m³

Lifting equipment

2x Hydraulic deck cranes:

1x Heila 230 - 4SL crane 25 t, forward

1x Heila 140 - 3SL crane 14 t, aft

Accommodation

Number of persons 12

Number of cabins 3 single & 2 double

Messing facilities

Heated & air-conditioned

Navigation equipment

Magnetic compass

Electronic compass

Radar

(D)GPS

Electronic chart plotter

Echo sounder

Watch keeper alarm

AIS

Navtex

Talkback unit

Speed log

Communication equipment

Cell (GSM) phone

Satellite phone

MF/HF radio

2x VHF radio

Email

Operator

GSS Maine Services

Haven 27

3143 BC Maassluis

The Netherlands

Renamed

09/2022 Neptun Mariner

The Netherlands, Aalst - Call sign: PCFM

Registered owner: Stalenhoek B.V.

Latest data adjustment

22 January 2024
