Westerschelde 05 April 2019 |
|
Name |

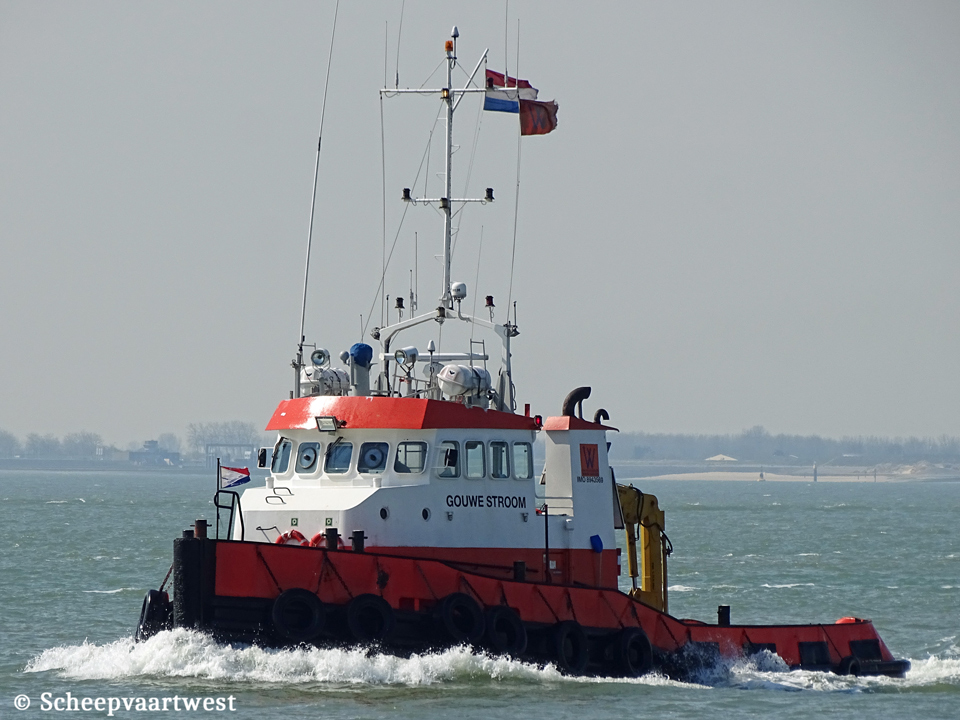

GOUWESTROOM |
|
Type |
Tug - Pusher |
|
Main activities |
Towing (single tow) - Anchor handling - Surveying - Supplying - Dredging with A-frame and Plough - Crew transfer |
|
IMO-number |
8943569 |
|
ENI-number |
02719064 |
|
Call sign |
PDGR |
|
Flag |
The Netherlands |
|
Port of registry |
Harinxveld |
|
GT |
80 t |
|
NT |
24 t |
|
Displacement |
175 t |
|
Length |
20,70 m |
|
Breadth |
6,50 m |
|
Draught |
Min: 2,25 m Max: 2,35 m |
|
Air draft |
6,70 m |
|
Freeboard |
349 mm |
|
Speed |
11,5 knots |
|
Built |
1998 |
|
Date of completion |
03/03/1998 |
|
Builder |
Jac. Den Breejen Hardinxveld The Netherlands |
|
Yard number |
3210 |
|
Hull material |
Steel |
|
Watertight compartments |
6 |
|
Continuous decks |
1 |
|
Main engine |
2x Cummins QSK 19- 4 stroke 6 cylinder 159 x 159 mm combustion engines each 552 kW / 750 hp @ 1.800 rpm Total: 1.104 kW / 1.500 hp |
|
Gearbox |
2x Twin Disc type MG 5202, reduction 5.04:1 |
|
Propellers |
2x Fixed pitch propeller in Kort Nozzle - aft at 350 rpm- diameter 1.500 mm |
|
Generators |
2x John Deere / Perkins each 40 kVA - 32 kW - 44 hp / 220/380 Volt - 50 Hz |
|
Bollard pull |
21,0 t |
|
Deck equipment |
Sormec, type 16 KN/2S hydraulic crane Towing winch (single drum), 300 m., diameter 32 mm steel wire, power 16 / 35 t Stern roller Towing hook, 25,0 t Capstan Push bow Optional: A-frame (with plough), SWL 10,0 t |
|
Free deck space |
42 m² |
|
Deckload |
2,5 t/m² |
|
Tank capacities |
Fuel oil: 35,0 m³ Fresh water: 18,0 m³ Sewage: 2,3 m³ Sludge: 2,0 m³ |
|
Accommodation |
5 persons |
|
Nautical equipment |
Radar Magnetic compass Gyro compass Auto pilot GPS AIS Echo sounder Weatherfax 2x VHF + DSC SSB Radio + DSC Navtex FBB 2x Inmarsat-C EPIRB SART Satcom + GSM |
|
Registered owner |
Van Wijngaarden Marine Services B.V. Buitenweistraat 15 3372 BC Hardinxveld-Giessendam The Netherlands |
|
Latest data adjustment |
06 August 2021 |
