Westerschelde 23 May 2018 |
 |
 |
 |
||
| Westerschelde 23/05/18 | Westerschelde 22/10/16 | Westerschelde 10/06/16 | ||
|
Name |

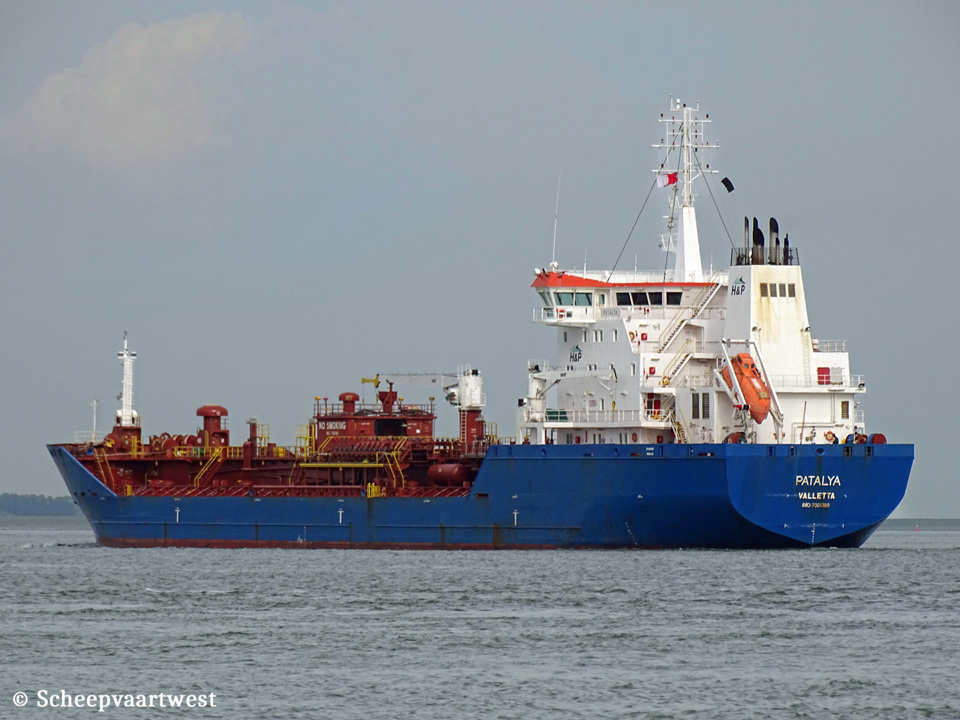

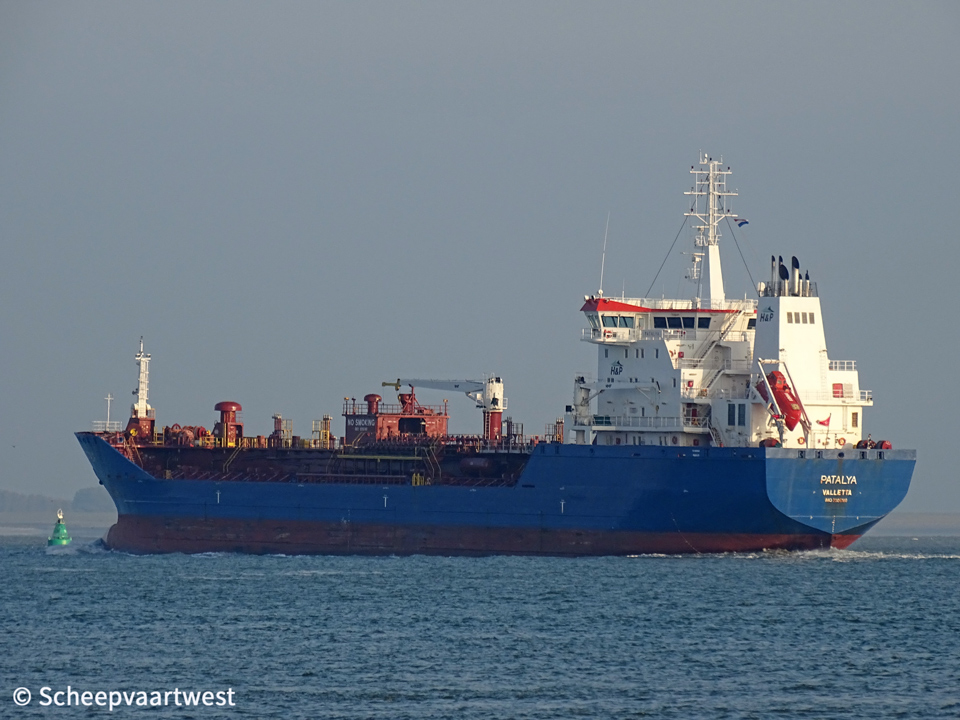

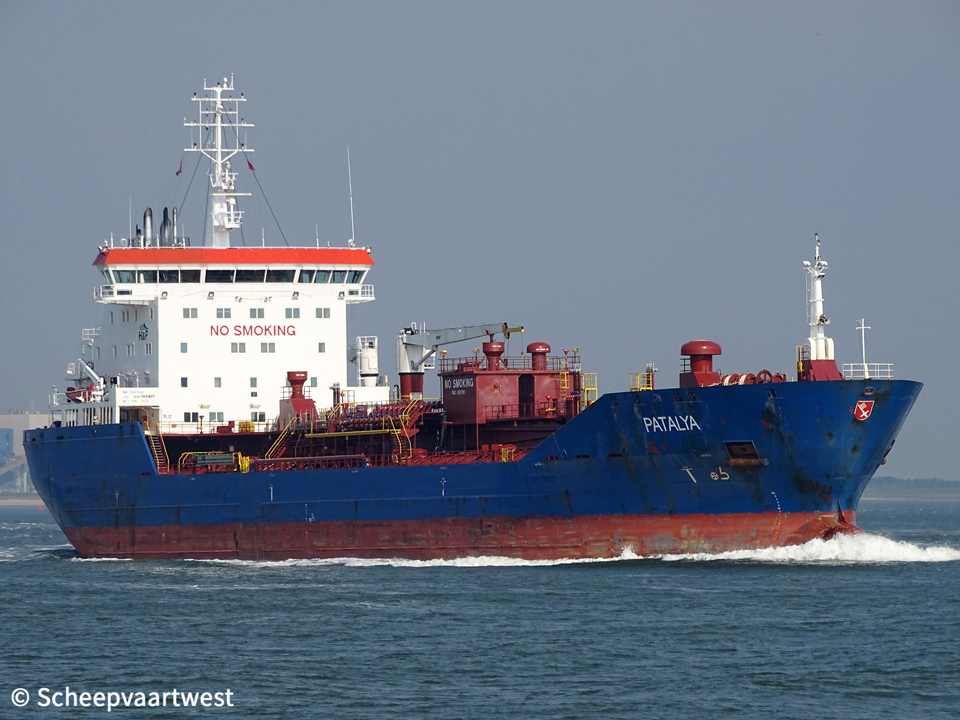

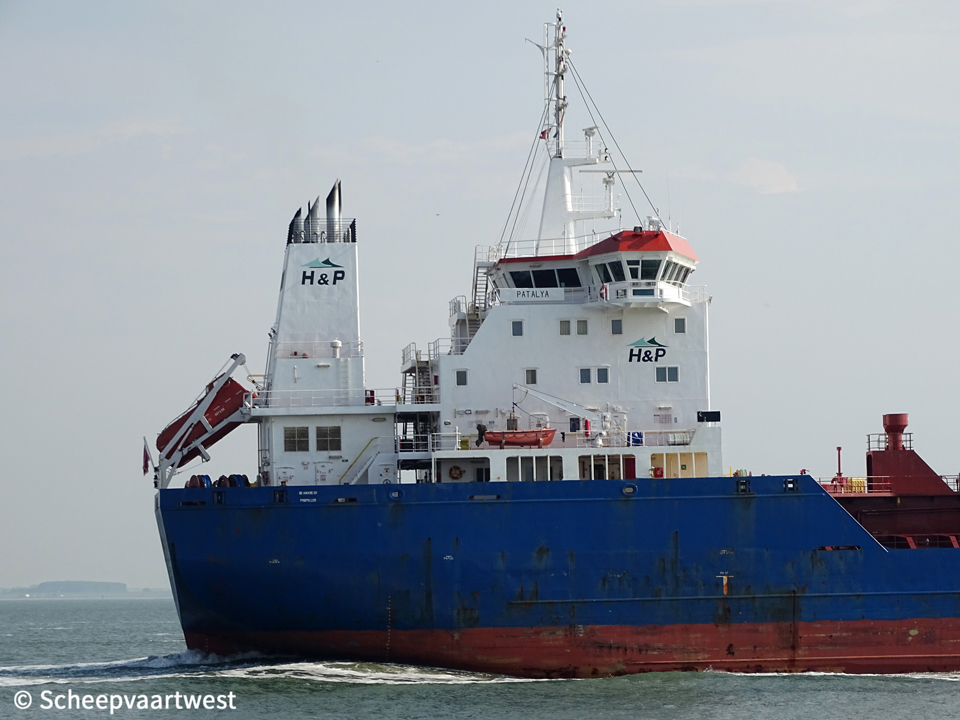

PATALYA |
|
Previous names |
2005 - 03/2005 Patalay 03/2005 - 10/2013 Maersk Newport |
|
Type |
Chemical and oil product tanker |
|
IMO-number |
9305180 |
|
Call sign |
CQEQ5 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
2005 -2021 Malta, Valletta - Call sign: 9HNB9 |
|
GT |
11.935 t |
|
DWT |
Summer: 16.664 t |
|
NT |
5.137 t |
|
Length |
144,17 m overall 133,95 m between perpendiculars |
|
Breadth |
23,03 m extreme |
|
Draught |
Summer: 8,91 m |
|
Keel to mast end |
44,50 m |
|
Depth |
12,40 m |
|
Speed |
Max: 14,8 knots Service: 14,0 knots |
|
Built |
2005 |
|
Keel laid |
24/02/2004 |
|
Launch date |
21/06/2004 |
|
Date of completion |
10/03/2005 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. China |
|
Yard number |
H2310 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6L48/60B - 4 stroke single acting 6 cylinder 480 x 600 mm combustion engine MCR 7.200 kW / 9.789 hp at 500 rpm CSR: 6.300 kW / 8.565 hp Builder: MAN Diesel A/S - Denmark |
|
Propellers |
1x Controllable pitch propeller - aft at 127,0 rpm |
|
Boilers |
1x Auxiliary boiler, oil/gas fired Mission OM 1x Auxiliary boiler, composite Mission OC Builder: Aalborg Industries A/S |
|
Shaft generator |
1x 1.875 kVA |
|
Generators |
2x Wärtsilä W4L20 - 4 stroke 4 cylinder 200 x 280 mm diesel engine each 720 kW connected with generators each 680 kW 1xWärtsilä W6L20 - 4 stroke 6 cylinder 200 x 280 mm diesel engine 1.080 kW connected with generator 1.020 kW Builder: Wärtsilä Finland Oy |
|
Emergency generator |
1x Sisu 634 DSBG diesel generatorset 131 kVA |
|
Bow thruster |
1x Tunnel thruster 750 kW / 1.020 bhp, forward |
|
Number of cargo tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 98% |
18.868,7 m³ |
|
Slop tank capacity |
Total: 570 m³ |
|
Pumps |
12x Cargo pumps each 300 m³/h |
|
Tank capacities |
Fuel IFO: 580,3 m³ MGO: 74,8 m³ Ballast: 8.179,8 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 58 mm |
|
Crew size |
16 |
|
Manager |
Harren Tanker Management GmbH & Co. KG Hermann-Hollerith-Straße 10 28355 Bremen Germany |
|
Registered owner |
43. Phoenix Pct Ug (Haftungsbeschränkt) & Co. Kg Ms "Saturn" |
|
Previous owner |
Harren & Partner Schiffahrts GmbH & Co. KG MS "PATALYA" |
|
Latest data adjustment |
01 February 2020 |
